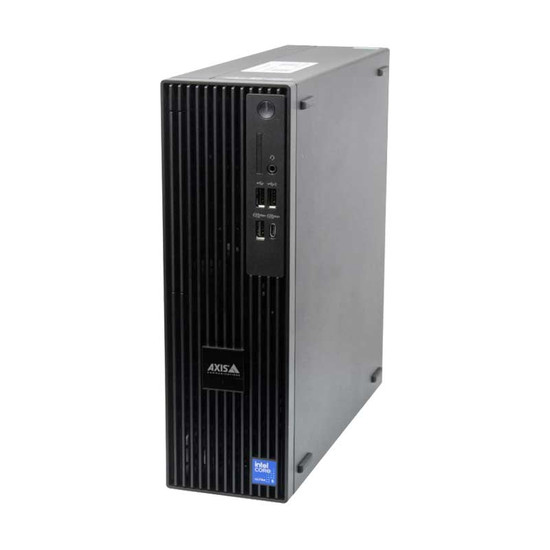

This powerful workstation is designed for reliable operation with AXIS Camera Station Pro video management software. It can be used as a viewing client when combined with AXIS S12 and S22 series recorders, but it additionally works as a server when connected with AXIS S30 and S40 series recorders, offering centralised processing power and extra scalability. Once connected, operators can securely access live and recorded video for daily monitoring and system management. Playback of up to 36 camera channels is possible across up to four 4K monitors ensuring clear and detailed viewing, while the small form factor makes it well suited to desks, control rooms and local monitoring points. In addition to video management, this workstation includes 10 AXIS Audio Manager Pro licences so you can easily set up and access AXIS network audio devices.
Easily access live and recorded high-definition video, export footage and manage alarms with AXIS Camera Station VMS software. The device comes with the latest version preinstalled, so you can get started straight away. The AXIS Recorder Toolbox features an installation wizard, toolbox and supporting materials to ensure trouble-free setup, whilst enabling access to the latest software updates.
Workstation |
|
| Form factor: | Tower |
| Licenses: | 10 AXIS Audio Manager Pro licences included and tied to the hardware. Can be upgraded with additional licences (sold separately) |
| System scalability: | Qualified for 200 simultaneous audio streams using AXIS Audio Manager Pro. |
Hardware |
|
| Processor: | Intel® CoreTM Ultra 5 Processor 235 |
| Memory: | 16 GB (2x 8 GB) |
| Operating system drive: | 256 GB SSD |
| Graphics card: | Nvidia® A400 |
| Power: | 360 W Platinum
(100–240 V AC, 5 A, 50/60 Hz) |
| Power consumption: | Typical: 110 W (375.3 BTU/h)
Maximum: 160 W (545.9 BTU/h) |
| Connectors: | Front side:
1x Universal audio jack 2x USB 2.0 1x USB 3.2 gen 2x2 USB-C 1x USB 3.2 gen 2x1 Rear side: 3x DisplayPortTM 1x USB 3.2 gen 2x1 USB-C 3x USB 3.2 gen 1x1 2x USB 2.0 1x 1 GbE RJ45 4x Mini DisplayPortTM 1x Power connector |
Video |
|
| Video streaming: | Live view:
1 stream x 4K at 30 fps 4 split x 1080p at 30 fps 9 split x 1080p at 30 fps2 9 split x 720p at 30 fps 16 split x 450p at 15 fps 25 split x 450p at 15 fps 36 split x 360p at 15 fps Supports any combination for up to two 4K monitors. Playback: High-speed playback may affect video performance. Playback resolution matches the recording resolution and is not adjusted to the monitor’s resolution. |
Cybersecurity |
|
| Edge security: | Support for encrypted operating system drive and
recording drive
FIPS 140-2 level 2 certified Trusted Platform Module (TPM 2.0) Secure Boot |
General |
|
| Operating system: | Microsoft® Windows® 11 IoT Enterprise LTSC 2024
Built-in operating system recovery: yes |
| Operating conditions: | 10°C to 35 °C (50°F to 95°F)
Humidity 20–80% RH (non-condensing) |
| Dimensions: | 303 x 95 x 293 mm (12 x 3,7 x 11.5 in) |
| Weight: | 1.2 kg (2.6 Ibs) |
| Included accessories: | 4x Mini DisplayPortTM to DisplayPortTM adapters
Wall plug power cord |
| Optional accessories: | Axis joysticks and control boards |
| Services: | Next Business Day onsite support |
| Hardware warranty: | 5-year warranty |
Axis Communications | 03426-003
