Axis Communications | 02807-003

Axis Camera Station S2208 Mk II recorder with 8 channels, 8 ACS Pro core licences, integrated PoE switch and 4TB internal storage

£2,521.00

£3,025.20 inc VAT

Best Price Guarantee

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Featuring 8 PoE channels and preloaded with Axis Camera Station Pro licences, this standalone NVR appliance is ideal for easy recording of video from Axis IP devices. It includes a PoE switch and 4TB internal storage for a full end-to-end solution.

Includes 8 Axis Camera Station Pro Core Device NVR licences
Supports up to 8 Axis IP cameras
Integrated 8-port PoE switch
4TB internal storage included with one additional HDD bay
2 x HDMI ports for dual local monitor display up to 8K
Axis 5-year warranty

More details

Overview of the Axis Camera Station S2208 Mk II recorder

All-in-one standalone desktop recording solution
Preloaded with 8 Axis Camera Station Pro software licences
Features 8 channels for Axis IP cameras
4TB internal storage for storing footage
Integrated 8-port PoE switch, HDMI and USB ports
Built-in decoding for live viewing (supports 2x 4K or 1x 8K monitor)

Ideal for smaller installations with limited space, this all-in-one recording device is preconfigured with 8 Axis Camera Station Pro software licences, ready to be used straight out of the box. The integrated PoE switch supports network connection and power for up to 8 cameras directly connected. View live and recorded video in up to 4K UHD resolution at 128 Mbps throughput for smooth and detailed footage. Scale your solution with flexible storage options, featuring 4TB preinstalled internal storage and one empty bay supporting an additional HDD if required. Also, you can expand your system further using Axis S30 Recorders for additional camera channels.

Simply connect dual local display monitors via the 2 x HDMI ports along with peripheral accessories such as a mouse and keyboard (not included) via its 4 x USB ports. The compact form factor means it can easily fit onto desktops for a space-saving solution, suitable for control desks and retail offices. Included rack ear accessories means the device can also be installed in rack units.

Further cameras can be added (with additional Axis Camera Station Pro licenses) up to a total throughput of 128Mbps. Axis Access Control and Audio devices are also fully supported.

Video Management

Easily access live and recorded high-definition video, export footage and manage alarms with Axis Camera Station Pro VMS software. The device comes with the latest version preinstalled, so you can get started straight away. The Axis Recorder Toolbox features an installation wizard, toolbox and supporting materials to ensure trouble-free setup, whilst enabling access to the latest software updates.

Video Analytics

As the device runs Axis Camera Station software, it fully supports the complete range of Axis analytics technologies, such as Axis Object Analytics for detecting and classifying humans and vehicles. Receive alerts to events detected by supported Axis cameras, enabling rapid response to potential incidents as well as developing valuable insights into business performance.

Built using powerful components, the unit supports AI applications such as Axis' Smart Search 2. This advanced forensic search feature allows you to easily find objects of interest captured in recordings by setting several filters such as vehicle type and clothing colour to rapidly retrieve specific footage.

Accessories

Included:

Axis Camera Station S2208 Mk II recorder

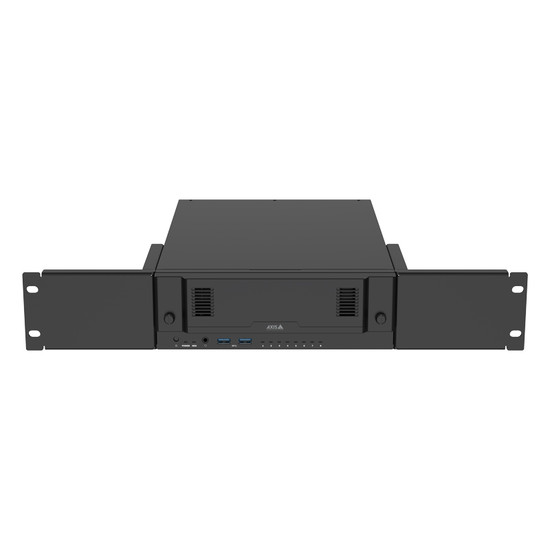

Rack ears
Power adapter

Optional:

WD Purple Surveillance Grade Hard Drive
Axis TS2901 vertical appliance stand
Axis desktop terminals
Axis Ethernet surge protector

Key technical features of the Axis Camera Station S2208 Mk II recorder

Recorder
Form factor:	Desktop
Number of cameras:	8
Licences:	8 AXIS Camera Station Pro Core Device NVR licenses included and tied to the hardware. Can be upgraded with additional licenses (sold separately).
System scalability:	Qualified for up to 8 video channels and 16 doors simultaneously with a total recording rate up to 128 Mbps. Can be scaled with more devices when using AXIS S30 Recorder Series. Qualified for up to 1,000 doors with access control only. Tested with: 10 live view Windows clients 1 client performing heavy playback or scrubbing operations
Processor:	Intel® CoreTM i3
Storage:	Surveillance Class HDD Total HDD slot: 2 Free HDD slot: 1 Out-of-the-box storage: 4 TB (1x4 TB)
Switch:	8 ports integrated, 135 W total power budget Power over Ethernet (PoE) IEEE 802.3at Class 4
Power:	Max 270 W, 135 W PoE dedicated 100 - 240 V AC, 3.5 A, 50/60 Hz 54 V DC, 5 A External power adapter
Power consumption:	Excluding power consumption from connected devices) Typical power consumption: 75 W Maximum power consumption: 95 W
Connectors:	Front side: 2x USB 3.2 1x Universal audio jack Rear side Switch: 8x PoE RJ45 1 Gbps 1x RJ45 1 Gbps Rear side Server: 1x RJ45 1 Gbps 2x USB 2.0 2x HDMI 2.1
Included accessories:	Rack ears, power adapter
Video
Video streaming:	Live view in Windows client: 1 stream x 4K at 30 fps 4 split x 1080p at 30 fps* 9 split x 720p at 30 fps* 16 split x 360p at 15 fps 25 split x 360p at 15 fps 36 split x 360p at 15 fps Any combination of the above for up to two 4K monitors, except for configurations marked with , where only one monitor can display streams at 30 fps. Supports one 8K monitor: 1 stream x 8K at 20 fps Currently only supports 1 stream without split views. Live view in web client (local or remote): 1 stream x 8K at 30 fps 1 stream x 4K at 30 fps 4 split x 1080p at 30 fps 9 split x 720p at 30 fps Any combination of the above on one 8K and one 4K monitor, except for the configuration marked with *, where only one monitor can display streams at 30 fps. Larger splits will affect server CPU performance. Maximum of 18 streams across all web clients, depending on stream profile. Playback in Windows client: Supports the same split scenarios as live view Recommended one monitor only due to disk load when playing back multiple streams with high video profiles. Playback at high speeds can affect video performance. Playback in web client: (local or remote): 1 stream up to 8K at 30 fps
General
Operating system:	Microsoft® Windows® 11 IoT Enterprise LTSC 2024 Operating system recovery: yes Operating system drive: 256 GB SSD
Operating conditions:	0°C to 40 °C (32 °F to 104 °F) Humidity: 10–90% RH (non-condensing
Dimensions:	330 x 230 x 78 mm (13 x 9.1 x 3.1 in)
Weight:	5.8 kg (12.8 lb)
Hardware warranty:	Recorder and hard drive: 5-year warranty

Product data sheet

Installation Guide

User Manual

Dimensions
