Overview of the AXIS S4000 recording server
- Internal storage up to 32 TB, providing ample space for extended video retention
- Records up to 16 video sources simultaneously, suitable for mid-sized or expanding sites
- Total recording bitrate up to 256 Mbit/s ensures high-quality smooth video capture
- Supports RAID 0, 1, 5, 6, 10 for reliable redundancy and continuous recording
- Optimised for AXIS Camera Station Edge or Pro for centralised management, live viewing, and easy playback

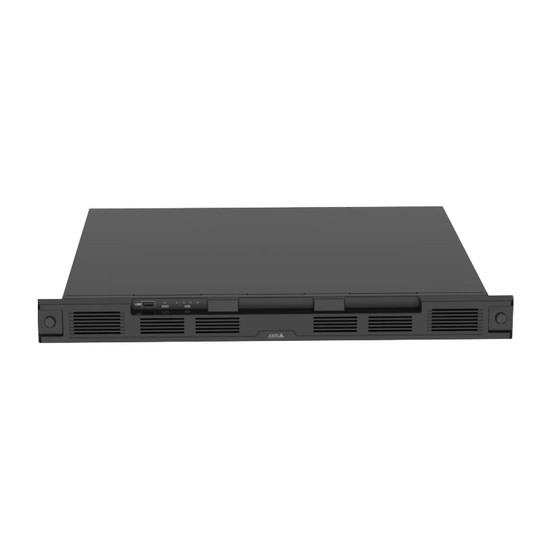

The AXIS S4000 is a flexible 1U rack mounted recording server designed to support new installations or expand storage in existing sites. With up to 32 TB surveillance-grade HDD capacity, it can store data for up to 16 video channels and offers multiple RAID levels (0, 1, 5, 6, 10) for reliable redundancy and uninterrupted recording. Fully optimised for AXIS Camera Station software, it seamlessly integrates into existing video management systems for scalable, secure, and easy-to-manage storage. The device also features 2 x USB ports for quickly exporting video to USB drives for investigation. Ideal for sites looking to enhance storage without replacing existing infrastructure.
Video Management
Store and manage video seamlessly with Axis Camera Station Edge or Pro software. The recorder integrates with your existing network enabling straightforward storage expansion for recorded video. It comes ready for integration, with supporting tools and resources to ensure smooth setup and access to the latest software updates and features from AXIS.
Accessories
- Recorder
- Rack rails
- Front cover
- Rubber feet
- Installation guide
- Power cord
- Screws
Key technical features of the AXIS S4000 rack recorder
Hardware |
|
| Form factor: | 1U rack mounted |
| Processor: | i.MX 8QuadMax |
| Storage: | Hot swappable Surveillance Class HDD
Total HDD slots: 4 Free HDD slots: 0 8 TB Out-of-the-box storage: 6 TB after RAID 5 Out-of-the-box capacity without RAID: 8 TB (4x2 TB) 16 TB Out-of-the-box storage: 12 TB after RAID 5 Out-of-the-box capacity without RAID: 16 TB (4x4 TB) 32 TB Out-of-the-box storage: 24 TB after RAID 5 Out-of-the-box capacity without RAID: 32 TB (4x8 TB) |
| RAID: | Factory RAID level: 5
Supported RAID levels: 0, 1, 5, 6, 10 |
| Power consumption: | 100–240 V AC, 50–60 Hz
Typical power consumption 8 TB: 27 W (92.1 BTU/h) 16 TB: 31 W (105.8 BTU/h) 32 TB: 36 W (122.8 BTU/h) Maximum power consumption 8 TB: 30 W (102.4 BTU/h) 16 TB: 32 W (109.2 BTU/h) 32 TB: 37 W (126.2 BTU/h) |
| Noise level: | Idle: 22 dB
Typical: 35.5 dB (at ambient temperature) Maximum: 41 dB |
| RAID: | Factory RAID level: Not configured
Supported RAID levels: 0, 1 |
| Connectors: | Front side:
1x USB 3.0, supported USB class: Mass Storage Rear side: 1x AUX RJ45 1 Gbps 1x LAN RJ45 1 Gbps 1x LAN SFP 1 Gbps 1x USB 2.0, supported USB class: Mass Storage 1x power connector |
Video |
|
| Recording: | Qualified for recording up to 16 video sources with a total recording rate up to 256 Mbit/s |
| Video compression: | H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/
HEVC)
Depending on camera support No encoding, decoding, or transcoding |
| Resolution: | Supports all camera resolutions |
| Frame rate: | Supports all camera frame rates |
Audio |
|
| Audio streaming: | One-way audio recording depending on camera support |
| Audio encoding: | AAC
Depending on camera support |
System Integration |
|
| Video management systems: | Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and selected video management software from Axis’ partners |
| Event conditions: | Device status: above/below/within operating
temperature, fan failure, IP address blocked/removed,
live stream active, network lost, new IP address, system
ready
Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: manual trigger, virtual input is active RAID status: RAID degraded/failed/online/syncing Scheduled and recurring: schedule |
| Event actions: | LEDs: flash status LED, flash status LED while the rule is
active
Notification: HTTP, HTTPS, TCP and email Security: erase configuration SNMP trap messages: send, send while the rule is active |
| Event triggers: | Hard drive error, hard drive temperature warning, CPU temperature warning, fan error, RAID warning |
Cybersecurity |
|
| Edge security: | Software: Signed OS, digest authentication and OAuth
2.0 RFC6749 Client Credential Flow/OpenID
Authorization Code Flow for centralized ADFS account
management, password protection, Axis Cryptographic
Module (FIPS 140-3 level 3), system-on-chip security
(TEE)
Hardware: Axis Edge Vault cybersecurity platform Secure keystore: secure element (CC EAL 6+, FIPS 140-3 Level 3) Axis device ID, secure boot, encrypted filesystem (AESXTS-Plain64 256bit) |
| Network security: | IEEE 802.1X (EAP-TLS)2 , IEEE 802.1AR, HTTPS/HSTS2 , TLS v1.2/v1.32 , Network Time Security (NTS), X.509 Certificate PKI |
General |
|
| Supported devices: | Axis devices with firmware 5.50 or later AXIS Companion mini cameras and third-party cameras are not supported |
| Casing: | Steel casing
Colour: black NCS S 9000-N |
| Form factor: | Rack 1U
Compatible with EIA-310 racks |
| Operating conditions: | Temperature: 0 °C to 45 °C (32 °F to 113 °F)
Humidity: 10–85% RH (non-condensing) |
| Weight: | 8 TB: 9.08 kg (20 lb)
16 TB: 9.22 kg (20.3 lb) 32 TB: 9.98 kg (22 lb) |
| Weight: | 8 TB: 9.08 kg (20 lb)
16 TB: 9.22 kg (20.3 lb) 32 TB: 9.98 kg (22 lb) |
| Included accessories: | Recorder, rack rails, front cover, rubber feet, installation guide, power cord, screws |
| Software support: | New feature development until 2028 (AXIS OS Active
12 and 13)
Support until 2033-12-31 (AXIS OS LTS 2028) |
| Hardware warranty: | 5-year warranty |
