Axis F9111-R Mk II main unit for use with 1 x Axis F series sensor, up to 4K UHD resolution, Lightfinder, Forensic WDR, audio support and Axis Object Analytics

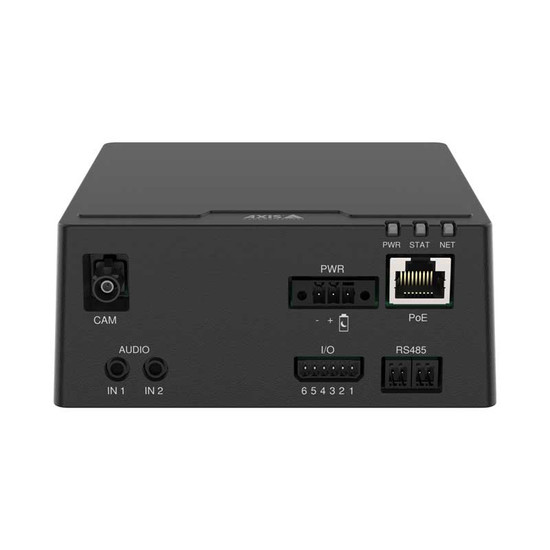

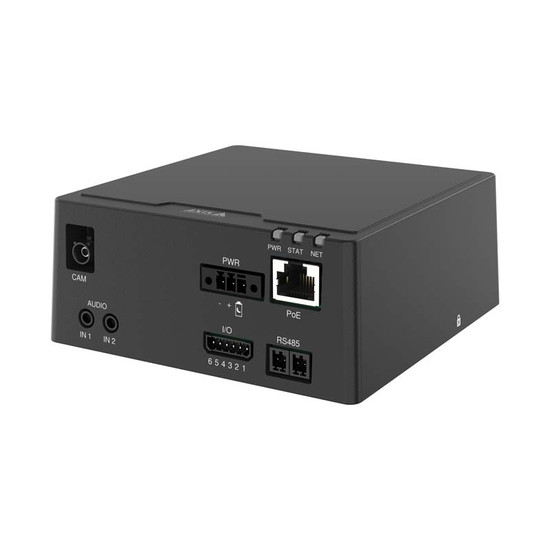

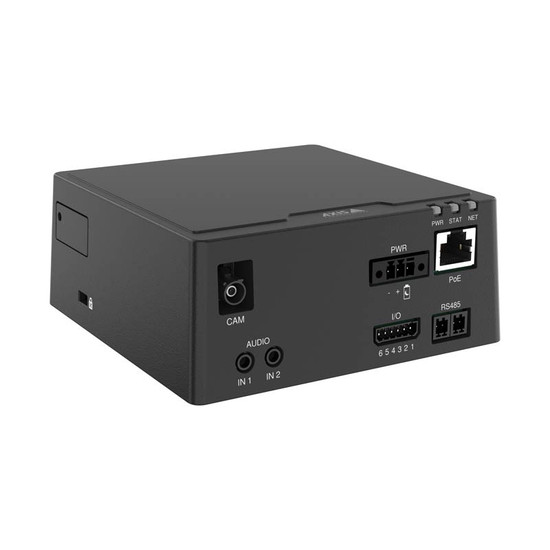

Overview of the Axis F9111-R Mk II main unit

• 1-channel modular main unit for Axis F-series modular sensors
• Capture detailed video in 4K UHD video at 30 fps or 720p at 180 fps
• Rugged design built to withstand shock and vibrations, ideal for factories and vehicles
• Lightfinder and Forensic WDR tackles challenging lighting
• Detect, classify and count people and vehicles with powerful AI video analytics

The Axis F9111-R Mk II is ideal for applications with limited space or those requiring unobtrusive monitoring. It supports one 2nd generation F series sensor and features FAKRA connectors, ensuring rugged shock and vibration resistance making it suitable for use in vehicles or near machinery. The unit delivers up to 4K UHD at 30 fps or 720p at 180 fps for high-detail capture in fast-paced environments. With Lightfinder and Forensic WDR, it excels in low light. Modular sensors (from 1080p to 5MP) and up to 30m cable flexibility allow versatile placement. Powerful AI-driven video analytics accurately detect, classify and count persons and vehicles. Integration of an external microphone and IP speaker enables two-way audio, supporting communication and audio-triggered analytics.

This unit is designed for use with one of the Axis F series sensor modules. For more details on the lenses available, see the Axis lens table below.

Please note: cables for each sensor are sold separately.

Feature	F2115-R	F2135-RE	F2105-RE	F4105-LRE	F7225-RE	F4105-SLRE	F2107-RE	F2137-RE
Horizontal angle of view	56° to 107°	185° fisheye	108°	48° - 148° (exchangeable lenses)	97°	48° - 148° (exchangeable lenses)	110°	185° fisheye
Lens	Varifocal	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Min illumination	0.1 Lux	0.1 Lux	0.1 Lux	0.3 lux	0.3 lux	0.3 lux	0.25 lux	0.25 lux
Resolution	1080p	1080p	1080p	1080p	1080p	1080p	5MP	5MP

Video Analytics

This main unit is equipped with and supports a range of advanced analytics to keep users aware of important activity in the viewing area. Axis Object Analytics provides edge-based identification and classification of humans and vehicles, enabling object-specific event triggers and alarms to be set for more nuanced detection with fewer false alerts. Axis Audio Analytics classifies screams and shouts when an external microphone is connected to the device.

This camera also supports other Axis and third-party applications, enabling greater functionality for the camera to meet more specialist demands.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (not included)
• Axis Camera Station Software
• Axis Camera Station NVRs
• Milestone XProtect video management software
• Milestone Arcules VSaaS
• Morphean Cloud CCTV

Example Use Cases

• ATMs and cash-handling areas such as bank tellers and cashier desks
• Door-entry systems, ingress and egress points, fire escapes, vending machines
• Rugged monitoring in vehicles such as buses and delivery vans
• High-speed monitoring of production lines in factory settings

Accessories included

• Main unit
• Installation guide

Key technical features of the Axis F9111-R Mk II main unit for an Axis F series sensor
