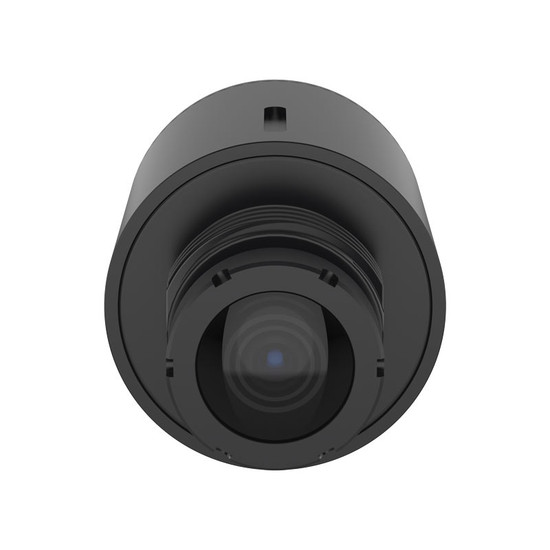

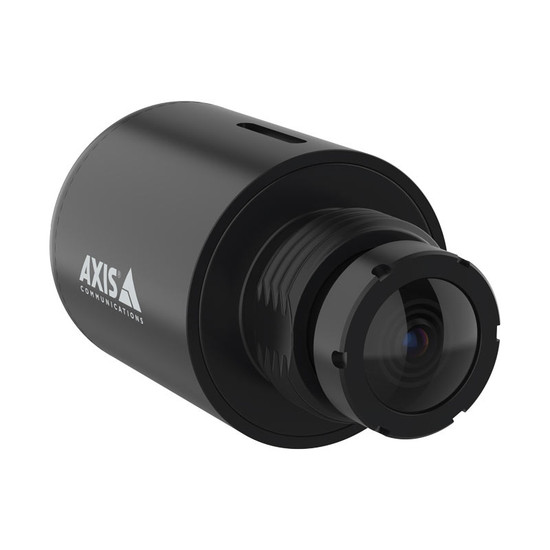

Compatible with the Axis F91 series main units, this outdoor-ready fixed lens sensor provides wide horizontal views and supports advanced imaging technologies, ideal for monitoring in confined areas
Please note: this sensor unit is designed for use with the Axis F9114 and Axis F9111 main units and is not a standalone network camera.
For use with Axis F91 main units, this modular sensor enables discreet installation suitable for both indoor and outdoor use. Capture video in 5MP video resolution for crisp and clear images, whilst support for Lightfinder and Forensic WDR ensures enhanced clarity in difficult lighting circumstances. It offers a horizontal viewing angle of 110° for wide area coverage, even when installed in confined areas.
This rugged sensor can withstand temperatures of between -40°C and 70°C – making it reliable for areas prone to extreme temperature changes. To aid its versatile and straightforward installation, there are a range of accessories available to facilitate wall, ceiling, parapet and pole mounting. Furthermore, the sensor can be situated up to 30m away fom the main unit, where configuration takes place via browser to allow video and analytics management for each connected sensor.
Please note: the required cables for this sensor to connect to the main unit are sold separately.
Included:
Camera |
|
| Environment: | indoor & outdoor |
| Type: | Modular sensor for use with AXIS F91 main units |
| Sensor: | 1/2.78” progressive scan RGB CMOS
Pixel size 2.0 µm |
| Lens: | Fixed focal, 2.8 mm, F2.2
Horizontal field of view: 110° Vertical field of view: 80° Minimum focus distance: 0.5 m (1.6 ft) M12 mount, fixed iris |
| Power: | Typical 1 W, max 1.8 W |
Imaging |
|
| Resolution: | Maximum 2592x1944 |
| Frame rate: | See AXIS F91 main units datasheet |
| WDR | Forensic WDR: Up to 120 dB depending on scene |
| Day/night: | Fixed IR-cut filter |
| Minimum illumination: | Colour: 0.25 lux at 50 IRE, F2.2 |
General |
|
| Connectors: | SMA connector |
| Dimensions: | 59 mm (2.3 in)
ø 29.8 mm (1.2 in) |
| Weight: | 54 g (0.1 lb) |
| Casing: | IP66-, IP67-, IP6K9Ka, and NEMA 4X-rated
Aluminum casing Colour: black NCS S 9000-N |
| Operating temperatures: | Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Humidity: 10–100% RH (non-condensing) |
| Warranty: | 5-year |
Axis Communications | 02639-001
Axis Communications | 02641-001
Axis Communications | 02640-001
Axis Communications | 02869-001
