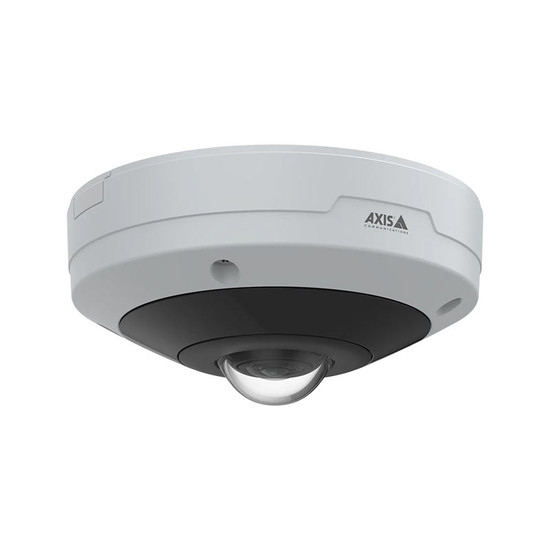

Offering complete 180°/360° overviews in up to 6MP resolution, this affordable hemispheric IP camera uses the latest sensor technology from AXIS to provide high-quality images with no blind spots. The camera-based dewarping produces clear, natural views, and operators can use digital PTZ to focus on specific areas for further investigation. Forensic WDR and Lightfinder technology ensures excellent clarity and full-colour video in low light and high-contrast scenes. In complete darkness, individual OptimizedIR LEDs provide monochrome footage up to 20m range in full 360°.
The camera offers next-generation video analytics for faster object detection and more accurate event analysis. Flexible mounting options means it can be mounted directly to walls and ceilings with the included mount, and runs over PoE for reduced installation costs.
AXIS Object Analytics (AOA) reliably detects, classifies, and counts people and vehicles, processing video on the edge for faster alerts. With a deep learning processing unit (DLPU), it reduces false alarms by filtering irrelevant motion. Configure up to 10 virtual rules like line crossing and zone entry to boost awareness. Objects are marked with colour-coded boxes, visible in the camera and management system. Built-in AXIS Image Health Analytics alerts if the image is obstructed or tampered with.
This camera also supports other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
See below for available recording and video management options for this camera:
Flexible and versatile, this hemispheric IP dome camera is ideal for detailed overviews in environments such as:
Camera |
|
| Environment: | indoor/outdoor |
| Type: | Hemispheric fisheye |
| Sensor: | 1/1.16” progressive scan RGB CMOS
Pixel size 2.0 μm |
| Lens: | Focal length: 1.7 mm, F2.0
Horizontal field of view: 185° Vertical field of view: 185° Minimum focus distance: 0.1 m (0.3 ft) Fixed iris, IR corrected |
| Day/night: | Automatic IR-cut filter |
| Minimum illumination: | Colour: 0.08 lux at 50 IRE, F2.0
B/W: 0 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| IR illumination: | OptimizedIR with power-efficient, long-life 850 nm IR
LEDs
Range of reach 20 m (65 ft) or more depending on the scene |
Imaging |
|
| Resolution: | 2464x2464 |
| Frame rate: | 6 MP 25/30 mode: 25/30 fps (50/60 Hz)
6 MP 50/60 mode (WDR off): 50/60 fps (50/60 Hz) 6 MP multi stream: 20/20 fps with 360 overview and 4 dewarped streams |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG
Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, compression, mirroring, dynamic text and image overlay, overlay widget, privacy masks, target aperture |
| Image processing: | Axis Zipstream, Forensic WDR, Lightfinder, OptimizedIR |
| Installation aids: | Digital roll |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Video Motion Detection Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, crossline counting, occupancy in area, tailgating detection, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Image Health Analytics: | Detection settings:
Tampering: blocked image, redirected image Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: vehicle color, upper/lower clothing color, bag, confidence, position |
Video |
|
| Video compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile AV1 Motion JPEG |
| On-camera recording: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-9 |
| Audio: | Input and output through portcast technology accessories or edge-to-edge pairing. |
| Power: | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4,
max 16.7 W, typical (heater off, IR off) 7.1 W
Features: dynamic power mode, power meter |
| Connectors: | I/O: 4-pin 2.5 mm terminal block
Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| I/O functionality: | 1 digital/supervised input and 1 output 12 VDC output, max load 25 mA |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the product datasheet. |
| Weight: | 858 g (1.9 lb) |
| Casing: | IP66-, NEMA 4X- and IK10-rated
Polycarbonate hard-coated dome Aluminium Colour: white NCS S 1002-B Repaintable skin cover accessory |
| Operating temperatures: | Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Humidity: 10–100% RH (condensing) |
| Warranty: | 5-year |
Security |
|
| Network protocols: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure keystore: Secure element (CC EAL 6+, FIPS 140- 3 Level 3), system-on-chip security (TEE) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3 , IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3 , TLS v1.2/v1.33 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
