Milestone Systems | HVS150D-4TB-GPU
Milestone Husky IVO 150D viewing station with 256GB SSD, Intel Pentium Gold CPU, NVIDIA T400 GPU and 1 x 4TB HDD internal storage
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Optimised for Milestone XProtect, this viewing station allows swift and seamless access to live and recorded video footage via the Smart Client. It comes preinstalled with all necessary software for rapid setup and supports all versions of XProtect.
- Viewing station for the Milestone XProtect Smart Client
- Requires a pre-licenced Milestone XProtect server system
- Equipped with NVIDIA T400 graphics card
- Includes 1 x 4TB HDD for archiving footage
- Compact design ideal for small to medium installations
- 5-year NBD warranty (includes HDD)
Overview of the Milestone Husky IVO 150D Viewing Station
- Optimised for Milestone XProtect for swift and easy access to live and recorded video
- Compact desktop form factor ideal for small to medium-sized installations
- Designed to be used with pre-licenced Milestone XProtect server systems
- Equipped with high-performance NVIDIA T400 graphics card
- Includes 1 x 4TB HDD internal storage for storing crucial footage
The Milestone Husky 150D viewing station is a compact, yet powerful workstation optimised for use with Milestone XProtect server installations, enabling swift and easy access to live and recorded video via the Milestone Smart Client. Designed to be used with pre-licenced Milestone server systems, it comes preloaded with the necessary Milestone Smart Client to support all versions including Express+, Professional+, Expert and Corporate.
The Milestone Husky IVO series of appliances are built by Milestone Systems using Dell Technologies hardware expertise and Intel's processing power to achieve high quality, performance and reliability.
Workstation
This reliable and highly optimised workstation comes fitted with an Intel Pentium Gold processor for rapid data processing and a Solid-State Drive (SSD) for greater performance. The included NVIDIA T400 GPU delivers high throughput for quickly rendering consistent high-resolution live video at high frame rates. Display multiple camera views by connecting up to 2 viewing monitors directly to the 3 x Mini DisplayPort 1.4 attached to the graphics card (see table below).
Furthermore, 13 x USB ports allows the use of peripheral accessories such as a mouse, keyboard or joystick systems for efficient navigation of camera channels. Local storage comes in the form of a preinstalled 4TB HDD for archiving essential footage when required. The 3.5mm audio connection provides the ability to listen in to live or recorded video for greater scene awareness.
Recommended Usage
For smooth and consistent performance, the overall recommendation is to use one monitor with up to 4 x 4 simultaneous streams displaying footage in 1080p HD resolution up to 25 fps. Streams in lower frame rates may result in the workstation being able to support more simultaneous streams.

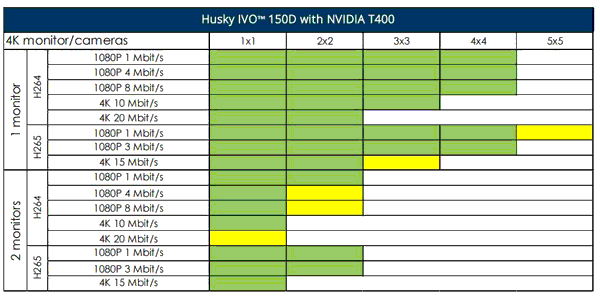

Tested at 25 fps per stream, the chart below shows fully working configurations in green. Yellow indicates configurations where users may experience some streams dropping below the number of acceptable frames.
Installation
The compact desktop form factor means this unit can be installed neatly in tight areas where space is limited. As Milestone XProtect comes preinstalled, integration is effortless with the Husky Assistant automatically choosing the applicable version of XProtect for you, and fetching the latest versions online if connected to the internet.
Please note: This workstation is designed for use as a viewing client alongside Milestone XProtect VMS. It is not to be seen or used as a server to run Milestone XProtect on.
Back To TopKey technical features of the Milestone Husky IVO 150D viewing station
Hardware |
|
| Form factor: | Desktop small form factor |
| CPU: | Intel® Pentium® Gold G7400 3.7GHz 6M Cache
(2 Performance Cores, 4 Threads) 46 W |
| GPU: | NVIDIA T400 |
| RAM: | 16 GB DDR4 (2 x 8 GB) |
| Operating system (OS): | Windows 10 IoT Enterprise 2021 LTSC Value |
| VMS/OS storage: | 256 GB (SSD M.2 PCIe NVMe) |
| Number of hard drives: | 1 x 3.5" (internal) |
| Raw storage (gross): | 4/8/12/16 TB
(Dell Enterprise Grade 24/7 Drives) |
| RAID controller & support: | No |
| Display ports: | 3 x Mini DisplayPortTM 1.4 with latching mechanism on NVIDIA T400 Graphics Card. (Connect the viewing station monitors directly to NVIDIA T400 Outputs and not to the ports on the chassis) |
| Network interface: | 1 x 1 GbE (RJ45) + 1 x 2.5 GbE (RJ45) |
| Available PCIe slots and card fit: | - 1 x PCIe x16 Gen 4, half-height (Occupied by NVIDIA T400 Card)
− 1 x PCIe x4 Gen 3, half-height (Occupied by 2.5GbE Ethernet Card) |
| Archiving to external NAS: | Yes, through LAN |
| Credential and key encription: | Trusted Platform Module (TPM 2.0) |
| Redundant power supply: | No |
| Remote management: | No |
| USB: | − 1 x USB 2.0 port with PowerShare (front)
− 1 x USB 2.0 port (front) − 1 x USB 3.2 Gen 2 port (front) − 1 x USB 3.2 Gen 2x2 Type-C port (front) − 3 x USB 3.2 Gen 1 ports (rear) − 3 x USB 3.2 Gen 2 port (rear) − 3 x USB 2.0 ports with Smart Power On (rear) |
General |
|
| Hardware warranty: | 5 years full system warranty (incl. HDD). Onsite support next business day via Milestone's support processes. Refer to datasheet for further specifications. |
| Dimensions: | 290 x 92.6 x 292.8 (mm) 11.42” x 3.65’’ x 11.53”) |
| Weight: | 4.20 kg (min) 9.27 lb (min) |
| Power input: | 90 VAC - 264 VAC (47 Hz - 63 Hz) |
| Max. power consumption: | Single, 300W up to 92% efficiency (80 Plus Platium)) |
| BTU rating: | 1024 BTU/h (max. theoretical) |
| Protection: | OVP (over voltage), OCP (over current), OTP (over temp), SCP (short circuit) |
Environmental |
|
| Operating temperature: | 5⁰ – 45⁰ C / 41⁰ – 113⁰ F |
| Storage temperature: | -40⁰ – 70⁰ C / -40⁰ – 158⁰ F |
| Humidity: | 20 – 80% relative humidity (non-condensing) |
