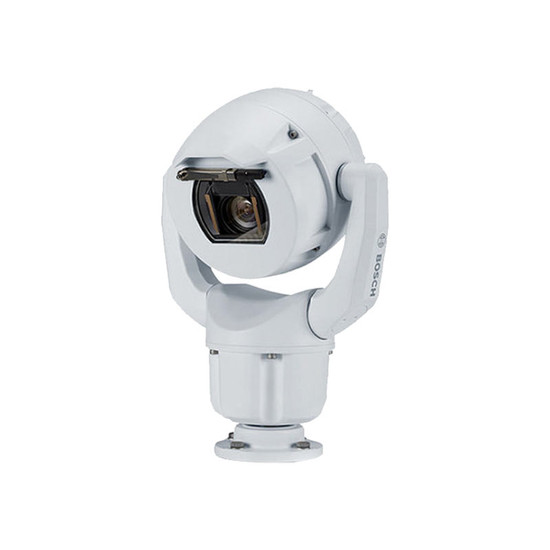

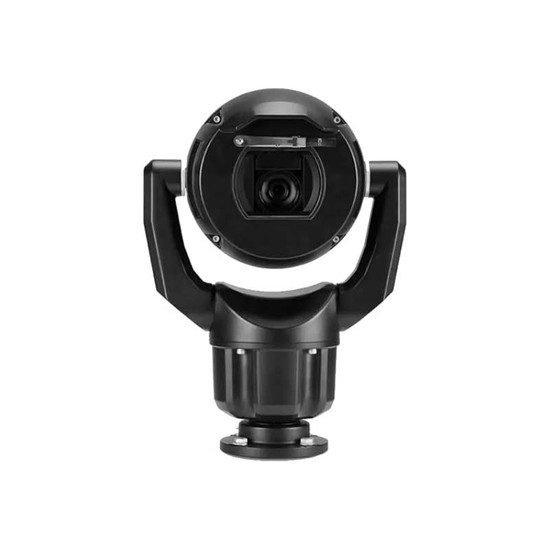

Designed for mission-critical and harsh outdoor environments, the MIC inteox 7100i is a high-performance PTZ camera delivering 4K UHD resolution at 30 fps with 12x digital zoom, 360° endless pan, and smooth tilt control. Its optical image stabilisation ensures steady video even in windy or vibrating conditions. AI-based Intelligent Video Analytics reliably detects, classifies, and tracks objects in complex scenes. The PTZ functionality includes up to 256 pre-positions, custom guard tours, and snap-to-zoom for precise monitoring. The corrosion-resistant housing is IP66/IP68 and IK10 rated suitable for offshore locations, with a built-in defroster and wiper for clear, continuous imaging in extreme weather.
Optional IR and white-light illumination provides enhanced visibility in complete darkness or low-light areas. Mounting accessories are supplied separately for wall, pole and corner installation.
The MIC inteox 7100i uses AI-based analytics for rapid incident detection and response. The camera can automatically detect and classify objects, utilising PTZ functions such as automatic follow, guard tours, preset activation, and snap-to-zoom. Intelligent algorithms minimise false alarms caused by shadows, reflections, moving foliage, or small animals. With the optional IVA Pro Intelligent Tracking licence, the camera can actively track and follow objects by directing the camera toward them, enhancing situational awareness. Customisable alarm rules and tracking options allow swift response and efficient forensic review, providing professional-grade monitoring in dynamic outdoor areas where precision and reliability are essential. The Camera Trainer program lets users create custom analytics by defining objects of interest and generating detectors for both moving and non-moving objects.
Available recording and video management options for this camera:
Camera |
|
| Environment: | outdoor |
| Type: | PTZ camera |
| Sensor: | 1 in. Exmor R CMOS Sensor |
| Lens: | Lens 12x motorized Zoom; 9.3 mm to 111.6 mm; F2.8 to F4.5
Field of view (FOV) (with optic image stabilizer ON): 6.1° to 64.6° (6.1° to 64.5°) Focus: Automatic with manual override, Region per preposition Iris: Automatic with manual override Digital zoom: 12x Note: Super resolution zoom is always on when digital zoom is <1.5X. This feature is not available at higher zoom values |
| Minimum illumination: | (3100K, reflectivity 89%, 1/30, F1.6, 30 IRE)
Colour: 0.292 lx Monochrome: 0.0110 lx |
| IR illumination: | Up to 550m range with optional illuminator kit (MIC-ILx-400) |
| Pan/Tilt/Zoom: | Drive Unit: Brushless, integral pan/tilt motor drive
Supported mounting orientation: Upright, Inverted, Canted Pan Range: 360° continuous rotation Tilt Angle: 290° (with or without illuminator) Tilt Range: (With or without illuminator) Upright: -55° to +90°; Inverted: -95° to +55°; Canted: -80° to +65° Variable Pan Speed: 0.2°/second - 120°/second Variable Tilt Speed: 0.2°/second - 90°/second Speed of Pre-positions: 120°/second Pre-position Accuracy: +/-0.05° Proportional Pan / Tilt to Zoom: Yes Audible Noise: <65 dB |
Imaging |
|
| Resolution: | 4K UHD: 3840 x 2160
1080p HD: 1920 x 1080 1.3 MP (16:9): 1536 x 864 720p HD / 1.3 MP 5:4 (cropped): 1280 x 720 432p SD: 768 x 432 288p SD: 512 x 288 |
| Frame rate: | Up to 30 fps |
| Video streaming: | Standard/Video compression:
H.265, H.264 (ISO/IEC 14496), M-JPEG, JPEG
Streaming: 3 fully configurable streams, with the option to activate or deactivate VCA overlays on each stream |
Analytics |
|
| Video content analysis: | Intelligent Video Analytics |
| Alarm rules (combinable): | Any object, Object in field, Crossing line, Entering field, Leaving field, Loitering, Following route, Idle object, Removed object, Counter, Occupancy, Crowd detection, Condition change, Similarity search, Tampering |
| Object filters: | Duration, Size, Aspect ratio v/h, Speed, Direction, Object classes (Upright persons, Bikes, Cars, Trucks), Colour |
Video Management |
|
| On-camera recording: | User-supplied full SD card (maximum 2 TB)
Recommended: Industrial SD cards from Western Digital (sold by Bosch) |
| Network video recorders: | Bosch DIVAR NVRs, Milestone Husky, ONVIF support for 3rd party NVRs |
| Video Management Software: | Bosch Video Management System (BVMS), ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS |
General |
|
| Audio: | Two-way, full duplex audio communication |
| Power: | 40W |
| Connectors: | Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| Dimensions: | Without illuminator accessory or sunshield:
Upright, Inverted: 287.93 mm x 400.34 mm x 210.65 mm (11.34 in. x 15.76 in. x 8.29 in.) Canted: 260.25 mm (10.2 in.) x 374.5 mm (14.7 in.) |
| Weight: | 8.7 Kg (19.2 lb) |
| Casing: | IEC 60529 IP66 / IP68 / Type 6P (dust and
immersion) when installed on a MIC-DCA, or on a
MIC wall mount with a MIC-SCA.
IP67 (moisture and dust) with the IP67 Connector Kit (MIC-9K-IP67-5PK) on the connectors in the camera base. This kit is also required when using non-Bosch mounts. IEC 62262 IK10 (excluding glass window) |
| Operating temperatures: | -40 °C to +65 °C (-40 °F to +149 °F) |
| Warranty: | 3-year |
| Protocols supported: | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, NTP (SNTP), DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, CHAP, digest authentication |
