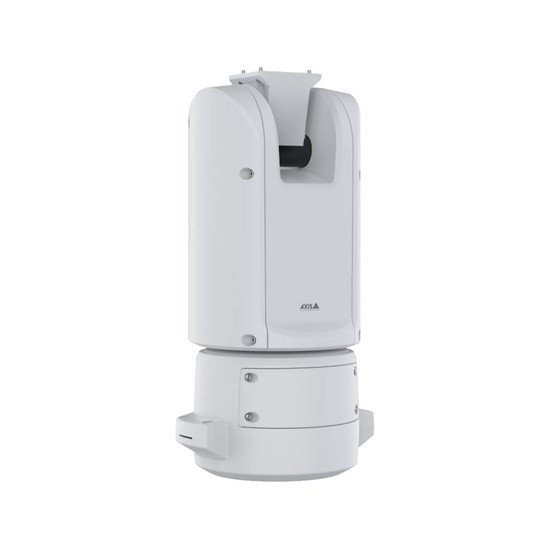

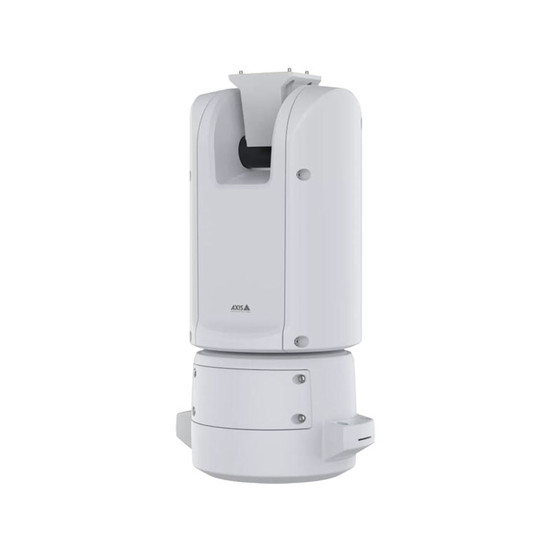

Overview of the AXIS TQ1818-E positioning unit
Compatible with selected Axis P13 and Q16 series cameras, this positioning unit enables 360° unobstructed horizontal views and 135° vertical views, as well as smooth high-speed panning. The robust unit is suitable for outdoor use with IP66 weather rating and IK10 vandal resistance. Furthermore, the product features 56 V AC or DC power capabilities, a long-distance network connection and a failover network link.
Compatible cameras
- AXIS Q1656-LE
- AXIS Q2101-TE
- AXIS Q2111-E
- AXIS Q2112-E
- AXIS Q1656-BE
- AXIS P1385-BE
- AXIS P1387-BE
- AXIS P1388-BE
- AXIS P1518-LE
- AXIS Q1656-BLE
Key technical features of the AXIS TQ1818-E positioning unit
General |
|
| Pan/Tilt: | Pan: 360° endless, 0.05°/s to 120°/s
Tilt: -90° to +45°, 0.05°/s to 60°/s Jerk-free movements at low speed: ±0.01°/s (at 0.05°/s) De-icing control Dynamic load balancing |
| Maximum load: | 5kg (11 lb) |
| Casing: | IP66-, NEMA 4X- and IK10-rated
Aluminum casing Colour: white NCS S 1002-B |
| Power: | 52–58 VDC, typical 17 W, max 150 W |
| Connectors: | Audio: 3.5 mm mic/line in
I/O: 6-pin 2.5 mm terminal block for 4 configurable inputs/outputs Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T, SFP slot (SFP module not included)3 Power: DC input, terminal block Illumination (in upper part of positioning unit) |
| Storage conditions: | Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 5–95% RH (non-condensing) |
| Weight: | Without camera
10.5 kg (23 lb) |
| Box content: | Box c |
| Operating conditions: | Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity: 10–85% RH (non-condensing) |
| Box Content: | Positioning unit, installation guide, connector kit |
| Warranty: | 5-year |
