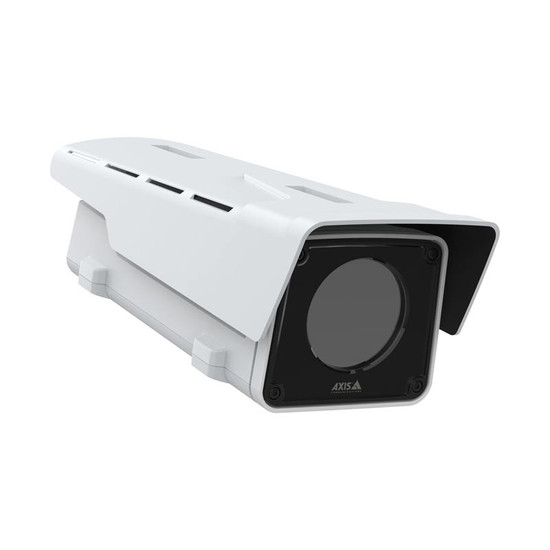

Equipped with a 60mm lens, this high-performance thermal imaging camera is ideal for long range detection and perimeter security. Robust and durable, it delivers early detection warnings 24/7 even in demanding visibility and weather conditions.
Ideal for perimeter security and long-range detection, this high-performance thermal camera provides 24/7 early detection warnings of objects even at extended distances. It features extremely high thermal sensitivity with 384x288 (QVGA) thermal resolution, capable of reliable object detection in demanding conditions that normally would limit visibility such as in fog and smoke. Equipped with a 60mm fixed lens, it captures close-up pictures at long range with electronic image stabilisation (EIS) ensuring a steady video stream when subject to wind and vibrations.
Engineered for outdoor environments, the camera's IP66/67 and IK10-rated casing protects it from harsh weather and vandalism. Four configurable I/O ports allow integration with external devices like alarms and speakers, enabling real-time proactive response to detected events. Different thermal palettes can be applied to better distinguish heat sources, improving scene interpretation.
The camera also comes with built-in motion detection analytics and supports third-party analytics integration, allowing for a more customised and advanced thermal detection system. The camera requires additional accessories for mounting to walls, ceilings and poles, and can be installed on the Axis T99A12 positioning unit for user-controlled multi-directional monitoring.
The preinstalled powerful analytics includes Axis Motion Guard, Fence Guard and Loitering Guard enabling users to run monitoring scenarios and receive alerts triggered by motion detection, virtual line crossing or loitering for enhanced detection and verification. The AI-based functionality of the device supports the use of the scalable Axis Perimeter Defender application for even greater detection capabilities, classifying humans and vehicles with minimal false alarms.
This camera also supports other Axis and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Available recording and video management options for this camera:
Camera |
|
| Environment: | outdoor |
| Type: | thermal bullet |
| Sensor: | Uncooled microbolometer 384x288 pixels, pixel size 17 μm. Spectral range: 8-14 μm |
| Sensitivity: | NETD <20 mK @25 °C, F1.0 |
| Lens: | 60 mm, F1.2
Horizontal field of view: 6° Minimum focus distance: 84 m (276 ft) |
| Pan/Tilt: | Supporting guard tour with up to 256 preset positions (positioning unit sold separately) |
| Audio: | 10-band graphic equalizer
Input for external unbalanced microphone, optional 5 V
microphone power
Digital input, optional 12 V ring power Unbalanced line input Output via speaker pairing Line output |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 2 Class 4
Typical 5.6 W, max 25.5 W 10–28 V DC, typical 4.1 W, max 25.5 W |
Imaging |
|
| Resolution: | Sensor is 384x288. Image can be scaled up to 768x576. |
| Frame rate: | Up to 8.3 fps and 30 fps |
| Video streaming: | Up to 20 unique and configurable video streams
Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
| Image settings: | Contrast, brightness, sharpness, local contrast, exposure zones, compression, rotation: 0°, 90°, 180°, 270° including corridor format, mirroring, text and image overlay, polygon privacy mask, electronic image stabilization, multiple color palettes |
Analytics |
|
| Applications: | Included
AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm, audio detection (with external microphone) Supported AXIS Perimeter Defender Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Event conditions: | Audio: audio detection, audio clip playing, audio clip currently
playing
Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature, IP address removed, new IP address, network lost, system ready, ring power overcurrent protection, live stream active, casing open Digital audio input status Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input, manual trigger, virtual input MQTT: stateless Scheduled and recurring: schedule Video: average bitrate degradation, tampering |
| Event actions: | Audio clips: play, stop
I/O: toggle I/O once, toggle I/O while the rule is active MQTT: publish Notification: HTTP, HTTPS, TCP and email Overlay text Pre- and post-alarm video or image buffering for recording or upload Recordings: SD card and network share SNMP traps: send, send while the rule is active Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email |
Video Management |
|
| On-camera recording: | Support for microSD/microSDHC/microSDXC card
Recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station Edge, Axis Camera Station, Milestone XProtect |
| Cloud: | Morphean Cloud CCTV, Milestone Arcules VSaaS |
General |
|
| Alarm I/O connections: | I/O: Terminal block for two supervised and two unsupervised configurable inputs / digital outputs (12 V DC output, max. load 50 mA) |
| Dimensions: | For the overall product dimensions, see the dimension drawing
in the datasheet.
Effective Projected Area (EPA): 0.05 m2 (0.48 ft2) |
| Weight: | 3.5 kg (7.7 lb) |
| Casing: | IP66/IP67-, NEMA 4X- and IK10-rated
Aluminum Colour: white NCS S 1002-B For repainting instructions, please refer to the appropriate document. |
| Operating temperatures: | -40 °C to 60 °C (-40 °F to 140 °F)
Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Humidity 10–100% RH (condensing)) |
| Installation aids: | Pixel counter, level grid |
| Warranty: | 5-year |
| Firmware support to: | TBC |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc , HTTP/2, TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
Security |
|
| Edge security: | Software:
Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509
Certificate PKI, host-based firewall |
