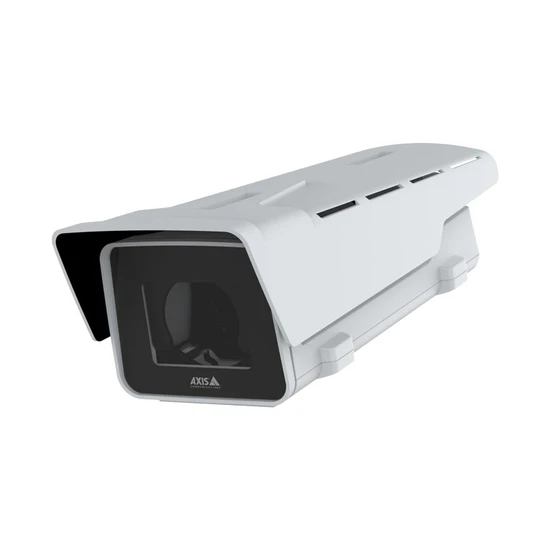

Camera |
| Environment: |
outdoor |
| Type: |
barebone box |
| Sensor: |
1/2.8” progressive scan RGB CMOS
Pixel size 2.9 µm |
| Lens: |
Not included |
| PTZ: |
Digital PTZ, preset positions
Preset position tour, control queue, on-screen directional
indicator
Guard tour (max 100) |
| Audio inputs: |
Input for external unbalanced microphone, optional 5 V
microphone power
Digital input, optional 12 V ring power
Unbalanced line input
Built-in microphone (can be disabled) |
| Power: |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 2 Class 4
Typical 3.87 W, max 25.5 W
10–28 V DC, typical 3.58 W, max 25.5 W |
| Connectors: |
Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
I/O: 6-pin 2.5 mm terminal block for 2 supervised alarm inputs
and 2 outputs (12 V DC output, max load 50 mA)
Audio: 3.5 mm mic/line in
Serial communication: RS485/RS422, 2 pcs, 2 pos, full duplex,
terminal block
Power: DC input, terminal block
Lens: i-CS connector (compatible with P-Iris and DC-iris)
AXIS T92G20 connector |
Imaging |
| Resolution: |
1920x1080 to 160x90 |
| Frame rate: |
With forensic WDR: Up to 25/30 fps (50/60 Hz) in all resolutions
No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions |
| IR illumination: |
Optional Axis illuminator kit is available |
| WDR |
Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: |
Up to 20 unique and configurable video streams
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Low latency mode
Video streaming indicator |
| Day/night: |
automatically removable infrared-cut filter |
| Minimum illumination: |
1080p 25/30 fps with Forensic WDR and Lightfinder 2.0:
With optional F1.4 lens:
Colour: 0.05 lux at 50 IRE, F1.4
B/W: 0.01 lux at 50 IRE, F1.4
1080p 50/60 fps with Lightfinder 2.0:
With optional F1.4 lens:
Colour: 0.1 lux at 50 IRE, F1.4
B/W: 0.02 lux at 50 IRE, F1.4
1080p 25/30 fps with Forensic WDR and Lightfinder 2.0:
With optional F0.9 lens
Colour: 0.02 lux at 50 IRE, F0.9
B/W: 0.005 lux at 50 IRE, F0.9 |
| Remote zoom / focus |
not included. Compatible i-CS lenses are supported |
| Image settings: |
Contrast, brightness, sharpness, white balance, day/night
threshold, tone mapping, exposure mode, exposure zones,
defogging, barrel distortion correction, compression, rotation:
0°, 90°, 180°, 270° including corridor format, mirroring, text and
image overlay,dynamic text and image overlay, privacy masks,
polygon privacy mask, target aperture
Scene profiles: forensic, vivid, traffic overview |
Analytics |
| Application Programming Interface: |
Open API for software integration, including VAPIX®, metadata
and AXIS Camera Application Platform (ACAP)
Computer Vision SDK.
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
ONVIF® Profile T
|
| Event triggers: |
Audio: audio detection, audio clip playing
Device status: above/below/within operating temperature, IP
address removed/blocked, new IP address, network lost, system
ready, ring power overcurrent protection, live stream active
Digital audio input status
Edge storage: recording ongoing, storage disruption, storage
health issues detected
I/O: digital input, digital output, manual trigger, virtual input
MQTT: stateless
Scheduled and recurring: schedule
Video: average bitrate degradation, day-night mode, tampering |
| Event action: |
Audio clips: play, stop
Day-night mode
I/O: toggle I/O once, toggle I/O while the rule is active
MQTT: publish
Notification: HTTP, HTTPS, TCP and email
Overlay text
Recordings: record, record while the rule is active
SNMP traps: send, send while the rule is active
Status LED: flash, flash while the rule is active
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
share and email
WDR mode |
Video Management |
| On-camera recording: |
Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Recording to network-attached storage (NAS) |
| Network video recorders: |
Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: |
Axis Companion, Axis Camera Station, Milestone XProtect |
| Cloud: |
Morphean Cloud CCTV, CamStreamer Cloud |
General |
| Alarm I/O connections: |
Audio: Audio and I/O connectivity via portcast technology |
| Dimensions: |
For the overall product dimensions, please see the dimension drawing in the product datasheet |
| Weight: |
2200 g (4.9 lb) |
| Casing: |
IP66-, IP67-, NEMA 4X- and IK10-rated
Aluminum and plastic casing
Weathershield with black anti-glare coating
Colour: white NCS S 1002-B |
| Operating temperatures: |
40 °C to 60 °C (–40 °F to 140 °F)
Humidity 10–100% RH (non-condensing)
Wind load (sustained): 55 m/s (123 mph) |
| Installation aids: |
Leveling assistant, remote back focus |
| Warranty: |
5-year |
| Firmware support to: |
31-12-2033 |
| Protocols supported: |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb
, HTTP/2, TLS b
,
QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
UPnP®
, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP,NTS,
RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP,
DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog
(RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf),
IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Security: |
Edge security Software: Signed firmware, brute force delay protection, digest
authentication and OAuth 2.0 RFC6749 OpenID Authorization
Code Flow for centralized ADFS account management, password
protection
Hardware: Axis Edge Vault cybersecurity platform
Secure element (CC EAL 6+), Axis device ID, secure keystore,
signed video, secure boot
|
