Axis Communications | 02757-001

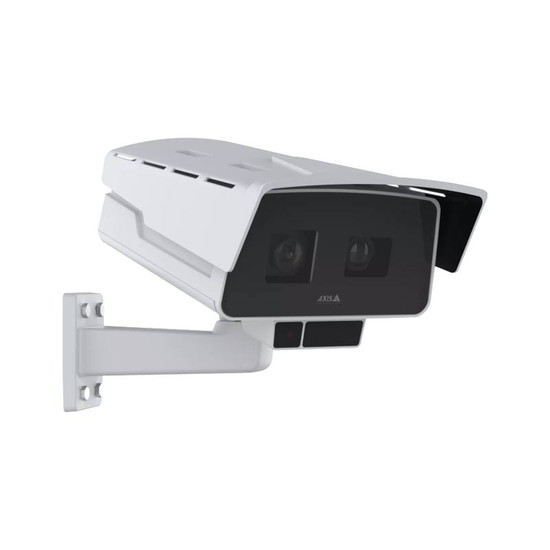

Axis P1518-LE dual sensor outdoor box camera with 2-channels, fixed & varifocal tele lenses, 4K UHD & 1080p resolution, Lightfinder 2.0, Forensic WDR, OptimizedIR, audio support and Axis Object Analytics
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
This dual-sensor IP camera allows capture of the same scene from two perspectives simultaneously, combining a detailed zoomed-in view with a higher resolution wide angle view alongside AI-driven video analytics for enhanced perimeter protection.
- 4K UHD wide-angle & 1080p zoomed-in view
- 113° fixed lens HFoV & 11° - 29° tele lens HFoV
- Easy setup with remote installation zoom and focus
- Low TCO with two individual video streams from one IP address
- OptimizedIR illumination up to 50m range
- Axis 5-year warranty. Axis OS support until 31-12-2033
Overview of the Axis P1518-LE outdoor dual sensor box camera
- Two sensors in one camera for both wide-angle and zoomed-in views of the same scene
- 24-hour performance thanks to OptimizedIR, Forensic WDR and Lightfinder 2.0
- Rapid installation and setup with remote zoom and focus
- Low total cost of ownership, running off one cable, one IP address and one VMS licence
- Ideal for building and perimeter protection with powerful AI video analytics
Equipped with both a fixed lens and varifocal tele lens, the high-performance dual sensor Axis P1518-LE box camera enables around-the-clock wide scene coverage and close-up views of the same scene simultaneously. Capture wide 113° scenes in up to 4K UHD resolution with the 5.85mm fixed lens, while the 29mm tele lens offers detailed, zoomed-in images from extended distances in 1080p. Enhance building and perimeter protection through reliable AI-driven video analytics, with images enhanced by Lightfinder 2.0 and Forensic WDR to ensure accurate alerts even in challenging lighting. In complete darkness, OptimizedIR LEDs illuminate with a 50m range.
The unit mounts directly to walls with the included mount, and can be ceiling mounted with additional accessories. PoE support enables fast, cost-effective installation, powering both video channels through a single cable. Robust and outdoor-ready, the device is IP66/IP67 and IK10 rated for effective weather and vandalism protection.
Video Analytics
Axis Object Analytics (AOA) supports both channels, accurately detecting, classifying, and counting humans and vehicles including cars, buses, trucks, and bikes. By analysing video on the edge, it generates rapid alerts for fast incident response. False alarms are drastically reduced thanks to its ARTPEC-8 Deep Learning CPU, which uses AI algorithms to filter out irrelevant events such as small animals and falling leaves. Detected objects are distinctly highlighted with colour-coded bounding boxes in the camera and/or the VMS. Up to 10 virtual scenarios, such as line crossing, object in area, and occupancy in area, can run simultaneously to improve scene awareness and provide valuable security insights.
This camera also supports other Axis and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
Both channels run off one VMS license. See below for available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Axis Camera Station Software
- Axis Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
- Morphean Cloud CCTV
Example Use Cases
- General perimeter and zone protection - early detection of people or vehicles, configure alarms upon unexpected behaviour, prevent unauthorised access, monitor wide-angle overviews and get a close-up view of those approaching. Cover the whole scene with the 1st video channel and a zoomed-in view of a specific point of interest such as a gate or entrance with the 2nd video channel.
- Anti-vandalism - deter criminal activity, identify suspicious behaviour, early warning of break-ins, document details of perpetrators
- Airports and stadiums - detect and classify individuals at entry/exit points, help alleviate congestion, crowd control
- Road monitoring and car parks - capture vehicle detail, receive alerts if vehicles enter restricted areas, document accidents, improve traffic flow and ease congestion, aid city planning, collate data and develop insights, identify repeat offenders.
Accessories included
- Camera
- Installation guide
- Axis TQ1003-E Wall Mount
- Terminal block connectors
- Connector guard
- Cable gaskets
- Owner authentication key
Key technical features of the Axis P1518-LE outdoor dual sensor box camera
Camera |
|
| Environment: | outdoor |
| Type: | 2-channel dual-sensor |
| Sensor: | 8 MP: 1x 1/1.2” progressive scan RGB CMOS
2 MP: 1x 1/2.8” progressive scan RGB CMOS Pixel size 2.9 µm |
| Lens: | 5.85 mm lens:
5.85 mm, F1.5 Horizontal field of view: 113.8° Vertical field of view: 61.9° Minimum focus distance: 1 m (3.3 ft) IR corrected, remote focus, P-Iris control 29 mm lens: Varifocal, 10.9–29 mm, F1.7 Horizontal field of view 29˚–11˚ Vertical field of view 16˚–6˚ Minimum focus distance: 2.5 m (8.2 ft) Varifocal, IR corrected, remote focus and zoom, P-Iris control |
| Day/night: | automatically removable infrared-cut filter |
| Camera adjustment: | 29 mm lens:
Pan ±15°, tilt ±15° |
| Minimum illumination: | 5.85 mm lens:
Colour: 0.05 lux at 50 IRE, F1.5 B/W: 0.01 lux at 50 IRE, F1.5 0 lux with IR illumination on 29 mm lens: Colour: 0.06 lux, at 50 IRE F1.7 B/W: 0.01 lux, at 50 IRE F1.7 0 lux with IR illumination on |
| IR illumination: | OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 50 m (164 ft) or more depending on the scene |
Imaging |
|
| Resolution: | 5.85 mm lens:
16:9: 3840x2160 to 480x270 16:10: 2560x1600 to 640x400 4:3: 2592x1944 to 320x240 29 mm lens: 16:9: 1920x1080 to 480x270 16:10: 1280x800 to 640x400 4:3: 1280x960 to 320x240 |
| Frame rate: | With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all resolutions
No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions (for 29 mm lens only) |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Up to 20 unique and configurable video streams1
Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including corridor format (for 5.85 mm lens only), mirroring, dynamic text and image overlay, polygon privacy mask Scene profiles: forensic, vivid, traffic overview, license plate (for 29 mm lens only) |
| Installation aids: | Pixel counter, remote focus, level grid, remote zoom (for 29 mm lens only), remote pan and tilt (for 29 mm lens only), traffic camera installation assistance |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, active tampering alarm, audio detection Supported Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses, trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Scene Metadata: | OObject classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
Object attributes: vehicle color, upper/lower clothing color, confidence, position |
Video Management |
|
| On-camera recording: | Support for microSD/microSDHC/microSDXC card Recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-8 |
| Audio: | Audio input
Input through microphone pairing Input for external unbalanced microphone, optional 5 V microphone power Digital input, optional 12 V ring power Unbalanced line input Audio output Output through speaker pairing |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1
Class 4 Typical 13.2 W, max 25.5 W 10–28 V DC, typical 13.3 W, max 25.5 W Features: power profiles, power meter |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Audio: 3.5 mm mic/line in Serial communication: RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block Power: DC input, terminal block I/O: Terminal block for two configurable supervised inputs / digital outputs (12 V DC output, max load 50 mA) |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the product datasheet. |
| Weight: | 3850 g (8.5 lb) |
| Casing: | IP66/67-, NEMA 4X- and IK10-rated
Aluminium and plastic casing Colour: white NCS S 1002-B |
| Operating temperatures: | Temperature with full power: -40 °C to 60 °C (-40 °F to 140 °F)
Temperature with low power: -5 °C to 60 °C (23 °F to 140 °F) Start-up temperature: -30 °C Wind speed (sustained): 60 m/s (134 mph) Humidity: 10–100% RH (condensing) |
| Warranty: | 5-year |
| Firmware support to: | 31-12-2033 |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection, digest
authentication and OAuth 2.0 RFC6749 OpenID Authorization
Code Flow for centralized ADFS account management, password
protection
Hardware: Axis Edge Vault cybersecurity platform Secure keystore: TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), system-on-chip security (TEE), Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTSd
, TLS v1.2/v1.3e
, Network Time Security (NTS), X.509
Certificate PKI, host-based firewall |
