| 02113-001

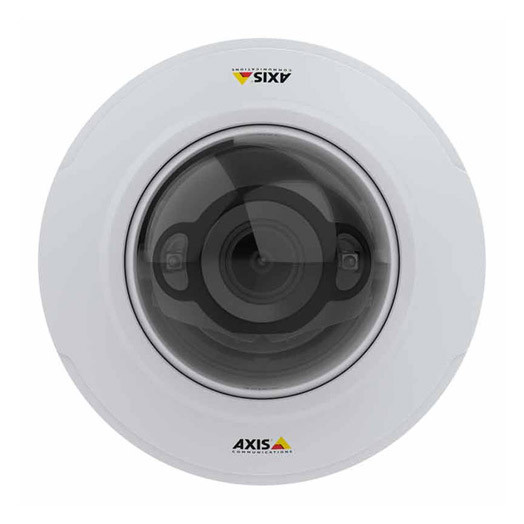

Axis M4216-LV indoor varifocal dome with 4MP resolution, Lightfinder, 20m OptimisedIR, deep learning analytics & HDMI

£463.00
£555.60 inc VAT
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

The M4216-LV features a compact design that fits seamlessly into a range of indoor areas. This varifocal unit is equipped with Lightfinder technology and 20m of OptimisedIR to capture video in low light, as well as an HDMI output.

  • 4MP resolution (2304 x 1728)
  • Varifocal lens 3-6mm provides 45° - 100° field of view
  • OptimisedIR with 20m range
  • HDMI output to connect to a local display
  • Lightfinder technology for low-light conditions
  • Axis 5-year warranty, Firmware support to: 31-12-2031
Hurry! Only left


Overview of the Axis M4216-LV indoor dome camera

  • Remote zoom and focus make setting the varifocal view quick and easy
  • OptimisedIR provides up to 20m of illumination to enhance footage captured in complete darkness
  • Intelligent Axis Object Analytics provide reliable and customisable detection of individuals
  • WDR and Lightfinder technology ensure the video is clear in a range of light conditions
  • Axis Edge Vault protects camera data from security threats

Vandal-resistant and able to blend into almost any interior, the compact Axis M4216-LV is equipped with advanced analytics that deliver reliable object detection, as well as detailed forensic search in both live and recorded video. This versatile model delivers 4MP resolution video and features Axis Edge Vault to safeguard the camera against unauthorised access and security threats. Designed for discreet, yet intelligent monitoring of indoor areas, this camera is best suited for use in retail and hospitality settings, as well as in waiting and reception areas.

Imaging and Optics

Thanks to its automatic IR-cut filter, the unit delivers detailed 24-hour video in 4MP resolution at up to 30 frames per second. Equipped with a varifocal lens that offers horizontal views of 45° - 100° and vertical views between 34° and 72°, you are able to set your required viewing angle at installation. To ensure optimum video quality in a range of lighting conditions, this camera includes OptimisedIR illumination that reaches up to 20m, Lightfinder, which supports the capture of full-colour footage in light levels as low as 0.18 lux, and WDR that captures high contrast scenes clearly - ensuring individuals and objects are visible, whatever the light levels. Moreover, privacy masking conceals areas and individuals in the camera’s view that are not relevant or permitted to be recorded.

Video Analytics

Advanced, deep-learning analytics come pre-installed, including Axis’ highly reliable Object Analytics. Detecting the presence and behaviour of people using spatial analysis, this intelligent application reduces false alarms by focusing on exactly what you want to detect, when and where you want to detect it. With up to 10 different configurable scenarios, you can tailor the detection and what events you are most interested in, whether you want to prevent intrusion or track the dwell time of individuals.

Axis applications and third-party applications are available to enhance the camera’s functionality for a more bespoke monitoring solution.

Recording and Video Management

Recording and video management options for this camera:

Installation and Mounting Options

Installation aids such as remote zoom and focus allow users to set up the required viewing angle without having physical access to the camera – ideal for when a camera is installed in a less accessible area. The casing is repaintable to match any installation area creating a non-invasive surveillance solution. Power and network connectivity are received through one cable using PoE, the HDMI output enables connection to a local monitor to view or display a live feed of surveillance footage and two-way audio can be integrated through support for I/O and T61 connections (microphone and speaker not included), enabling communication within the camera’s vicinity. Furthermore, IP42 and IK08-rated casing offers water, dust and impact protection.

This unit can be wall or ceiling mounted out of the box, but if a different mounting method is required, a range of optional accessories are available, including:

  • Axis T94C01L recessed mount for drop ceilings
  • Axis TM3101 pendant wall mount
  • Axis T94C01U universal mount

Accessories Included

  • Owner authentication key
Back To Top



Key technical features of the Axis M4216-LV

Camera

Environment: indoor
Type: fixed
Sensor: 1/2.7” progressive scan RGB CMOS
Lens: varifocal, 3–6 mm, F1.9 - 2.7 horizontal field of view: 100°–45° vertical field of view: 72°–34° Remote focus and zoom, fixed iris
PTZ: digital PTZ only
Audio: two-way audio connectivity via optional AXIS T61 Audio and I/O Interfaces with portcast technology
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 5 W, max 9.7 W
Memory: 1024 MB RAM, 512 MB Flash

Imaging

Resolution: 2304x1728 to 320x240
Compression: H.264 (MPEG-4 Part 10/AVC) H.265 (MPEG-H Part 2/HEVC) Motion JPEG
Frame rate: 25/30 fps with power line frequency 50/60 Hz
Video streaming: multiple, individually configurable streams in H.265, H.264 and Motion JPEG
Day/night: automatically removable infrared-cut filter
Minimum illumination: with Lightfinder: colour: 0.18 lux at 50 IRE F2.0 B/W: 0.03 lux at 50 IRE F2.0, 0 lux when IR illumination is on
IR illumination: OptimisedIR with power-efficient, long-life 855 nm IR LEDs Range of reach 20 m (65.6 ft) or more depending on the scene
Video overlay: text and image
Image settings: compression, colour, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR: up to 110 dB depending on scene, text and image overlay, mirroring of images, privacy mask Rotation: 0°, 90°, 180°, 270°, including Corridor Format

Analytics

Application Programming Interface: open API for software integration, including VAPIX and AXIS Camera Application Platform, ONVIF
Event triggers: included: Axis Object Analytics, Video Motion Detection, Axis Face Detector, active tampering alarm support for Axis Camera Application Platform enabling installation of third-party applications
Event action: MQTT publish Notification: email, HTTP, HTTPS, TCP and SNMP trap Overlay text, zoom preset, day/night mode Pre- and post-alarm video or image buffering for recording or upload Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email External output activation via AXIS T61 Audio and I/O Interfaces with portcast technology
Privacy masking: yes

Video Management

On-camera recording: support for MicroSD/MicroSDHC/MicroSDXC and encryption, support for recording to dedicated network-attached storage (NAS)
Network video recorders: Axis NVRs, ONVIF support for 3rd party
Video Management Software: Axis Companion, Axis Camera Station, Milestone XProtect
Cloud: Morphean Cloud CCTV, CamStreamer Cloud

General

Network connections: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Alarm I/O connections: RJ45 10BASE-T/100BASE-TX PoE HDMI type D Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces with portcast technology
Dimensions: ø 121 mm x 71 mm
Weight: 0.37kg
Casing:

aluminium, colour: white

Operating temperatures: 0°C to 45°C
Mounting methods: wall, ceiling
Installation aids: remote zoom and focus
Warranty: 5 year
Power consumption: max. 9.7W
Protocols supported: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf)
Security: password protection, IP address filtering, HTTPSa encryption, IEEE 802.1X (EAP-TLS) a network access control, digest authentication, user access log, centralised certificate management, brute force delay protection, signed firmware, secure boot, Axis Edge Vault with Axis device ID
Approvals: EMC CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety IEC/EN/UL 62368-1, IS 13252 IEC 62471 Environment IEC 60068–2–1, IEC 60068–2–2, IEC 60068–2–14, IEC 60068–2–27, IEC 60068–2–6, IEC/EN 60529 IP42, IEC/EN 62262 IK08 Network NIST SP500-26
