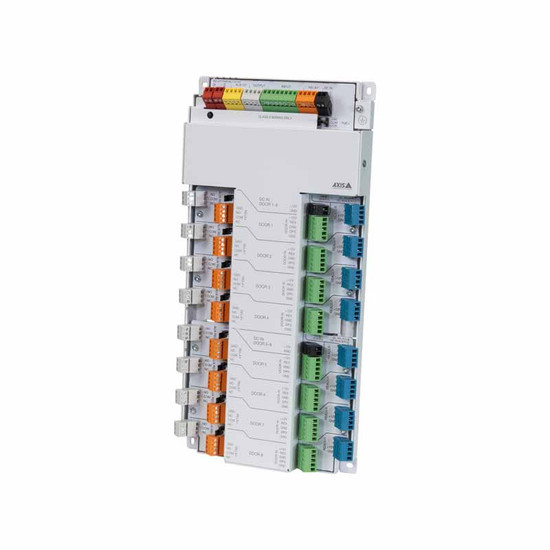

Overview of the Axis A1810-B network door controller
- Compact multi-door network controller for centralised management
- Full control of up to eight doors, supporting sixteen OSDP readers and sixteen locks
- Use with Axis Camera Station Secure Entry for a complete video and access control system
- OSDP verified for secure reader communication
- Features colour-coded connectors and built-in lock power management
Suitable for both small and large installations, this barebone multi-door network controller can help simplify complex management for access control systems. The Axis A1810-B offers full control for up to eight doors, featuring on board support for sixteen Open Supervised Device Protocol (OSDP) readers and sixteen locks. The controller is designed for installation in security rooms or main controller rooms, with built-in lock power management and colour-coded connectors for easy cable management.
Support for integration with Axis Camera Station Secure Entry or third-party solutions provides a complete video and access control management system. Additionally, it offers flexible and secure authentication using different types of credentials such as cards, PIN codes, bluetooth, dynamic QR codes for mobile access and ANPR for vehicle access.
Access Control Management
Available access control management solutions for this device:
- Axis Camera Station Secure Entry (included with Axis Camera Station software)
Accessories included
- Door controller
- Installation guide
- Connector kit (mounted)
- Grounding kit
- Splicing connectors
Key technical features of the Axis A1710-B network door controller
Door controller |
|
| Readers: | Up to 16 OSDP readers (multi-drop) per controller
OSDP Secure Channel supported |
| Doors: | 8 doors, two relays supporting double locks per door
Support for integrating up to 16x ASSA ABLOY Aperio® wireless lock |
| Credentials: | Qualified for up to 250 000 credentials stored locally |
| Event buffer: | Qualified for up to 250 000 events stored locally |
I/O interface |
|
| Reader: | DOOR 1–4 power out: 4x 12 V DC output, combined total of max 2 A
DOOR 5–8 power out: 4x 12 V DC output, combined total of max 2 A Data: 8x OSDP/RS485 half duplex, multidrop |
| Door input: | DOOR 1–4 power out: 4x 12 V DC output, combined total of max 400 mA
DOOR 5–8 power out: 4x 12 V DC output, combined total of max 400 mA DOOR 1–4 input: 4x REX and 4x door position sensor, digital input 0 to max 30 V DC, possible to supervise between 0–12 V DC (4 states) DOOR 5–8 input: 4x REX and 4x door position sensor, digital input 0 to max 30 V DC, possible to supervise between 0–12 V DC (4 states) |
| Relays: | RELAY: 1x form C relay, NO/NC
Dry: max 2 A at 30 V DC Wet: DC output: 12/24 V DC, jumper configurable With PoE: max 150 mA at 12 V DC, max 50 mA at 24 V DC, max 1.8 W With PoE+: max 920 mA at 12 V DC, max 420 mA at 24 V DC, max 11.04 W With DC in: max 1900 mA at 12 V DC, max 1000 mA at 24 V DC, max 24 W DOOR 1–4 RELAY: 4x form C NO/NC Dry: max 5A at 30 V DC Wet: DC output: 12/24 V DC, jumper configurable, total combined of max 3.8 A at 12 V DC or max 1.5 A at 24 V DC, max 46 W DOOR 5–8 RELAY: 4x form C NO/NC Dry: max 5A at 30 V DC Wet: DC output: 12/24 V DC, jumper configurable, max 3.8 A at 12 V DC, max 1.5 A at 24 V DC, max 46 W DOOR 1–4 AUX: 4x form C relay, NO/NC Dry: max 2A at 30 V DC DOOR 5–8 AUX: 4x form C relay, NO/NC Dry: max 2A at 30 V DC |
| Digital I/O: | Input connector
3x digital input, 0–30 V DC, possible to supervise between 0–12 V DC (4 states) 1x 12 V DC output, max 200 mA Output connector 3x digtal output, open drain, 0–30 V DC, max 100 mA AUX I/O connector 2x configurable inputs or outputs Input: digital input, 0–30 V DC, possible to supervise between 0–12 V DC (4 states) Output: open drain, 0–30 V DC, max 100 mA 1x 12 V DC output, max 250 mA |
| External: | 1x external tamper digital input, 0–30 V DC, possible to supervise between 0–12 V DC (4 states)
1x alarm digital input, 0–30 V DC, possible to supervise between 0–12 V DC (4 states) |
| Supervised input: | Configurable input for Tamper, Alarm, I1–I3, REX, DPS, and AUX IO
Programmable end-of-line resistors (serial connection: 1 K, 2.2 K, 4.7 K and 10 K, parallel connection: 4.7 K and 22 K), 1 %, ¼ watt standard One supervised input dedicated for cabinet tamper |
| Cable requirements | Wire size for connectors: CUL/UL: AWG 30–14
DC power: AWG 16-14, qualified for up to 3 m (10 ft) Relay: AWG 16-14, qualified for up to 200 m (656 ft) Ethernet and PoE: STP CAT 5e or higher Reader data (RS485): 1 twisted pair, AWG 26–14, qualified for up to 1000 m (3281 ft) Reader powered by controller (RS485): AWG 20–14, qualified for up to 200 m (656 ft)b I/Os as inputs: AWG 24–14, qualified for up to 200 m (656 ft) |
Cybersecurity |
|
| Edge security: | Software: Signed firmware, brute force delay protection, digest
authentication, password protection
Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), secure keystore, secure boot |
| Network security: | IEEE 802.1X (EAP-TLS)c, IEEE 802.1AR, HTTPS/HSTSc, TLS v1.2/v1.3c, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
General |
|
| Power: | Power over Ethernet (PoE) IEEE 802.3at, Type 2 Class 4 or DC IN:
12 V DC, max 36 W DC IN DOOR 1–4: 12 V DC, max 100 W (required) DC IN DOOR 5–8: 12 V DC, max 100 W (required)B |
| Casing: | Steel
Colour: white NCS S 1002-B |
| Mounting: | DIN rail mount, cabinet mount |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
I/O: Terminal blocks for DC power, inputs/outputs, RS485, relay. Detachable and color coded connectors for ease of installation. Wire size for connectors: CUL/UL: AWG 30–14 |
| Operating conditions: | -40 °C to 55 °C (-40 °F to 131 °F)
Conditional maximum temperature: 70 °C (158°F) UL 294: 0 °C to 55 °C (32 °F to 131 °F) Humidity 10–85% RH (non-condensing) |
| Dimensions: | For overall product dimensions, please refer to the datasheet |
| Weight: | 1330 g (2.9 lb) |
| Box content: | door controller, installation guide, connector kit (mounted), grounding kit, splicing connectors |
| Warranty: | Axis 5-year warranty |
