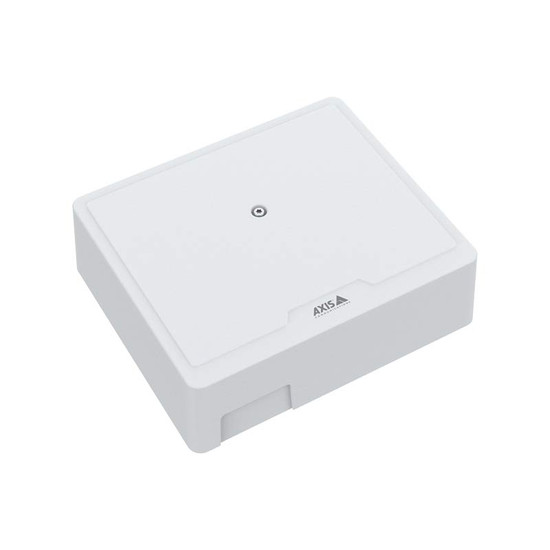

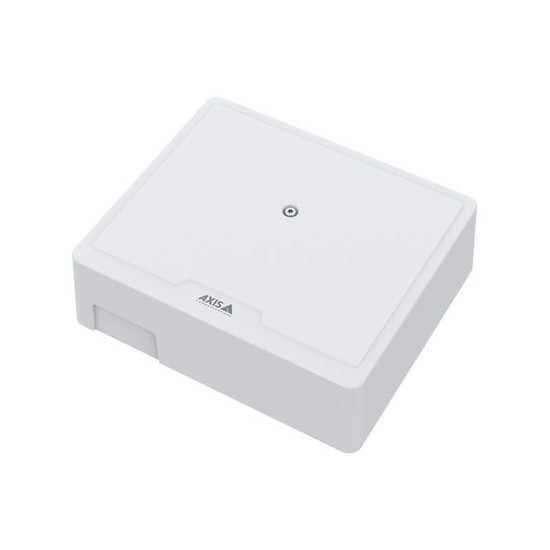

Designed for Axis access control installations, this compact edge-based network door controller features two door reader connections for simplified management of one door. It also features two auxiliary I/O ports for external device integration.
Cost-effective and easy to set up, this compact network controller offers full control for one door, featuring on board support for two Axis door readers. It offers a reliable end-to-end Axis solution with intelligence on the edge, handling door access tasks even if the network is down. The compact form factor makes it easy to install anywhere, including plenum spaces, all powered by one PoE cable for simplified integration.
Support for integration with Axis Camera Station Secure Entry or third-party solutions provides a complete access control management system. Additionally, it offers flexible and secure authentication using different types of credentials such as cards, PIN codes, bluetooth, dynamic QR codes for mobile access and ANPR for vehicle access.
Available access control management solutions for this device:
Door controller |
|
| Readers: | Up to 2 OSDP readers (multi-drop) or 1 Wiegand reader per controller
OSDP Secure Channel supported OSDP Secure Profile verified |
| Doors: | 1 wired door
Support for integrating up to 16x ASSA ABLOY Aperio® wireless lock technology |
| Credentials: | Third-party access management software depending on server capacity
Up to 250 000 credentials stored locally |
| Event buffer: | Qualified for up to 250 000 events stored locally |
| Tamper detection: | Removal of unit cover/tamper front Reader tamper, tilting detection |
I/O interface |
|
| Reader: | Power output: 12 V DC, max 500 mA
Data: OSDP, Wiegand I/O: Three open drain outputs, max 30 V, 100 mA each One supervised input |
| Door: | Power output: 12/24 V DC, jumper configurable
I/O: REX and door position sensor supervised inputs Output relay: 1x relay NO/NC, max 2 A at 30 V DC, resistive |
| Auxiliary: | DC output: 12 V, 50 mA
I/O: Two ports, configurable inputs or outputs |
| External: | External tamper supervised input
Alarm supervised input |
| Supervised input: | Configurable input for reader interface, door REX input, door position sensor input, and AUX
Programmable end-of-line resistors, 1 K, 2.2 K, 4.7 K and 10 K, 1 %, ¼ watt standard One unsupervised input dedicated for cabinet tamper |
| Cable requirements | Wire size for connectors: CSA: AWG 28–16, CUL/UL: AWG 30–14
DC power and relay: AWG 18-16 Ethernet and PoE: STP CAT 5e or higher Reader data (RS485): 1 twisted pair with shield, 120 ohm impedance, qualified for up to 1000 m (3281 ft) Reader data (Wiegand): Qualified for up to 150 m (500 ft) Reader powered by controller (RS485): AWG 20–16, qualified for up to 200 m (656 ft) Reader powered by controller (Wiegand): AWG 20–16, qualified for up to 150 m (500 ft)b I/Os as inputs: Qualified for up to 200 m (656 ft) |
Cybersecurity |
|
| Edge security: | Software: Signed firmware, brute force delay protection, digest
authentication, password protection
Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), secure keystore, secure boot |
| Network security: | IEEE 802.1X (EAP-TLS)c, IEEE 802.1AR, HTTPS/HSTSc, TLS v1.2/v1.3c, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
General |
|
| Power: | Power in: 12 V DC, max 36 W, or
Power over Ethernet (PoE) IEEE 802.3at, Type 2 Class 4 Power out lock: 12/24 V, jumper configurable Powered by PoE: max 900 mA at 12 V DC, max 450 mA at 24 V DC Powered by DC: max 1600 mA at 12 V DC, max 800 mA at 24 V DC Power out reader: 12 V DC, max 500 mA Total power budget for peripheral devices (locks, readers etc.): 2100 mA at 12 V if powered by DC, 1400 mA at 12 V if powered by PoE Class 4 |
| Casing: | Aluminum
Colour: white NCS S 1002-B |
| Mounting: | Wall mount, DIN rail mount |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
I/O: Terminal blocks for DC power, inputs/outputs, RS485/Wiegand, relay. Detachable and color coded connectors for ease of installation. Wire size for connectors: CSA: AWG 28–16, CUL/UL: AWG 30–14 |
| Operating conditions: | 0 °C to 70 °C (32 °F to 158 °F) Humidity 20–85% RH (non-condensing) |
| Dimensions: | For overall product dimensions, please refer to the datasheet |
| Weight: | 645 g (1.4 lb) |
| Box content: | door controller, installation guide, connector kit (mounted), grounding kit, cable ties |
| Warranty: | Axis 5-year warranty |
| Warranty: | Axis OS support until 31-12-2031 |
