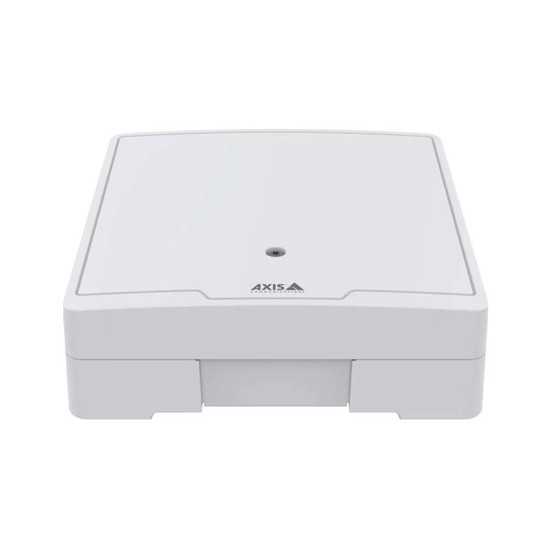

Designed for Axis access control installations, this advanced edge-based network door controller features four door reader connections for management of two doors. It also features six auxiliary I/O ports for integrating external devices.
Cost-effective and easy to set up, this advanced network controller offers full control of two doors, featuring on board support for up to four Axis door readers. It offers a reliable and secure end-to-end Axis solution with intelligence on the edge, handling door access tasks even if the network is down. Six configurable auxiliary I/O ports enable integration of external devices such as alarms and sensors. The unit is ready to be used out of the box and can be installed anywhere, all powered through one PoE cable.
Support for integration with Axis Camera Station Secure Entry or third-party solutions provides a complete access control management system. Additionally, it offers flexible and secure authentication using different types of door credentials such as cards, PIN codes, Bluetooth, dynamic QR codes for mobile access and ANPR for vehicle access.
Available access control management solutions for this device:
Door controller |
|
| Readers: | Up to 4 x OSDP readers or 2 Wiegand readers
OSDP Secure Channel supported OSDP Secure Profile verified |
| Doors: | 1-2 wired doors or 1 wired door together with a single
wireless lock gateway per controller
Support for integrating up to 16x ASSA ABLOY Aperio® wireless lock technology |
| Credentials: | Third-party access management software depending on server capacity
Up to 250 000 credentials stored locally |
| Event buffer: | Qualified for up to 250 000 events stored locally |
| Tamper detection: | Removal of unit cover/tamper front Reader tamper, tilting, vibration |
I/O interface |
|
| Reader: | Power output: 2x 12 V DC, max 500 mA
2x2 configurable supervised inputs/outputs (digital input: 0 to max 30 V DC; digital output: 0 to max 30 V DC, open drain max 100 mA) Data: OSDP/RS485 half duplex, Wiegand |
| Door: | Power output: 12/24 V DC, jumper configurable
Output relay: 2x relay NO/NC, max 2 A at 30 V DC, resistive 2x2 supervised inputs for door monitors and REX (digital input: 0 to max 30 V DC) |
| Auxiliary: | DC output: 1x 12 V DC output, max 200 mA
4x configurable inputs/outputs (digital input: 0 to max 30 V DC; digital output: 0 to max 30 V DC, open drain max 100 mA) |
| External: | 2x configurable inputs/outputs for auxiliary equipment (digital input: 0 to max 30 V DC; digital output: 0 to max 30 V DC, open drain max 100 mA) |
| Supervised input: | Configurable input for reader interface, door REX input,
door position sensor input, and AUX
Programmable end-of-line resistors, 1 K, 2.2 K, 4.7 K and 10 K, 1 %, ¼ watt standard |
| Cable requirements | Wire size for connectors: CSA: AWG 28–16, CUL/UL: AWG 30–14
DC power and relay: AWG 18-16 Ethernet and PoE: STP CAT 5e or higher Reader data (RS485): 1 twisted pair with shield, qualified for up to 1000 m (3281 ft) Reader data (Wiegand): Qualified for up to 150 m (500 ft) Reader powered by controller (RS485): AWG 20-16, qualified for up to 200 m (656 ft)2 Reader powered by controller (Wiegand): AWG 20-16, qualified for up to 150 m (500 ft)3 I/Os as inputs: Qualified for up to 200 m (656 ft) |
Cybersecurity |
|
| Edge security: | Software: Signed firmware, brute force delay protection, digest
authentication, password protection
Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), secure keystore, secure boot |
| Network security: | IEEE 802.1X (EAP-TLS)c, IEEE 802.1AR, HTTPS/HSTSc, TLS v1.2/v1.3c, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
General |
|
| Power: | Power in: 10.5–28 V DC, max 36 W (max 2.4 A at
10.5 V, max 0.9 A at 28 V), or Power over Ethernet (PoE)
IEEE 802.3at, Type 2 Class 4
12 V DC as backup Power out lock: 2x 12/24 V DC With PoE+: max 900 mA at 12 V DC, max 410 mA at 24 V DC in total With DC in: max 1800 mA at 12 V DC, max 750 mA at 24 V DC in total Power out reader: 2x 12 V DC, max 500 mA in total Auxiliary DC output: 1x 12 V DC output, max 200 mA Total power budget for peripheral devices (locks, readers etc.): 2100 mA at 12 V if powered by DC, 1300 mA at 12 V if powered by PoE Class 4 |
| Casing: | Aluminum
Colour: white NCS S 1002-B For repainting instructions of skin cover or casing and impact on warranty, contact our team for assistance. |
| Mounting: | Wall mount, DIN rail mount |
| Connectors: | RJ45 10BASE-T/100BASE-TX PoE
Terminal blocks: DC power, 14 inputs/outputs, RS485/Wiegand, relay, battery. Detachable and color coded connectors for ease of installation |
| Operating conditions: | -40 °C to 55 °C (-40 °F to 131 °F)
Conditional maximum temperature5: 70 °C (158°F) UL 294: 0 °C to 55 °C (32 °F to 131 °F) Humidity 20–85% RH (non-condensing) |
| Dimensions: | For overall product dimensions, please refer to the datasheet |
| Weight: | 645 g (1.4 lb) |
| Box content: | door controller, installation guide, mating connectors (mounted), grounding kit, cable ties |
| Warranty: | Axis 5-year warranty |
| Warranty: | Axis OS support until 31-12-2031 |
