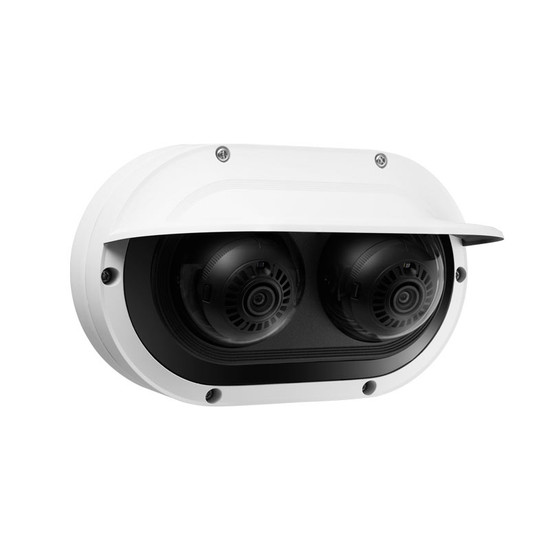

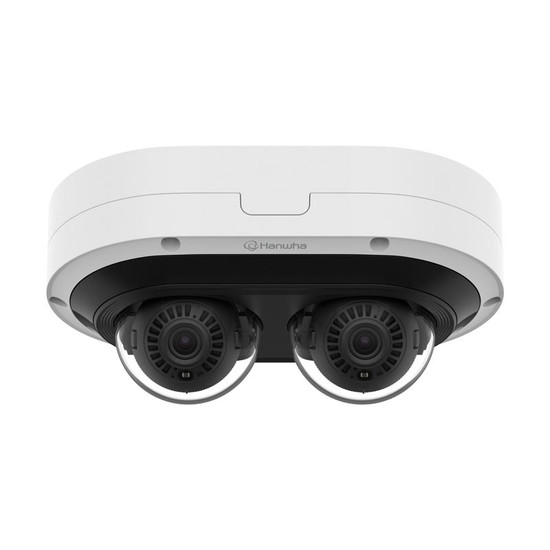

Hanwha Vision PNM-C7083RVD indoor/outdoor multi-directional IP66 & IK10 varifocal IP camera with 2 x 2MP sensors, 360° infrared, AI analytics and PoE+

Overview of the Hanwha Vision PNM-C7083RVD dual sensor AI camera

• Dual sensors monitor two different directions simultaneously in HD 1080p resolution
• Varifocal lenses can be manually adjusted individually for desired coverage
• 24-hour surveillance from both lenses with 360° IR
• Scenes with shadow and high-contrast are balanced with WDR
• Increased accuracy of AI-driven video analytics minimise false alarms

Offering two distinct views from a single IP address, this versatile multi-directional camera is perfect for extending CCTV coverage in both indoor and outdoor settings. Its robust aluminum casing is IP66 and IK10 rated, providing strong resistance against harsh weather and vandalism. Each of the dual sensors can be positioned independently, allowing live views and recordings from different directions, making it ideal for monitoring corridors and alleyways. The 2MP sensors deliver clear 1080p HD video at up to 30fps. With extremeWDR and integrated IR LEDs, the camera provides 360° coverage and illumination up to 25 meters, ensuring reliable 24/7 surveillance.

Receive alerts from edge-based video analytics enhanced by the AI engine, increasing accuracy and reliability so operators can focus on important events. Alarm inputs and audio detection (via external microphone) can be enabled via the optional Hanwha Vision SPM-4210 I/O box, allowing the unit to trigger external devices such as speakers and sirens on detection of user-defined events. The unit features a range of mounting options, with PoE+ facilitating power and network connection over a single ethernet cable.

Video Analytics

Edge-based advanced video analytics provide reliable motion detection and object classification, guiding operators to important real-time events for faster, more efficient incident response and fewer false alarms. The enhanced AI engine accurately classifies objects like humans and vehicles, along with specific attributes such as faces, cars, buses, and bikes, which can be visualised in annotated bounding boxes. Scenarios such as virtual line crossing, loitering detection, and object appearance/disappearance can be configured to enhance perimeter security and improve scene awareness.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (not included)
• Wisenet Viewer application
• Wisenet WAVE
• Hanwha Vision NVRs
• Milestone video management software
• Eagle Eye Networks

Example Use Cases

• Perimeter and zone protection - 24-hour effective surveillance of alleyways and sides of buildings, early detection of humans or vehicles, follow their direction between areas/ zones, configure alarms upon unexpected behaviour, deter criminal activity, monitor suspicious behavior, prevent unauthorised area access
• Retail stores - Claim handling, track and trace, deter aggression, minimise theft, reduce shrinkage, monitor threats i.e break ins, staff training, verify store has been securely locked
• Corporate / offices - Identify and authorise individuals on the premises, track movement of individuals between areas/zones, encourage procedure compliance, corridor view is ideal for narrow hallways
• Warehouses - Procedure compliance, track and trace, claim handling, maintain employee safety

Accessories included

• Camera
• Installation guide
• Drill template
• 2 x cable bushings
• RJ45 cap installer
• Torx L wrench

Key technical features of the PNM-C7083RVD
