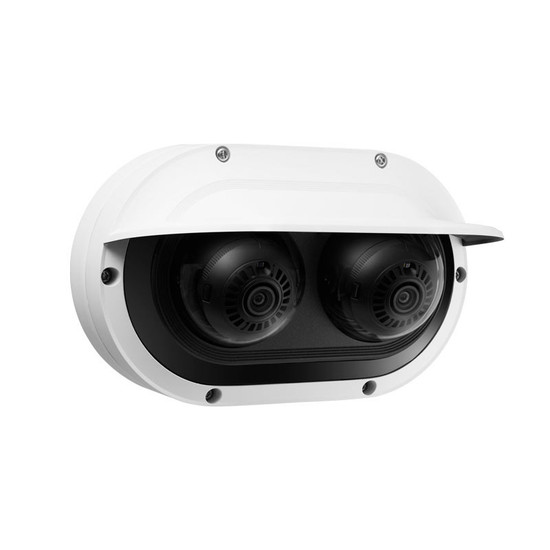

Hanwha Vision PNM-C12083RVD in/outdoor multi-directional IP66 & IK10 varifocal IP camera with 2 x 6MP sensors, 360° infrared, AI analytics and PoE+

Overview of the Hanwha Vision PNM-C12083RVD dual sensor AI camera

• Monitor two different directions simultaneously in HD video up to 3328x1872 resolution
• Manually adjust varifocal lenses individually for optimum coverage
• 360° IR illumination with a 25m range delivers 24-hour surveillance
• Extreme WDR balances scenes with shadows and high-contrast lighting
• Accurately detect and classify objects with AI-based video analytics

Perfect for installations needing an affordable solution to monitor two adjacent areas simultaneously, this compact, lightweight multi-sensor camera provides dual CCTV video feeds from a single IP address. Each varifocal lens can be positioned independently, allowing live views and recordings in different directions - ideal for extended coverage of corridors and alleyways. Its 6MP sensors capture high-definition video at up to 15fps for detailed footage. With extremeWDR and integrated IR LEDs offering 360° illumination over up to 25 meters, it ensures 24/7 monitoring. Its durable aluminum casing is IP66 and IK10-rated, providing strong protection against harsh weather and vandalism.

Edge-based video analytics enable alerts of events in real-time, enhanced by the AI engine for increased accuracry and reliability. Alarm inputs and audio detection (via external microphone) can be enabled via the optional Hanwha Vision SPM-4210 I/O box, allowing the unit to trigger external devices such as speakers and sirens on detection of user-defined events. The unit features a range of mounting options, with PoE+ facilitating power and network connection over a single ethernet cable.

Video Analytics

Edge-based advanced video analytics provide reliable motion detection and object classification, guiding operators to key real-time events for more efficient incident response and fewer false alarms. The enhanced AI engine classifies objects like humans and vehicles, along with specific attributes such as faces, cars, buses, and bikes, which are visualised using coloured bounding boxes. Scenarios like virtual line crossing, loitering detection, and object appearance/disappearance can be configured to strengthen perimeter security and enhance scene awareness.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (not included)
• Wisenet Viewer application
• Wisenet WAVE
• Hanwha Vision NVRs
• Milestone video management software
• Eagle Eye Networks

Example Use Cases

• Perimeter and zone protection - 24-hour effective surveillance of alleyways and sides of buildings, early detection of humans or vehicles, follow their direction between areas/ zones, configure alarms upon unexpected behaviour, deter criminal activity, monitor suspicious behavior, prevent unauthorised area access
• Retail stores - Claim handling, track and trace, deter aggression, minimise theft, reduce shrinkage, monitor threats i.e break ins, staff training, verify store has been securely locked
• Corporate / offices - Identify and authorise individuals on the premises, track movement of individuals between areas/zones, encourage procedure compliance, corridor view is ideal for narrow hallways
• Warehouses - Procedure compliance, track and trace, claim handling, maintain employee safety

Accessories included

• Camera
• Installation guide
• Drill template
• 2 x cable bushings
• RJ45 cap installer
• Torx L wrench

Key technical features of the PNM-C12083RVD
