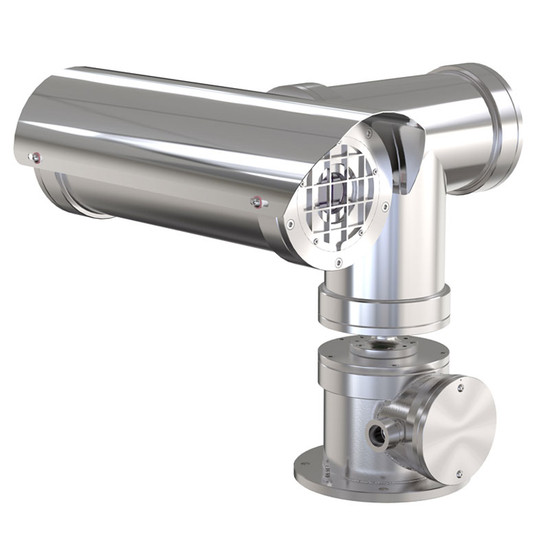

Axis XP40-Q1942 ATEX-Certified stainless steel pan/tilt thermal IP camera with 640x480 resolution and 360° endless pan

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

This advanced ATEX-Certified model features a thermal sensor as well as pan/tilt capabilities for precise scene navigation - making it suitable for reliable detection in extreme environments with a high risk of explosions or fire.

  • Thermal imaging in 640x480 resolution
  • 360° pan & 90° tilt
  • Stainless steel 316L casing
  • Edge storage provides data backup
  • ACAP support for 3rd party analytics
  • Axis 5-year warranty
Hurry! Only left

This product is discontinued, for alternatives please see ATEX-Rated IP Cameras

Overview of the Axis XP40-Q1942

  • Offers 640x480 resolution thermal imaging at up to 8.3 fps
  • 19mm thermal sensor offering a horizontal viewing angle of 32°
  • ATEX-Certified and housed in a 316L stainless steel casing
  • 360° endless pan and 90° tilt capabilities
  • Axis 5-year warranty
  • Size: 475 x 512 x 480 mm

This advanced ATEX-Certified model from Axis features a 19mm thermal sensor that offers a 32° horizontal field of view and is enclosed in a robust 316L stainless steel housing – making it suitable for reliable detection in extreme environments that feature a high risk of fire or explosions. High-performance pan and tilt capabilities enable precise navigation across wide outdoor locations; whilst support for Axis Camera Application Platform (ACAP) allows the download of sophisticated analytics applications from both Axis and third-party developers to help deliver high-level security surveillance in hazardous locations.


The robust IP67-rated casing also meets the ATEX-Certified EX II 2 GD standard, meaning it can contain internal explosions and prevent sparks from escaping the device – making it safe and suitable for installation in high-risk areas such as petrochemical plants.

This advanced camera delivers reliable 640 x 480 resolution thermal imaging at up to 8.3 frames per second (fps) and its 19mm thermal sensor provides a horizontal viewing angle of 32°. Variable pan/tilt movements, alongside an endless 360° pan and 90° tilt functionality, allow users to navigate quickly and precisely across large scenes; whilst Guard Tours and preset positions can be configured to ensure specific areas of interest, such as perimeter lines, are monitored throughout the day and night.


Providing a high-quality thermal imaging solution for hazardous locations, this model enables high-level detection of objects – even in darkness, smoke or fog. In addition, thanks to a combination of dynamic histogram equalisation, enhanced local contrast and dynamic sharpening, image contrast is improved for the delivery of sharp video in all lighting conditions. Thermal imaging cameras are also less sensitive to shadows and challenging light conditions and when compared to non-thermal network cameras, they achieve a reduced rate of false alarms and higher levels of accuracy. Electronic image stabilisation is supported and helps to deliver continuously smooth video quality where the camera is subject to vibrations.

Video analytics

The advanced model offers a high level of integration with external devices, such as access control and fire alarms, helping to create a comprehensive security solution alongside the variety of configurable video motion detection methods available for reliable alarm signalling. The camera is also compatible with Axis Camera Application Platform (ACAP) which enables the installation of applications from Axis or third-party developers, such as virtual trip wire, loitering alarm and many other intrusion detection applications.

Video management

Integrated MicroSD storage provides a handy backup of data in the event of network failure and sophisticated video management is possible through integration with high-performance video management software applications such as Axis Camera Station and Milestone XProtect.


With a weather-resistant, stainless steel 316L housing, this IP camera is built to endure the most demanding environments, including onshore and offshore applications, such as marine or heavy industrial locations.

Please note: this advanced unit must be installed and configured by an ATEX-Certified installer and does not come with a power supply (please select from the dropdown menu if required).

Key features & benefits

  • ATEX-Certified EX II 2 GD IP camera enclosed in a stainless steel 316L housing
  • Delivers 640 x 480 resolution thermal imaging at up to 8.3 frames per second
  • 19mm thermal sensor offers a 32° horizontal field of view
  • IP67-rated casing for durable use in external locations
  • 360° endless pan and 90° tilt allow users to easily navigate across wide hazardous scenes
  • Thermal technology for reduced false alarm rate
  • Video motion detection methods can be configured to alert users of possible incidents in real-time
  • Support for ACAP enables the use of powerful analytics applications
  • Edge storage provides a handy data backup if the network fails

Typical applications

This high-performance, ATEX-Certified unit offers reliable monitoring for locations that are exposed to the most demanding conditions. Typical applications include shipping docks, oil refineries and petrochemical plants.



  • Installation guide
  • User manual
  • Windows decoder 1-user license
  • Sunshield
  • Axis Surveillance microSDXC card 64GB

Optional (select from the dropdown menu):

  • Power supply

Mounting options (select optional accessories from the dropdown menu)

    • Wall mounting -  Axis ExCam XP40 wall mount
Back To Top

Key technical features of the Axis XP40-Q1942


ATEX Certification: ATEX: II 2 G Ex db IIC T4 Gb -60°C ≤ Ta ≤ +70°C Gb, II 2 D Ex tb IIIC T135°C Db IP66/67, certificate: ITS16ATEX101021X
Environment: outdoor (IP67-rated)
Type: explosion protected network camera
Sensor: uncooled micro bolometer 640x480, pixel size: 17 µm, spectral range: 8–14 µm
Lens: athermalised, 19 mm, F1.23, horizontal field of view: 32°
PTZ: pan: 360° endless, 0.1–45°/s, tilt: ±90°, 0.1–24°/s, 64 preset positions, preset accuracy +/-0.1°, Guard Tour, control queue
Audio: none
Power: max. consumption: 24V, AC: 100W
Memory: 512MB RAM, 256MB Flash


Resolution: 640 x 480
Compression: H.264 (MPEG-4 Part 10/AVC) Baseline and Main profiles, Motion JPEG
Frame rate: 8.3 fps
Video streaming: at least three H.264 and Motion JPEG streams, simultaneous and individually configured in max. resolution in full frame rate, Axis Zipstream technology in H.264, controllable frame rate and bandwidth VBR/CBR H.264
Day/night: not given
Minimum illumination: not given
IR illumination: none
Video overlay: text and image
Image settings: compression, mirroring of images, rotation, multiple palettes, brightness, sharpness, contrast, electronic image stabilization, automatic gain control, exposure zone, max gain, text and image overlay, privacy mask


Application Programming Interface: open API for software integration, including VAPIX and AXIS Camera Application Platform, AXIS Guardian with One-Click Connection, ONVIF profiles S/G
Event triggers: analytics, temperature, time scheduled, edge storage events
Event action: overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap, file upload via FTP, SFTP, HTTP, HTTPS, network share and email, notification via email, HTTP, HTTPS and TCP
Privacy masking: yes

Video Management

On-camera recording: support for microSD/microSDHC/microSDXC card, support for recording to network-attached storage (NAS)
Network video recorders: Axis NVRs, ONVIF support for 3rd party NVRs, Milestone Husky NVRs
Video Management Software: Axis Companion, Axis Camera Station, Milestone XProtect
Cloud: Morphean Cloud CCTV, CamStreamer Cloud


Network connections: one M25 cable entry for cable conduits
Alarm I/O connections: none
Dimensions: 475 x 512 x 480 mm
Weight: 50kg
Casing: IP66- and IP67- rated, electropolished SAE 316L stainless steel casing for maximum corrosion protection, Germanium protective window
Operating temperatures: -40°C to 70°C
Mounting methods: column, wall
Installation aids: pixel counter
Warranty: 5-year
Power consumption: max. 100W
Protocols supported: IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNM v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Security: password protection, IP address filtering, HTTPS encryption, digest authentication, User access log, centralised certificate management
Approvals: EMC: EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 22 Class A, safety: EN/UL/CSA 60065, environment: IEC/EN 60529 IP66, IP67, explosion: IEC/EN/SANS/ABNT NBR 60079-0, IEC/EN/SANS/ABNT NBR/GOST 60079-1, IEC/EN/SANS/ABNT NBR/GOST 60079-31, GOST 31610.0, GB3836.1, GB3836.2, CAN/CSA-C22.2 No. 60079-0, CAN/CSA-C22.2 No. 60079-1, CSA-C22.2 No. 60065-03, CAN/CSA C22.2 No. 25, CAN/CSA C22.2 No. 30-M, UL 1203
