Camera
|
Environment: |
indoor |
Type: |
pan/tilt/zoom |
Sensor: |
1/2.5” progressive scan RGB CMOS |
Lens: |
4.4–88 mm, F2.0-3.8, horizontal field of view: 70.2°–4.1°, autofocus, DC-iris control |
PTZ: |
pan: ±170°, 0.2-100°/s. Tilt: -20° - 90°, 0.2-90°/s. Zoom: 20x optical, 12x digital, total 240x. 256 preset positions, control queue, on-screen directional indicator, adjustable zoom speed, PTZ response profiles |
Audio: |

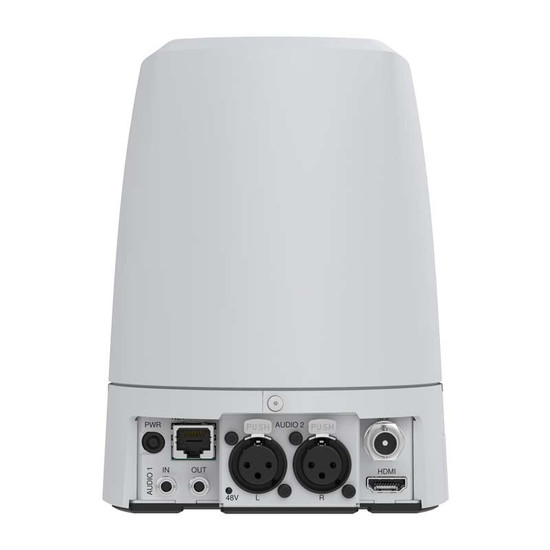

two-way, stereo, HD-SDI: SMPTE ST 299-1, 3G-SDI: SMPTE ST 299-2. XLR input, 3.5mm input & output, SDI output, HDMI output |
Power: |
11–13 V DC (12 V power supply included), typical 17.5 W, max 20 W |
Memory: |
2 GB RAM, 512 MB Flash |
Imaging
|
Resolution: |
(3840 x 2160) to (160 x 90) |
Compression: |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG |
Frame rate: |
25 fps |
Video streaming: |
multiple, individually configurable streams in H.264, H.265 and Motion JPEG, Axis Zipstream technology in H.264 and H.265, controllable frame rate and bandwidth, VBR/ABR/MBR H.264/H.265, HDMI, HD-SDI: SMPTE 292, 3G-SDI: SMPTE 424 ,SMPTE 425 (3G-SDI mapping supports Level A / Level B dual link mapping) |
Day/night: |
automatically removable infrared-cut filter |
Minimum illumination: |
colour: 0.7 lux at 30 IRE F2.0, 1 lux at 50 IRE F2.0, b/w: 0.06 lux at 30 IRE F2.0, 0.1 lux at 50 IRE F2.0 |
IR illumination: |
none |
Video overlay: |
text and image |
Image settings: |
saturation, brightness, sharpness, noise reduction, rotation: 0°, 180°, WDR – dynamic contrast, white balance, day/night threshold, exposure zones, backlight compensation, defogging, highlight compensation, electronic image stabilisation |
Analytics
|
Application Programming Interface: |
open API for software integration, including VAPIX and, AXIS Camera Application Platform, One-click cloud connection, ONVIF profiles S/G, support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
Event triggers: |
included analytics: Axis Video Motion Detection, Axis PTZ Autotracking, support for AXIS Camera Application Platform enabling installation of third-party applications. External input, edge storage events, virtual inputs through API. Audio: audio detection. Call: state, state change. Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, storage failure, system ready, within operating temperature. Edge storage: recording ongoing, storage disruption. I/O: digital input, manual trigger, virtual input. PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready. Scheduled and recurring: scheduled event. Video: average bitrate degradation, live stream open |
Event action: |
record video: SD card and network share. Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email. Pre- and post-alarm video or image buffering for recording or upload. Notification: email, HTTP, HTTPS, TCP and SNMP trap. PTZ: PTZ preset. Overlay text, external output activation, play audio clip, zoom preset, day/night mode, make call |
Privacy masking: |
yes |
Video Management
|
On-camera recording: |
support for microSD/microSDHC/microSDXC card and encryption, recording to network-attached storage (NAS) |
Network video recorders: |
Axis NVRs, ONVIF support for 3rd party NVRs, Milestone Husky NVRs |
Video Management Software: |
Axis Companion, Axis Camera Station, Milestone XProtect |
Cloud: |
Morphean Cloud CCTV, CamStreamer Cloud |
General
|
Network connections: |
RJ45 10BASE-T/100BASE-TX/1000BASE-T |
Alarm I/O connections: |
terminal block for 1 alarm input and 1 output |
Dimensions: |
Ø136mm x 180mm |
Weight: |
1.5kg |
Casing: |
ASA plastic cover, colour: white NCS S 1002-B |
Operating temperatures: |
0°C to 40°C |
Installation aids: |
pixel counter, levelling guide |
Warranty: |
5 years |
Power consumption: |
max. 20W |
Protocols supported: |
IPv4/v6, HTTP, HTTP/2, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog, HDMI, 3G-SDI, VISCA |
Security: |
password protection, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot |
Approvals: |
EMC: EN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35, KC KN32 Class A, KC KN35. Safety: IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark. Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78. Network: NIST SP500-267 |
