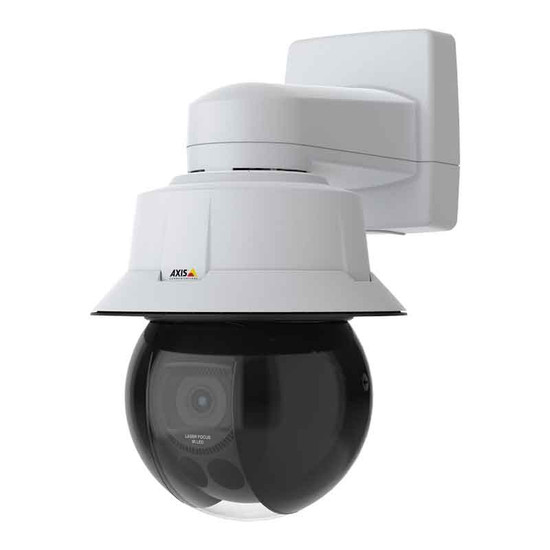

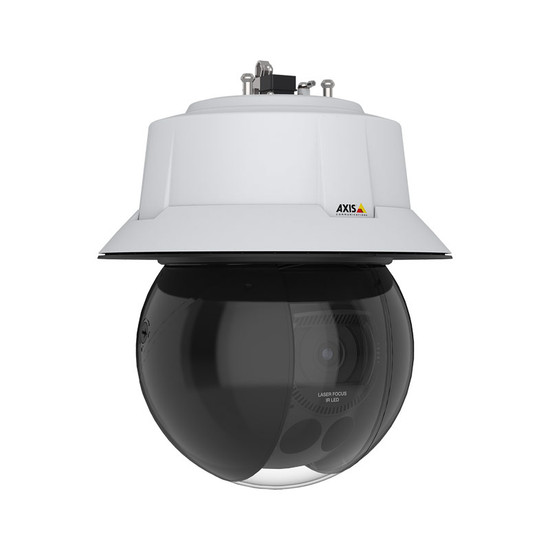

This powerful PTZ camera is packed with advanced features such as 360° endless pan, 31x optical zoom, laser focus, OptimisedIR and Autotracking 2 for comprehensive and proactive surveillance of large, busy outdoor areas.
High-quality and powerful, the feature-packed Axis Q6318-LE PTZ dome captures sharp 4K UHD resolution video at full framerate – 24 hours a day. Equipped with a larger ½” sensor, allowing more light per pixel and providing higher quality footage with reduced noise levels – especially in low light conditions. The unit also includes long-range OptimisedIR LEDs that illuminate up to 200m around the camera in complete darkness. OptimisedIR is also designed to automatically adjust to the camera’s movements, avoiding reflections and glare and ensuring the entire field of view is evenly lit. The unit also features a built-in laser for quick and precise focusing – even in challenging light conditions.
For proactive and comprehensive surveillance, this advanced camera has an impressive range of movement with 360° endless pan, 70° tilt and 31x optical zoom (including quick-zoom), providing detailed monitoring of large outdoor spaces. The unit’s varifocal lens also allows optimum scene coverage to be set between 2.3° and 58.5° during installation. When a moving object is detected in the camera’s view, Axis Digital Autotracking 2 can be used to zoom in and follow the object for greater scene awareness. Whilst an object is being tracked, the application also continues to monitor the entire field of view, and when a second moving object is detected the viewing area is adapted to include all moving objects. To protect the camera from cyber-attacks and unauthorised access, a range of built-in cybersecurity features are included to mitigate the risks and combat vulnerabilities in the surveillance system. A FIPS 140-2 level 2 certified Trusted Platform Module (TPM) keeps cryptographic keys and certificates secure from data breaches, whilst signed firmware and secure boot block unauthorised firmware and malicious code from entering the system.
In addition to the camera’s larger sensor, and long-range IR illumination, a number of imaging technologies are included to also improve the quality of footage in challenging conditions. Forensic WDR is optimised for areas with high levels of movement, as Axis’ most advanced WDR technology, it balances out lighting and reduces visible noise and artefacts in high-contrast scenes, making it easier to identify objects and people in difficult lighting. Also equipped with Sharpdome, the camera can produce sharp, focused footage across the entire field of view. This innovative technology minimises reflections on the dome for full image clarity, regardless of the tilt or pan angle. Moreover, the footage is kept stable and free from motion blur, even when the camera is moving, thanks to electronic image stabilisation (EIS) – allowing smooth object tracking and zooming.
This state-of-the-art unit features a wide range of intelligent analytics including Axis Object Analytics (AOA), Motion Guard, Fence Guard and Loitering Guard. AOA can accurately detect and classify humans and vehicles, allowing specific event triggers and alarms to be set, based on object classes for more nuanced detection and enhanced scene awareness. Motion, Fence and Loitering Guard enable alarm triggers to be configured when a moving object is detected, crosses a line or dwells in the viewing area for a set length of time – sending email notifications or triggering recording to the onboard SD card, ensuring no important events are missed. Custom analytics applications are available to download through Axis’ Camera Application Platform (ACAP) for a tailored analytics solution if more specific detection is required.
There are several options for video management on this camera, Axis’ free Companion Application is available for small installations of up to 16 cameras, providing basic management options and remote access to both live and recorded video. In more advanced setups, a paid VMS solution may be more appropriate. This camera is compatible with both Axis Camera Station and Milestone XProtect and can be easily added to an existing system. Furthermore, support for edge storage is included, allowing recordings to be written to a MicroSD card (not included) – serving as a backup in the event of network failure.
Designed to withstand harsh outdoor conditions, encased in IP66/67-rated housing and featuring Axis’ Speed Dry functionality, the Q6318-LE still provides clear, high-quality video in inclement weather such as rain, snow or high winds. With arctic temperature control, the unit is able to start up in temperatures as low as -40°C and two temperature zones are available to save energy when it is needed most – ideal when using solar panels or batteries to power the camera. As well as being weather-resistant, the camera’s housing is also IK10-rated to protect from tampering and vandalism in exposed and busy areas. Power and network connections can be streamlined using the unit’s built-in 60W PoE+ switch, enabling both connections to be made through a single cable, saving installation time and equipment costs.
Equipped with full PTZ capabilities, laser focus, advanced analytics and long-range OptimisedIR, this innovative camera is ideal for use in large, busy outdoor areas that require precise and proactive monitoring around the clock. Typical applications include city surveillance, stadiums and amusement parks.
Included:
Optional (please select from the accessories tab if required):
Camera |
|
| Environment: | outdoor |
| Type: | PTZ dome |
| Sensor: | 1/2” progressive scan CMOS |
| Lens: | focal length: 6.91 – 214.64 mm, F1.36 – F4.6 horizontal field of view: 58.5° – 2.3° vertical field of view: 34.9° – 1.4° laser focus, autofocus, P-iris zoom speed: <1 sec between any zoom value |
| PTZ: | pan: 360° endless, 0.05°– 550°/s tilt: +20 to -90°, 0.05° – 500°/s zoom: 31x optical, 12x digital, total 372x zoom quick-zoom, nadir flip, 300 preset positions, tour recording (max 10, max duration 16 minutes each), guard tour (max 100), control queue, on-screen directional indicator, set new pan 0°, adjustable zoom speed, speed dry |
| Audio: | no info given |
| Power: | Axis High PoE 60 W SFP midspan 1-port: 100–240 V AC, max 1.5 A IEEE802.3bt Type 3 Class 6 Camera consumption: typical 17 W (no IR), max 51 W |
| Memory: | 2048MB RAM, 512MB Flash |
Imaging |
|
| Resolution: | 3840 x 2160 4K UHD |
| Compression: | H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG |
| Frame rate: | up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming: | multiple, individually configurable streams in H.264, H.265 and Motion JPEG, Axis Zipstream technology in H.264 and H.265, controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 video streaming indicator |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | Colour: 0.11 lux at 30 IRE, F1.36 B/W: 0.001 lux at 30 IRE, F1.36, 0 lux with IR illumination on Colour: 0.25 lux at 50 IRE, F1.36 B/W: 0.009 lux at 50 IRE, F1.36, 0 lux with IR illumination on |
| IR illumination: | OptimisedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 200 m (656 ft) or more depending on the scene |
| Video overlay: | text and image |
| Image settings: | compression, colour, brightness, sharpness, white balance, exposure control, exposure zones, image freeze on PTZ, scene profiles, rotation, electronic image stabilization (EIS), defogging Contrast, local contrast, autofocus, Forensic WDR: Up to 120 dB depending on scene, 32 individual polygon privacy masks including mosaic privacy mask |
Analytics |
|
| Application Programming Interface: | open API for software integration, including VAPIX and AXIS Camera Application Platform, One-Click Cloud Connection, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, and ONVIF Profile T |
| Event triggers: | device status: above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, shock detected, storage failure, system ready, within operating temperature Edge storage: recording ongoing, storage disruption I/O: manual trigger, virtual input MQTT subscribe PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready Scheduled and recurring: scheduled event Video: average bitrate degradation, day-night mode, live stream open |
| Event action: | record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text, day/night mode WDR mode IR illumination MQTT publish |
| Privacy masking: | yes |
Video Management |
|
| On-camera recording: | support for SD/SDHC/SDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Support for recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Companion, Axis Camera Station, Milestone XProtect |
| Cloud: | Morphean Cloud CCTV, CamStreamer Cloud |
General |
|
| Network connections: | Axis High PoE IEEE802.3bt Type 3 Class 6 |
| Alarm I/O connections: | no info given |
| Dimensions: | with weather shield: ø 239 mm x 261 mm
without weather shield: ø 192 mm x 261 mm
|
| Weight: | 4800g |
| Casing: | IP66-, IP67, NEMA 4X- and IK10-rated colour: white NCS S 1002-B repaintable metal casing (aluminium), hard-coated Polycarbonate (PC) clear dome with sharpdome technology |
| Operating temperatures: | -5 °C to 50 °C
with IR: 44 W -50 °C to 50 °C
maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
arctic temperature control: start-up as low as -40 °C
|
| Mounting methods: | ceiling, wall, pole, parapet |
| Installation aids: | no info given |
| Warranty: | 5-year |
| Power consumption: | max. 51W |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Security: | Password protection, multi-level user, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS), network access control, user access log, digest authentication, centralized certificate management, brute force delay protection, signed firmware, secure boot, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified) |
| Approvals: | EMC EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A) VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KS C 9832 Class A, KS C 9835 Safety IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1 Environment IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250, Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B) Network NIST SP500-26 |
