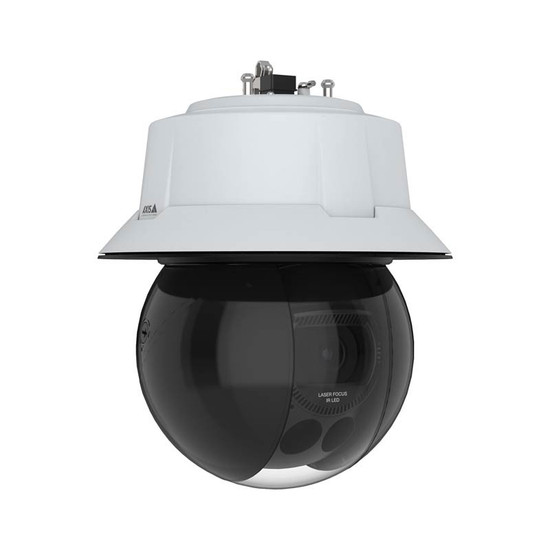

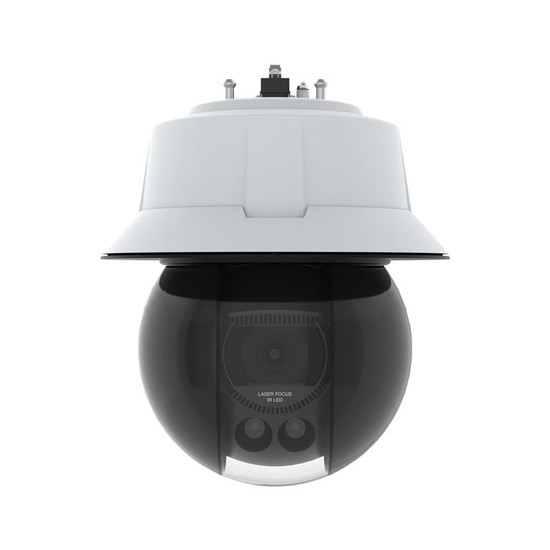

Overview of the AXIS Q6358-LE outdoor PTZ camera
- High-performance PTZ camera with 4K UHD resolution and 31x optical zoom
- Built on ARTPEC-9 chipset for next-generation AXIS Object Analytics enhanced with deep learning
- Crisp and clear images in challenging lighting with Forensic WDR and Lightfinder 2.0
- OptimizedIR delivers extra long-range illumination up to 300 metres
- AV1 codec support enables higher quality recording while minimising bandwidth use
The advanced AXIS Q6358-LE IP camera features cutting-edge image processing, powerful AI-based video analytics and ultra-responsive PTZ capabilities. Capture video in full 4K resolution up to 50 fps, with 31x optical zoom for focusing in detail at extended distances. Endless 360° pan and laser focus allows users to quickly identify and focus precisely on events as they unfold. Auotracking enables the camera to follow objects as they move around the scene.
Forensic WDR and Lightfinder 2.0 ensures excellent image quality in low and difficult lighting. Integrated OptimizedIR LEDs delivers extra long-range illumination in complete darkness up to 300m. Built on the ARTPEC-9 chipset, the camera features next-generation video analytics that detect objects earlier and analyse events more accurately. AV1 support ensures high-quality video with exceptional detail, clarity, and industry-leading bitrate efficiency.
This camera requires additional accessories for mounting. We recommend the AXIS T91G61 wall mount or AXIS T91B63 ceiling bracket for secure installation.
Video Analytics
Cutting-edge AXIS Object Analytics (AOA) enables reliable detection, classification, and counting of people and vehicles—including cars, lorries, buses, and bikes. It processes video on the edge for faster alerts to speed up incident response. Thanks to the ARTPEC-9 chip with DPLU, it effectively filters out non-relevant motion such as animals or environmental movement for significantly reduced false alarms. Detected objects are clearly marked with colour-coded bounding boxes, visible in both the camera view and the video management system. Configure up to 10 concurrent virtual rules such as line crossing, zone entry, and area occupancy to enhance situational awareness and gather operational insights. AXIS Image Health Analytics is also built in, alerting you if the image becomes obstructed, degraded over time, or redirected without consent.
This camera also supports other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
See below for available recording and video management options for this camera:
- Record directly to on-board SD Card (not included)
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
- Morphean Cloud CCTV
Example Use Cases
This advanced PTZ camera is ideal for use in a range of applications:
- City centres and public areas
- Transport hubs
- Stadiums and arenas
- Shopping centres
- Airport runways
- Motorways and junctions
- Car parks
- Perimeter fences
Models Available
- AXIS Q6358-LE NM - PTZ camera (No midspan) (02977-301)
- AXIS Q6358-LE - PTZ camera (Includes audio and I/O midspan) (02977-003)
Accessories included
- Camera
- Installation guide
- Windows® decoder 1-user license
- 90W Midspan (including power cable) (model dependent)
- IP66-rated network connector
- Repaint template
- Paint paper
Key technical features of the AXIS Q6358-LE outdoor PTZ camera
Camera |
|
| Environment: | outdoor |
| Type: | PTZ |
| Sensor: | 1/2” progressive scan CMOS |
| Lens: | Optical zoom: 31x
Zoom speed: <1 sec between any zoom value Focal length: 6.91 – 214.64 mm Horizontal field of view: 60.6°– 2.0° Vertical field of view: 36.5°– 1.1° Laser focus, autofocus, P-iris |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | Colour: 0.06 lux at 30 IRE, F1.36
B/W: 0.001 lux at 30 IRE, F1.36, 0 lux with IR illumination on Colour: 0.3 lux at 50 IRE, F1.36 B/W: 0.002 lux at 50 IRE, F1.36, 0 lux with IR illumination on |
| Pan/Tilt/Zoom: | Pan: 360° endless, 0.05°– 550°/s
Tilt: +20 to -90°, 0.05°– 500°/s Zoom: 31x optical, 12x digital, Total 372x zoom Quick-zoom, nadir flip, 300 preset positions, tour recording (max 10, max duration 16 minutes each), guard tour (max 100), control queue, on-screen directional indicator, set new pan 0°, adjustable zoom speed, speed dry |
| IR illumination: | OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 300 m (984 ft) or more depending on the scene |
Imaging |
|
| Resolution: | 3840x2160 4K UHD |
| Frame rate: | Up to 50/60 fps (50/60 Hz) in all resolutions |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video compression: | AV1
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Video streaming: | Multiple, individually configurable streams in AV1, H.264, H.265 and Motion JPEG
Axis Zipstream technology in AV1, H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR AV1/H.264/H.265 Low latency mode Video streaming indicator |
| Image settings: | Compression, color, brightness, sharpness, white balance, exposure control, exposure zones, image freeze on PTZ, scene profiles, rotation, electronic image stabilization (EIS), defogging Contrast, local contrast, autofocus, Forensic WDR: Up to 120 dB depending on scene, 100 individual polygon privacy masks including mosaic and chameleon privacy masks |
| Installation aids: | Pixel counter, remote focus, level grid, remote zoom (for 29 mm lens only), remote pan and tilt (for 29 mm lens only), traffic camera installation assistance |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, AXIS OSDI Zone, Orientation Aid PTZ, advanced gatekeeper, autotracking 2 Supported Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, tailgating detection, PPE monitoringBETA, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: confidence, position |
Video Management |
|
| On-camera recording: | Support for SD/SDHC/SDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Support for recording to network-attached storage |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-9 |
| Audio: | Audio input and output through portcast technology |
| Power: | IEEE802.3bt Type 3 Class 6
Possibility to optimize power consumption of camera: Full power: typical 13.7 W (no IR), max 51 W Low power: typical 13.7 W (no IR), max 30 W. With IR: 40 W Features: power profiles, power meter |
| Connectors: | RJ45 10BASE-T/100BASE-TX/1000BASE-T
RJ45 Push-pull Connector (IP66) Audio: Audio and I/O connectivity via portcast technology |
| Dimensions: | Height: 261 mm (10.3 in)
With weather shield: ø 239 mm (9.4 in) Without weather shield: ø 192 mm (7.6 in) |
| Weight: | 4 400 g (9.7 lb) |
| Casing: | IP66-, IP67-, NEMA 4X- and IK10-rated
Colour: white NCS S 1002-B Repaintable metal casing (aluminum), hard coated Polycarbonate (PC) clear dome with Sharpdome technology |
| Operating temperatures: | Full power: -50 °C to 55 °C (-58 °F to 131 °F)
Low power: -10 °C to 55 °C (14 °F to 131 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Arctic Temperature Control: Start-up as low as -40 °C (-40 °F) Humidity 10–100% RH (condensing) |
| Warranty: | 5-year |
| Firmware support to: | 31-12-2033 |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account
management, password protection, AES-XTS-Plain64
256bit SD card encryption
Hardware: Axis Edge Vault cybersecurity platform Secure keystore: secure element (CC EAL6+, FIPS 140-3 Level 3), system-on-chip security (TEE) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3 , IEEE 802.1AE (MACsec PSK/EAP-TLS), HTTPS/HSTS3 , TLS v1.2/v1.33 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
