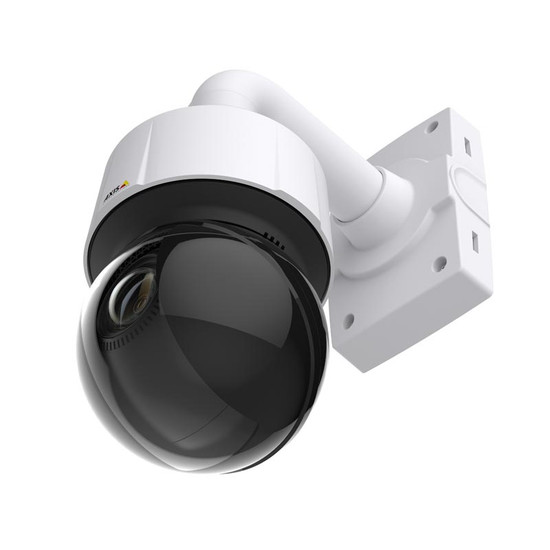

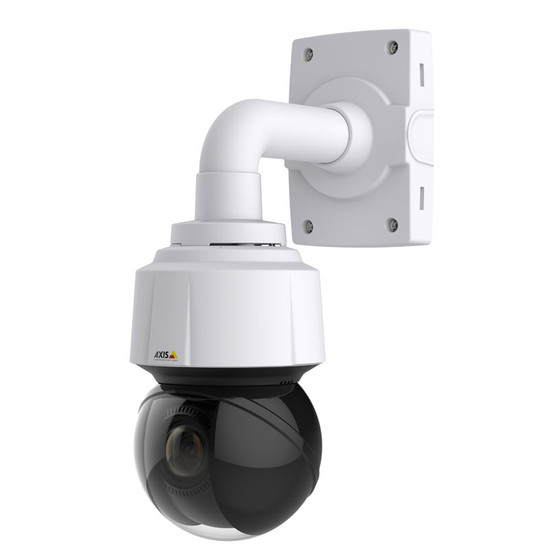

Axis Q6128-E outdoor PTZ dome IP camera with 4K UltraHD, 360° pan, 12x optical zoom with autofocus and Sharpdome technology

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Outdoor dome from Axis features full pan/tilt/zoom functionality with 12x optical zooming. Ideal for demanding applications that require fast-paced and reliable recording, in a variety of lighting environments.

  • Axis Sharpdome Speed Dry functionality
  • Axis Gatekeeper analytics supported
  • PoE+ supplies power and connectivity
  • 360° pan & 12x optical zooming
  • 4K Ultra HD resolution
Hurry! Only left

This product is discontinued, an alternative model is the Axis Q6318-LE

Overview of the Axis Q6128-E

This versatile PTZ network camera by Axis delivers high performance, 4K UltraHD resolution at 25 frames per second (fps). Part of the Q61 Sharpdome series, this advanced model has full pan/tilt/zoom functionality and 12x optical zoom for in depth investigation. The unit’s IK08 and IP66 rated housing, combined with support for true day/night recording, enables round-the-clock monitoring of outdoor areas.

Variable speed 360° panning at speeds of up to 700°/s provides quick and precise navigation across a wide area, ideal for closely monitoring a person or incident. Axis’ innovative Sharpdome technology allows the camera to provide optimal image sharpness and precision in all pan and tilt positions, enabling clear identification of objects, even up to 20° above the horizon.

A range of advanced imaging technologies help the camera to deliver sharp, detailed footage in a variety of lighting conditions. Electronic Image Stabilisation (EIS) helps to reduce the effects of camera movement from wind or vibrations. An additional feature of Axis’ Sharpdome technology is a Speed Dry function that vibrates the dome at high speed to remove water droplets. This ensures clear images can be captured in rainy conditions or environments where the camera is subject to high pressure cleaning.

Video motion detection methods can be configured to help provide reliable and accurate security monitoring. Axis’ Gatekeeper technology enables the camera to automatically move to a pre-set position when motion is detected in a pre-defined area, allowing further analysis and easier identification when investigating events. Additionally, the integrated shock detection provides reliable, real-time detection of vandalism attempts.

Support for High Power-over-Ethernet (PoE+) allows both power and network connection to be delivered to the camera via a single cable, simplifying installation. H.264 and M-JPEG compression standards are supported in this unit, providing flexible storage and bandwidth management. Additionally, local storage is enabled with the use of an SD card (not included) which can also be utilised as a data backup if network connection is lost.

Key features & benefits

  • 4K Ultra HD resolution at 25 fps provides high quality video footage, ideal for the surveillance of large areas
  • Full PTZ functionality and variable speed pan / tilt movements provide responsive navigation
  • True day/night functionality with IR cut filter provides round-the-clock monitoring
  • IK08 and IP66 rated housing provides protection against harsh outdoor conditions
  • Sharpdome technology provides an optimal image in all pan and tilt positions, including up to 20° above the horizon
  • Improved video quality when the camera is subject to vibrations with Electronic Image Stabilisation (EIS) technology
  • Speed Dry function removes water droplets from the dome for clear video capture
  • Axis Gatekeeper automatically moves the camera to a pre-set position when motion is detected in a user-defined area for fast, efficient surveillance
  • Shock Detection functionality alerts operators to potential vandalism attempts
  • PoE+ supplies power to the camera through the network cable for cost-effective installation
  • Both H.264 and MJPEG are supported allowing flexible system configuration via dual streaming
  • Support for SD card (not included) recording that can be used as a backup data storage solution in the case of network failure

Compatible recording platforms

  • Axis Camera Station
  • Milestone XProtect
  • Morphean Cloud CCTV
  • CamStreamer Cloud

Typical applications

The Axis Q6128-E network camera is an advanced IP CCTV solution providing smooth video at up to 4K Ultra HD resolution. This advanced PTZ is ideal for demanding applications that require fast-paced and reliable recording, in a variety of lighting environments. Typical applications include sports stadiums, outdoor shopping areas and city surveillance.



  • IP66-rated RJ45 connector kit
  • High PoE Midspan 1-port
  • Installation guide
  • Windows decoder 1-user license

Optional (please select from the accessories tab if required):

  • SD card
  • Mounting accessories
Back To Top

Key technical features of the Axis Q6128-E


Environment: outdoor (IP66, IK08 and NEMA 4X rated)
Type: PTZ dome
Sensor: 1/2.3” Progressive scan CMOS
Lens: 3.9–46.8 mm, F1.8–2.0, horizontal field of view: 70.7˚–6.2˚, vertical field of view: 43.5˚–3.5˚, autofocus, auto-iris
PTZ: pan: 360° endless 0.05°–700°/s, tilt: +20 to -90° 0.05°–500°/s , zoom: 12x optical, 12x digital, 256 preset positions, tour recording, guard tour, adjustable zoom speed, Speed Dry
Power: PoE+ midspan 1–port: 100–240 V AC, max 37 W IEEE 802.3at Type 2 Class 4, camera consumption: typical 14 W, max 25 W
Memory: 1 GB RAM, 256 MB Flash


Resolution: 3840 x 2160 UltraHD 4K to 640 x 360
Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
Frame-rate: up to 50 fps @1080p, up to 25fps @4K
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, VBR/MBR H.264
Day/night: automatically removable infrared cut-filter
Minimum illumination: colour: 0.45 lux at 30 IRE, F1.8, b/w: 0.03 lux at 30 IRE, F1.8, colour: 0.6 lux at 50 IRE, F1.8, b/w: 0.05 lux at 50 IRE, F1.8
Video overlay: text and image
Imaging: compression, colour, brightness, sharpness, white balance, exposure control, exposure zones, rotation, backlight compensation, fine tuning of behaviour at low light, Electronic Image Stabilisation (EIS), defogging, manual shutter time, text and image overlay, image freeze on PTZ, highlight compensation

Viewing, detection & recording

Privacy masking: 25 individual 3D privacy masks
Number of users: not given
Alarm detection: detectors: live stream accessed, motion detection, shock detection, hardware: network, temperature, input signal: manual trigger, virtual inputs, PTZ: autotracking
Alarm action: overlay text, PTZ preset, guard tour, video recording to edge storage, autotracking, day/night mode, pre- and post-alarm video buffering, send SNMP Trap, file upload via FTP, SFTP, HTTP, HTTPS, and email, notification via email, HTTP, HTTPS, and TCP
Pre-/post-alarm buffer: yes
On-camera recording: support for SD/SDHC/SDXC card (card not included)
Direct-to-NAS storage: yes
Recording software supported: Axis Camera Station, Axis Companion software


Power: High PoE midspan 1–port: 100–240 V AC, max 74 W, IEEE 802.3at Type 2 Class 4
Network: RJ45 for 10BASE-T/100BASE-TX PoE
SD card slot: SD card
Other: RJ45 10BASE-T/100BASE-TX/1000BASE-T, RJ45 Push-pull Connector (IP67)


Dimensions: with mounting hook: 274 (H) x 165 (W) x 165 (D) mm, without mounting hook: 256 (H) x 165 (W) x 165 (D) mm
Weight: 3 kg
Casing: IK08, IP66- and NEMA 4X-rated, metal casing (aluminium), polycarbonate (PC) clear dome with Sharpdome technology, PVC free
Warranty: 5 years
Mounting methods: wall or ceiling (mounting brackets not included)
Operating temperatures: -40°C to 70°C
Power consumption: PoE+ midspan 1–port: 100–240 V AC, max 37 W IEEE 802.3at Type 2 Class 4, camera consumption: typical 14 W, max 25 W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP
QoS: yes
Security: password protection, IP address filtering, HTTPS encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralised certificate management
ONVIF compliant: yes, profile S
