| 01483-002

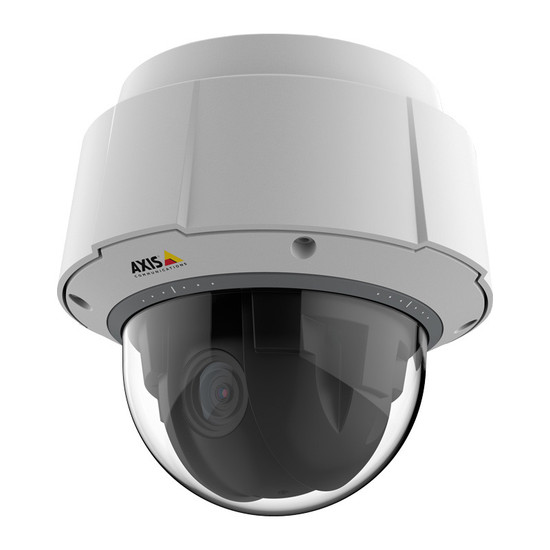

Axis Q6054-E Mk III outdoor PTZ dome IP camera with HD 720p resolution, 30x optical zoom, 360° panning and Lightfinder

Free delivery on mainland UK and most EU countries Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, an alternative model is the Axis Q6075-E

Overview of the Axis Q6054-E Mk III

This PTZ dome by Axis delivers round-the-clock, HD 720p video capture at up to 50 frames per second (fps). Its robust, IK10-rated metal housing offers protection in exposed areas and regions of interest can be examined in detail using the camera’s full pan/tilt functionality and 30x optical zoom. The unit also includes Axis Lightfinder, focus recall and is supplied with a High Power-over-Ethernet (PoE) midspan.

Users are able to precisely navigate across wide areas using the camera’s endless 360° pan and variable pan/tilt movements, helpful when closely monitoring activity. Focus recall technology is also included and helps to improve PTZ performance by providing instant focus in predefined areas – even in difficult lighting. This helpful feature removes the need to manually focus or wait for autofocus to adjust and is useful in scenarios that require a lot of manual operation using a joystick.

Wide dynamic range (WDR) allows details in scenes with bright and dark areas to be viewed clearly, whilst Axis Lightfinder technology supports the capture of full colour images - even in extreme levels of low light. Electronic Image Stabilisation (EIS) is also supported and helps to reduce the effects of camera movement from wind or vibrations.

A range of motion detection alarms can be configured to alert users of activity in pre-defined areas of the scene. These alarms can also be used in combination with Axis’ Active Gatekeeper so that if motion is detected, the camera will pan to a preset position and then auto track the object or individual.

The unit’s tough vandal-resistant housing makes it suitable for deployment in external areas and Axis’ Arctic Temperature Control is included to enable safe start-up in temperatures as low as -40°C.

Axis' Zipstream technology analyses and optimises the video stream in real time, recording interesting detail in high quality, whilst filtering other areas out to reduce bandwidth and storage use. Support for High PoE supplies power and network connectivity to the unit over a single cable, reducing cabling for a cost-effective installation solution. In addition, integrated SD card storage (card not included) provides a handy data back up in the case of network failure.

Key features & benefits

  • HD 720p resolution at 50 fps delivers high quality IP CCTV monitoring
  • Full PTZ functionality and variable speed pan/tilt movements provide responsive navigation
  • Round-the-clock monitoring is supported with removable IR cut filter
  • 30x optical zoom allows regions of interest to be investigated in real-time
  • Focus recall improves PTZ performance and provides instant focus in predefined areas
  • Wide dynamic range (WDR) improves image quality in scenes with high contrast lighting
  • Axis Lightfinder increases light sensitivity for improved video capture in very low light
  • Effects of camera movement are reduced with Electronic Image Stabilisation (EIS) technology
  • Motion detection alarms and Active Gatekeeper with auto tracking help provide reliable security monitoring
  • IP66 and IK10 rated housing offers protection against harsh weather conditions
  • Artic Temperature Control pre-heats the camera so it can start up in very low temperatures
  • Reduced bandwidth levels with Axis’ award winning Zipstream technology
  • Support for High PoE reduces cabling and offers a cost-effective installation solution
  • Integrated SD card recording provides a handy data backup if network connection is lost

Compatible recording platforms

  • Axis Camera Station
  • Milestone XProtect

Typical applications

The Axis Q6054-E Mk III PTZ dome network camera is an ideal solution for organisations requiring 24-hour monitoring in exposed areas. Typical applications include university campuses, warehouse loading bays and car parks.



  • Axis High PoE 60 W midspan 1-port
  • RJ45 push-pull connector (IP66)
  • Sunshield
  • Installation Guide
  • Windows decoder 1-user license

Optional (please select from the dropdown menu above if required):

  • SD card
  • Mounting accessories
Back To Top

Key technical features of the Axis Q6054-E Mk III

Environment: outdoor (IP66, IK10, NEMA 4X-rated)
Type: PTZ dome
Sensor: 1/2.8" progressive scan CMOS
Lens: f=4.3-129 mm, F1.6-4.7, autofocus, auto iris, horizontal angle of view: 63.8° - 2.6°
PTZ: pan: 360° endless, 0.05-450°/s, tilt: 220°, 0.05-450°/s, zoom: 30x Optical, 12x digital, total 360x zoom, e-flip, 256 preset positions, tour recording, guard tour, control queue, on-screen directional indicator, set new pan 0°, adjustable zoom speed, focus recall
Power: Axis High PoE midspan 1-port: 100-240 V AC, max 74W
Memory: 512 MB RAM, 256 MB Flash
Resolution: (1280 x 720) to (320 x 180)
Compression: H.264 (MPEG-4 Part 10/AVC) baseline, main and high profiles, Motion JPEG
Frame-rate: up to 50 fps in all resolutions
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, VBR/MBR H.264, Axis' Zipstream technology
Day/night: automatically removable infrared cut-filter
Minimum illumination: colour: 0.15 lux at 30 IRE F1.6, B&W: 0.03 lux at 30 IRE F1.6, colour: 0.2 lux at 50 IRE F1.6, B/W: 0.04 lux at 50 IRE F1.6
Video overlay: text and image
Imaging: manual shutter time, compression, colour, brightness, sharpness, white balance, exposure control. exposure zones, fine tuning of behaviour at low light, lightfinder, rotation: 0°, 180°, text and image overlay, image freeze on PTZ, defogging, backlight compensation, scene profiles, focus recall, electronic image stabilisation, wide dynamic range: up to 120 dB depending on scene
Viewing, detection & recording
Privacy masking: 32 individual 3D privacy masks
Number of users: not given
Alarm detection: video motion detection, support for Axis Camera Application Platform
Alarm action: day/night mode, overlay text, video recording to edge storage, send SNMP trap, PTZ preset, start/stop guard tour, file upload via FTP, SFTP, HTTP, HTTPS network share and email, notification via email, HTTP, HTTPS and TCP
Pre-/post-alarm buffer: yes
On-camera recording: support for SD/SDHC/SDXC card
Direct-to-NAS storage: yes
Recording software supported: Axis Camera Station
Power: High PoE midspan 1-port: 100-240 V AC
Network: RJ45 for 10BASE-T/100BASE-TX PoE
SD card slot: SD card
Other: none
Dimensions: Ø232 x 280 mm
Weight: 3.7kg
Casing: IP66, IK10, NEMA 4X-rated, metal casing (aluminium) acrylic (PMMA) clear dome, sunshield (PC/ASA)
Warranty: 3 years
Mounting methods: mounting options available separately
Operating temperatures: with 30W midspan: -20°C~50°C, with 60W midspan: -50°C~50°C, maximum temperature (intermittent): 60°C, arctic temperature control: start-up as low as -40°C
Power consumption: typical: 16W, max: 60W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP
QoS: yes
Security: password protection, IP address filtering, HTTPS encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralised certificate management
ONVIF compliant: yes, profile S
