| 01021-001

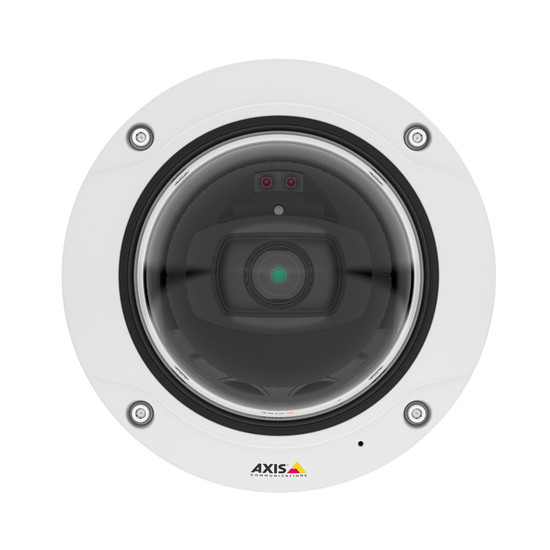

Axis Q3517-LV indoor vandal-resistant dome IP camera with 5MP resolution, 40m IR, Forensic WDR, Lightfinder and PoE

Free delivery on mainland UK and most EU countries Check delivery charges to where you are.

Suitable for installation in exposed outdoor locations, this IK10-rated Axis dome IP camera provides 24-hour monitoring and features advanced imaging technologies for clear image capture in any lighting condition.

  • Lightfinder & Forensic WDR technologies
  • Supports 2-way audio via external devices
  • OptimisedIR night-vision up to 40m
  • Varifocal lens: 96°-50° viewing angle
  • 5MP resolution
Hurry! Only left

This product is discontinued, an alternative model is the Axis Q3538-LVE

Overview of the Axis Q3517-LV

This high-performance dome IP camera by Axis delivers smooth 5MP resolution at full frame rate, complete with true day/night recording and up to 40m of infrared (IR) illumination. Its IK10-rated, vandal-resistant housing provides robust protection in exposed indoor areas and a selection of advanced imaging technologies are also supported for clear image capture – in any lighting condition. Additional features include edge storage and support for Power-over-Ethernet (PoE).

The unit’s varifocal lens provides wide horizontal views (up to 96°) and allows the desired viewing angle to be easily set during installation. Multi-view streaming is also supported which allows a maximum of 8 areas in the camera's field of view to be cropped and streamed separately for live viewing or recording – ideal when closely monitoring areas of interest.

Built-in IR LEDs provide up to 40m of night vision, while Axis' OptimisedIR technology ensures an evenly illuminated image by automatically adapting the angle of illumination to the zoom level set. Imaging technologies such as Forensic WDR ensure the capture of details in high contrast scenes, whilst Axis’ Lightfinder provides full colour viewing in ambient light extremes. In addition, Electronic Image Stabilisation (EIS) is also included and helps to reduce the effects of camera movement from wind or vibrations.

Two-way communication is supported with the connection of a microphone and speaker (not included) via the integrated audio I/O ports. Various audio, motion detection and tampering alarms can be used alongside connected external devices to trigger alarms, start recording to the on-board microSD card (not included) and also alert users of activity via email notification.

Installation is simplified by a handful of features including support for PoE, as well as remote zoom and focus which eliminates the need for hands-on fine tuning. The camera also features Axis' Zipstream technology which analyses the video in real-time and continuously optimises the stream. Details deemed more important are maintained in the stream and unnecessary data is removed - lowering bandwidth and storage requirements by up to 50%.

Please note: this camera does not come with a power supply, please select from the accessories tab if required.

Key features & benefits

  • Delivers 5MP resolution at up to 25 frames per second (WDR on), or 4MP at a maximum of 50 fps (WDR off)
  • Integrated IR-cut filter provides true day/night functionality for round-the-clock monitoring of indoor areas
  • Tough, IK10-rated housing offers robust protection in locations where camera tampering may occur
  • Varifocal lens allows the viewing angle to be adjusted during installation for optimum scene capture
  • Multiple sections of the original image can be cropped and viewed simultaneously using multi-view streaming
  • Up to 40m OptimisedIR night vision for clear CCTV monitoring in darkness
  • Forensic WDR enables details in scenes with both bright and dark areas to be viewed clearly
  • Axis' Lightfinder technology can deliver full colour images in extreme low light conditions
  • Narrow scenes are monitored effectively using Axis Corridor Format that vertically orientates the video stream
  • Two-way audio is supported with the connection of a microphone and speaker (not included)
  • Configurable audio, video motion detection and tampering alarms help to enhance security monitoring
  • External devices can be connected via I/O port terminal block for enhanced alarm signalling
  • Remote zoom and focus, pixel counter, auto rotation and levelling assistant features help to simplify installation
  • PoE supplies power and network connection over one cable for quick and cost-effective deployment
  • Axis Zipstream technology lowers bandwidth by analysing and optimising the video stream in real-time
  • Edge recording to MicroSD card (not included) provides a data back up in the event of network failure

Compatible recording platforms

  • Axis Camera Station
  • Milestone XProtect
  • Morphean Cloud CCTV

Typical applications

The Axis Q3517-LV dome IP camera is a high-performance choice for businesses requiring detailed monitoring of exposed indoor locations – 24 hours a day. Typical applications include airports, large shopping centres and manufacturing warehouses.



  • Installation guide
  • Windows decoder 1-user licence
  • Drill hole template
  • Cable gaskets
  • I/O and DC connectors
  • Connector guard
  • Resistorx T20 L-key
  • Mounting bracket

Optional (please select from the accessories tab if required):

  • PoE midspan
  • MicroSD card
Back To Top

Key technical features of the Axis Q3517-LV


Environment: indoor (IP52, IK10-rated)
Type: fixed
Sensor: 1/1.8” progressive scan RGB CMOS
Lens: varifocal, 4.3–8.6 mm, F1.5 horizontal field of view: 96°–50°, remote focus and zoom, P-Iris control, IR corrected, IR range: 40m
PTZ: digital PTZ, optical zoom, preset positions
Memory: 1 GB RAM, 512 MB Flash
Power: Power-over-Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, typical 6.5W, max 12.9W
Audio: two-way, external microphone input or line input, line output, AAC LC 8/16/32/48 kHz, G.711, G.726 ADPCM 8kHz, Opus 8/16/48 kHz, configurable bitrate


Resolution: (3072 x 1728) to (160 x 120)
Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
Frame-rate: 5MP with WDR: 25 fps, 4MP without WDR: 50 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, Axis' Zipstream technology in H.264, controllable frame rate and bandwidth VBR/MBR H.264
Video overlay: text and image
Day/night: automatically removable infrared-cut filter
Minimum illumination: 5MP @ 25 fps with WDR and Lightfinder: colour: 0.12 lux, B/W: 0.02 lux, 0 lux with IR illumination, 4MP @ 50 fps: colour: 0.24 lux, B/W: 0.04 lux, 0 lux with IR illumination
Imaging: compression, colour, brightness, sharpness, contrast, local contrast, white balance, exposure control (including automatic gain control), defogging, exposure zones, fine tuning of behaviour at different light levels, Forensic WDR: up to 120 dB depending on scene, Electronic Image Stabilisation, barrel distortion correction, dynamic text and image overlay, mirroring of images, straighten image, rotation: 0°, 90°, 180°, 270°, auto, including Corridor Format

Viewing, detection & recording

Privacy masking: yes
Number of users: not given
Alarm detection: Axis video motion detection, active tampering alarm, audio detection, support for Axis Camera Application Platform enabling installation of Axis Perimeter Defender, Axis Digital Autotracking and third-party applications
Alarm action: file upload: FTP, SFTP, HTTP, HTTPS network share and email, notification: email, HTTP, HTTPS and TCP, external output activation, video and audio recording to edge storage, play audio clip, zoom preset, overlay text, send SNMP trap, send video clip
Pre-/post-alarm buffer: yes
On-camera recording: support for microSD/microSDHC/microSDXC card recording
Direct-to-NAS storage: yes
Recording software supported: Axis Camera Station


Network: RJ45 10BASE-T/100BASE-TX PoE
Audio: two-way, external microphone input or line input, line output,
Alarm I/O: terminal block for two configurable supervised inputs/digital outputs (12 V DC output, max. load 50 mA), terminal block for DC input
Video: not given


Dimensions: Ø161.8 x 123.6 m
Weight: 1.4kg
Warranty: 5 years
Mounting methods: mounting bracket included
Operating temperatures: –10°C to 50°C
Power consumption: typical: 6.9W, max. 14.5W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPS, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
QoS: yes
Security: password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, Centralized Certificate Management
ONVIF compliant: yes
