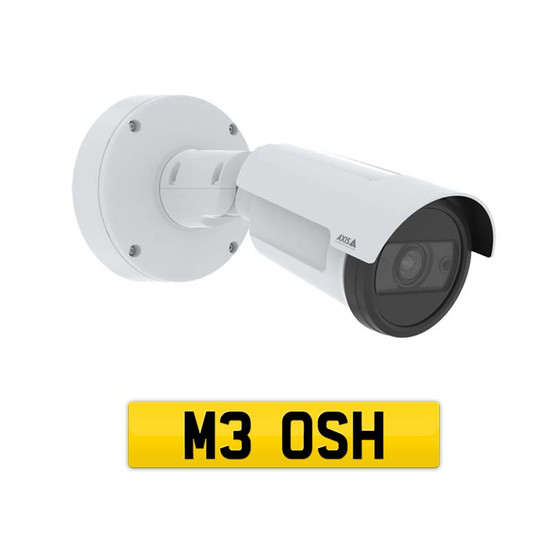

Overview of the AXIS P1465-LE-3 Licence Plate Verifier Kit
- AXIS P1465-LE camera with built-in AXIS License Plate Verifier software
- Captures full HD 1080p video for reliable plate recognition
- 29mm varifocal telephoto lens delivers a tight 11°–29° horizontal view
- Detects number plates at distances of up to 20m at speeds up to 65mph
- Forensic WDR, Lightfinder 2.0 and OptimizedIR deliver clear images 24/7
The AXIS P1465-LE-3 License Plate Verifier Kit is an all-in-one solution for reliable number plate capture in both free-flow traffic and access control scenarios. It includes the AXIS P1465-LE network camera with AXIS License Plate Verifier preinstalled, offering full HD 1080p resolution and a 29 mm telephoto varifocal lens for long-range detection. Plates can be read at distances of up to 20 m, even at vehicle speeds of up to 65 mph. Electronic Image Stabilisation (EIS) ensures a stable picture even at extended distances and during vibrations. Built for outdoor use, it features IP66/67 and IK10 ratings, along with OptimizedIR, Forensic WDR and Lightfinder 2.0 for clear imaging in any conditions. Ideal for barrier control, gated entries, or perimeter monitoring.
We recommend using the AXIS TQ1602-E conduit back box for secure installation and tidy cable management.
Video Analytics
AXIS License Plate Verifier provides real-time licence plate recognition for vehicle access, search, parking management, and free-flow traffic applications. It captures plates at speeds up to 65 mph and runs entirely on the camera, eliminating the need for external servers and reducing bandwidth use. Easily link with access control systems and define rules for seamless entry management in car parks, toll roads, and similar environments.
This camera also supports AXIS Speed Monitor, AXIS Perimeter Defender and other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
See below for available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
- Road monitoring - capture vehicle detail, improve traffic flow and ease congestion, aid city planning, combine with radar for speed management and fine enforcement, collate data and develop insights, identify repeat offenders
- Access control - identify licence plates added to whitelists and blacklists, toll bridges and tunnels
- Car parks - vehicle detection, object counting in area, loitering warning within restricted zones
Accessories included
- Camera
- Installation guide
- TORX® L-keys
- Terminal block connector
- Connector guard
- Cable gaskets
- AXIS Weather Shield L
- Owner authentication key
Key technical features of the AXIS P1465-LE-3 Licence Plate Verifier Kit
Camera |
|
| Environment: | outdoor |
| Type: | Fixed bullet |
| Image sensor: | 1/2.8” progressive scan RGB CMOS
Pixel size 2.9 µm |
| Lens: | Varifocal, remote focus and zoom, P-Iris control, IR corrected
Varifocal, 10.9-29 mm, F1.7-1.7 Horizontal field of view 29˚-11˚ Vertical field of view 16˚-6˚ Minimum focus distance: 2.5 m (8.2 ft) |
| Day/night: | Automatic IR-cut filter
Hybrid IR filter |
| Minimum illumination: | 0 lux with IR illumination on
Colour: 0.07 lux, at 50 IRE F1.7 B/W: 0.01 lux, at 50 IRE F1.7 |
| IR illumination: | OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 45 m (150 ft) or more depending on the scene |
Imaging |
|
| Resolution: | 16:9: 1920x1080 to 160x90
16:10: 1280x800 to 160x100 4:3: 1280x960 to 160x120 |
| Frame rate: | With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all
resolutions
No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Up to 20 unique and configurable video streams1
Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white
balance, day/night threshold, exposure mode, exposure
zones, defogging, compression, orientation: auto, 0°,
180° including, mirroring of images, dynamic text and
image overlay, polygon privacy masks
Scene profiles: forensic, vivid, traffic overview, license
plate
Electronic image stabilization |
| Installation aids: | Pixel counter, remote zoom (3x optical), remote focus, auto rotation |
ANPR Software |
|
| Licences: | AXIS License Plate Verifier license included |
| Settings: | Define area of interest in scene.
Allow- and blocklist logic. Barrier mode: Open to all, open to allowlisted, open to all but blocklisted. Minimum width: 130 pixels for one-row license plates; 70 pixels for two-row license plates. FIFO event log entries including thumbnail image of license plate. Up to 1000 entries on camera storage. Up to 100 000 entries on AXIS Surveillance Cards. Configurable retention time of stored events |
| Detection range: | 7.0 to 20 m (20 to 65 ft) |
| Vehicle speed: | Up to 105 km/h (65 mph) |
| Detection time: | Less than 1 second |
| Typical applications: | Free-flow traffic monitoring
Reads licence plates at speeds up to 105 km/h (65 mph). Ideal for city centers, larger access roads, toll plazas, and areas like campuses, harbors or airports. Enables event triggers in a VMS, such as AXIS Camera Station to facilitate LPR-based search. Efficient vehicle access control Efficiently automates the entry and exit procedures for authorized vehicles at depots, service centers, lots, priority lanes, parking facilities, and various other locations. Validates licence plates against allowlists or blocklists for efficient, seamless access control. Supports up to 10,000 license plates in each list. Adding more functionality Integrate with Axis network door controllers for increased options and functionality. Axis network door controllers, in conjunction with AXIS Camera Station Secure Entry, support more advanced access rules, schedules, and detailed event logs. Compatible with various partner software, offering diverse credential options and tailored features to meet specific needs |
Analytics |
|
| Applications: | Included
AXIS Image Health Analytics AXIS License Plate Verifier AXIS Live Privacy Shield AXIS Video Motion Detection, Active tampering, shock detection Supported AXIS Perimeter Defender, AXIS Speed Monitor Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Axis Image Health Analytics: | Detection settings:
Tampering: blocked image, redirected image Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
Video Management |
|
| On-camera recording: | Support for microSD/microSDHC/microSDXC card Recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS |
General |
|
| System on chip (SoC): | ARTPEC-8 |
| Power: | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3
Typical: 7.9 W, max 12.95 W, 10–28 V DC, typical 7.2 W, max 12.95 W |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/
1000BASE-T
Audio: 3.5 mm mic/line in I/O: Terminal block for 1 alarm input and 1 output (12 V DC output, max. load 25 mA) Power: DC input |
| Dimensions: | Ø132 x 132 x 280 mm (Ø5.2 x 5.2 x 11.0 in)
Effective Projected Area (EPA): 0.022 m2 (0.24 ft2) |
| Weight: | With weather shield: 1.2 kg (2.65 lb) |
| Casing: | IP66/IP67-, NEMA 4X-, and IK10-rated casing
Polycarbonate blend and aluminium Colour: white NCS S 1002-B For repainting instructions, go to the product’s support page |
| Operating temperatures: | -40 °C to 60 °C (-40 °F to 140 °F)
Maximum temperature according to NEMA TS2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C Humidity 10–100% RH (condensing) |
| Warranty: | 5-year |
| AXIS OS supported to: | 31-12-2031 |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account management, password protection Software: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection Software: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Software: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure keystore: secure element (CC EAL 6+), systemon-chip security (TEE) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)5 , IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS5 , TLS v1.2/v1.35 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
