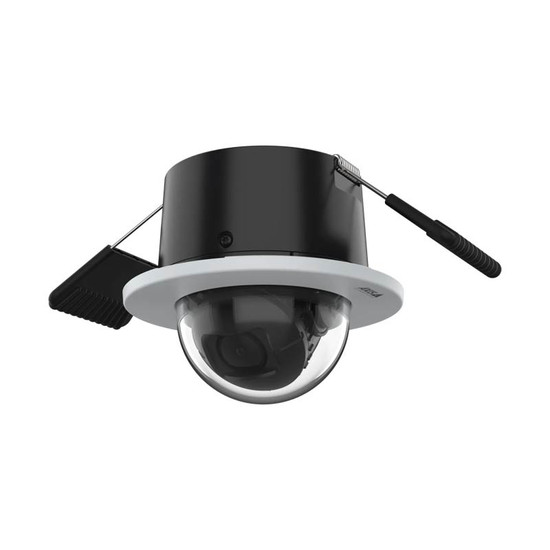

Overview of the AXIS M3098-H indoor recessed dome IP camera
- Affordable recessed mini-dome camera for flush installation in indoor drop ceilings
- 4K resolution with 124° wide fixed horizontal viewing angle
- Full-colour video in difficult lighting with Forensic WDR and Lightfinder
- Deep learning analytics powered by AI for smarter detections and fewer false alarms
- Direct installation uses Bluetooth® to wirelessly view the stream for faster setup
Designed for discreet installation in indoor drop ceilings, this recessed mini-dome camera captures detailed images in 4K resolution at up to 15 fps. Despite it's small form factor, it features a light-sensitive fixed lens with 124° horizontal views for wide angle coverage of exposed areas. Forensic WDR and Lightfinder 2.0 ensure excellent clarity and full-colour video in low light and high-contrast scenes.
The camera offers next-generation video analytics for faster object detection and more accurate event analysis. Flexible mounting options means it can be mounted directly to walls and ceilings with the included mount, and runs over PoE for reduced installation costs. Configuration and setup is easy thanks to direct installation view where the camera's stream can be viewed during setup via the AXIS Installer app on mobile devices.
Analytics
AXIS Object Analytics (AOA) reliably detects, classifies, and counts people and vehicles, processing video on the edge for faster alerts. With a deep learning processing unit (DLPU), it reduces false alarms by filtering irrelevant motion. Objects are marked with colour-coded boxes, visible in the camera and management system. Configure up to 10 virtual rules like line crossing and zone entry to boost awareness. Built-in AXIS Image Health Analytics alerts if the image is obstructed or tampered with.
The integrated sound sensor uses AXIS Audio Analytics to detect key sounds such as screams, shouts, coughing fits and abrupt changes in sound level. Events triggered on the camera can be used to activate external IP devices, or trigger the camera to start recording.
This camera also supports other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
See below for available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
Flexible and versatile, this versatile mini-dome camera is ideal for dependable monitoring in environments such as:
- Office spaces and conference rooms
- Retail stores and shopping centres
- Educational buildings and classrooms
- Warehouses and industrial indoor areas
- Public transport stations and indoor terminals
Accessories included
- Camera
- Installation guide
- Owner authentication key
Key technical features of the AXIS M3098-H indoor recessed dome IP camera
Camera |
|
| Environment: | indoor only |
| Type: | Recessed dome |
| Sensor: | 1/1.8” progressive scan RGB CMOS
Pixel size 2.0 μm |
| Lens: | 3.76 mm, F2.0
Horizontal field of view: 124° Vertical field of view: 66° M12 mount, fixed iris, IR corrected |
| Day/night: | Automatic IR-cut filter
Hybrid IR filter |
| Minimum illumination: | Colour: 0.19 lux at 50 IRE, F2.0
B/W: 0.05 lux at 50 IRE, F2.0 |
| IR illumination: | N/A |
Imaging |
|
| Resolution: | 16:9: 3840x2160 to 640x360
4:3: 1440x1080 to 320x240 |
| Frame rate: | Up to 12/15 fps (50/60 Hz) with H.264 and H.2651 in all
resolutions in 8 MP mode
Up to 25/30 fps (50/60 Hz) with H.264 and H.2651 in all resolutions in 4 MP mode |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG
Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Image settings: | Saturation, contrast, brightness, sharpness, white
balance, day/night threshold, local contrast, tone
mapping, exposure mode, exposure zones, compression,
rotation: 0°, 90°, 180°, 270° including corridor format,
mirroring, dynamic text and image overlay, privacy
masks
Scene profiles: forensic, vivid |
| Installation aids: | Pixel counter, level grid |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield3, AXIS Video Motion Detection Supported Support for AXIS Camera Application Platform enabling installation of third-party applications, |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoringBETA, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with colorcoded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Audio Analytics: | Features: sound pressure level, adaptive audio
detection, audio classification
Audio classes: scream, shout, glass break, speech, coughing fit Event metadata: audio detections, classifications, sound pressure level |
| Axis Image Health Analytics: | Detection settings:
Tampering: blocked image, redirected image Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: vehicle color, upper/lower clothing color, bag, confidence, position |
Video |
|
| Video compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| On-camera recording: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | CV75 |
| Audio: | Acoustic sensor |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1
Class 2, max 3.9 W, typical (heater off) 3.4 W Features: dynamic power mode, power meter |
| Connectors: | Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| Wireless interface: | Bluetooth® 5.4 Low Energy
Bluetooth profiles: none Features: direct installation view through AXIS Installer mobile app |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the product datasheet. |
| Weight: | 194 g (0.43 lb) |
| Casing: | IP42-rated
Polycarbonate hard-coated dome Colour: white NCS S 1002-B |
| Operating temperatures: | Temperature: 0 °C to 45 °C (32 °F to 113 °F)
Humidity: 10–85% RH (non-condensing) |
| Warranty: | 5-year |
Security |
|
| Network protocols: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure keystore: Secure element (CC EAL 6+, FIPS 140- 3 Level 3), system-on-chip security (TEE) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3 , IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3 , TLS v1.2/v1.33 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
