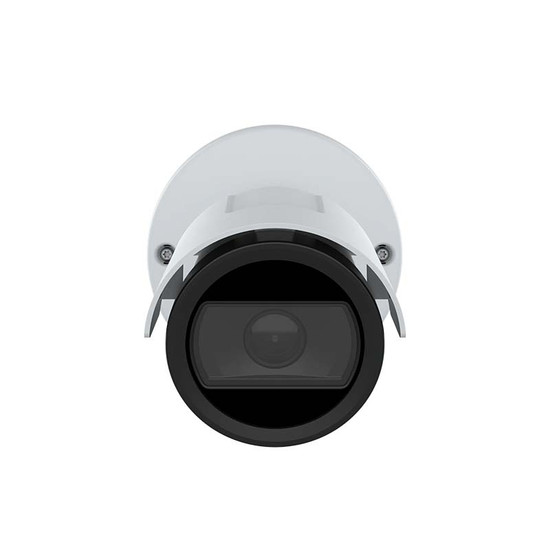

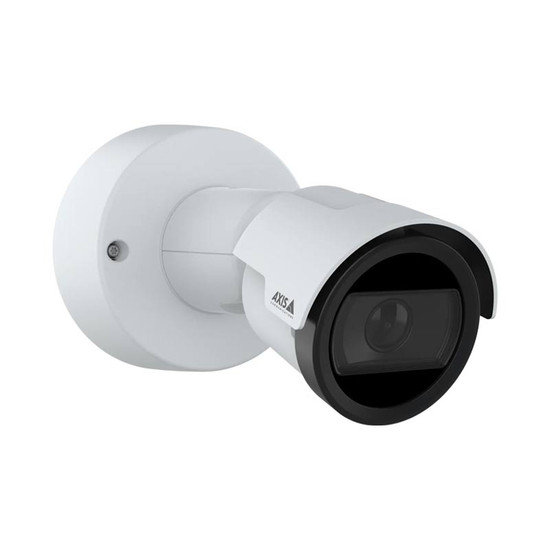

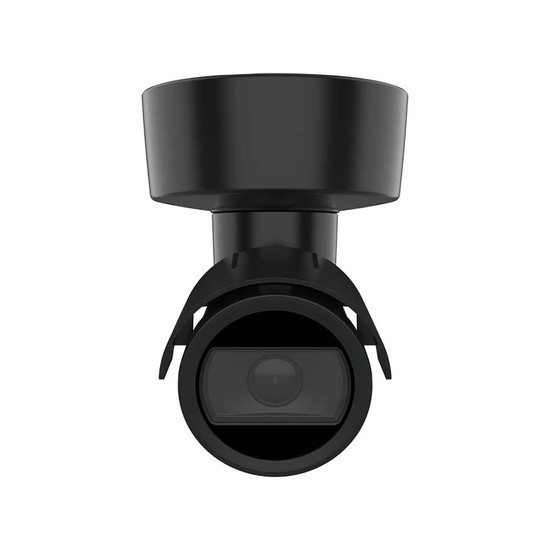

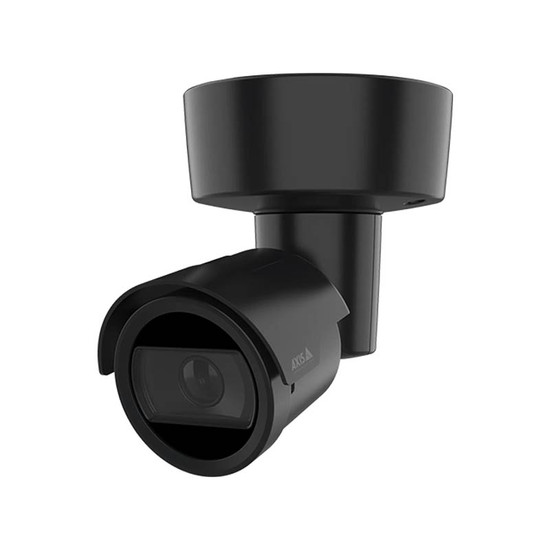

Designed for reliable, 24-hour monitoring of indoor and outdoor environments, this affordable compact bullet camera captures detailed images in 4K resolution at up to 15 fps. It features a light-sensitive fixed lens with 126° viewing angle for wide coverage of exposed areas. Forensic WDR and Lightfinder 2.0 ensure excellent clarity and full-colour video in low light and high-contrast scenes. In complete darkness, OptimizedIR illumination provides monochrome footage up to 20m range.
The camera offers next-generation video analytics for faster object detection and more accurate event analysis. Flexible mounting options means it can be mounted directly to walls and ceilings with the included mount, and runs over PoE for reduced installation costs. Configuration and setup is easy thanks to direct installation view where the camera's stream can be viewed during setup via the AXIS Installer app on mobile devices.
AXIS Object Analytics (AOA) reliably detects, classifies, and counts people and vehicles, processing video on the edge for faster alerts. With a deep learning processing unit (DLPU), it reduces false alarms by filtering irrelevant motion. Objects are marked with colour-coded boxes, visible in the camera and management system. Configure up to 10 virtual rules like line crossing and zone entry to boost awareness. Built-in AXIS Image Health Analytics alerts if the image is obstructed or tampered with.
This camera also supports other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
See below for available recording and video management options for this camera:
Flexible and versatile, this versatile mini-bullet camera is ideal for dependable monitoring in environments such as:
Camera |
|
| Environment: | indoor/outdoor |
| Type: | Compact mini-bullet |
| Sensor: | 1/1.8” progressive scan RGB CMOS
Pixel size 2.0 μm |
| Lens: | 3.7 mm, F2.0
Horizontal field of view: 126° Vertical field of view: 67° Minimum focus distance: 1.0 m (3.3 ft) Fixed iris, IR corrected |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | Colour: 0.18 lux at 50 IRE, F2.0
B/W: 0.04 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| IR illumination: | OptimizedIR with power-efficient, long-life 855 nm IR
LEDs
Range of reach 20 m (65.6 ft) or more depending on the scene |
Imaging |
|
| Resolution: | 16:9: 3840x2160 to 640x360
4:3: 1440x1080 to 320x240 |
| Frame rate: | Up to 15 fps (50/60 Hz) in all resolutions |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Up to 20 unique and configurable video streams1
Axis Zipstream technology in H.264, H.265 and AV1 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265/AV1 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping , exposure mode, exposure zones, compression, rotation: 0°, 90°, 180°, 270° including corridor format, mirroring, text and image overlay, dynamic text and image overlay, overlay widget, privacy masks |
| Installation aids: | Pixel counter, level grid |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield2, AXIS Video Motion Detection Supported Support for AXIS Camera Application Platform enabling installation of third-party applications, |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoringBETA, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with colorcoded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Image Health Analytics: | Detection settings:
Tampering: blocked image, redirected image Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: vehicle color, upper/lower clothing color, bag, confidence, position |
Video |
|
| Video compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| On-camera recording: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | CV75 |
| Audio: | Input and output through edge-to-edge pairing. |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1
Class 3, max 12.95 W, typical (heater off, IR off) 3.7 W Features: dynamic power mode, power meter |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| I/O functionality: | I/O: Terminal block for one configurable supervised
input/digital output (12 V DC output, max load 25 mA
I/O connectivity through portcast technology accessories |
| Wireless interface: | Bluetooth® 5.4 Low Energy
Bluetooth profiles: none Features: direct installation view through AXIS Installer mobile app |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the product datasheet. |
| Weight: | 490 g (1.1 lb) |
| Casing: | IP66/IP67-, NEMA 4X- and IK08-rated
Aluminum and plastic casing Colour: white NCS S 1002-B |
| Operating temperatures: | Temperature: -30 °C to 55 °C (-22 °F to 131 °F)
Humidity: 10–100% RH (condensing) |
| Warranty: | 5-year |
Security |
|
| Network protocols: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure keystore: Secure element (CC EAL 6+, FIPS 140- 3 Level 3), system-on-chip security (TEE) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3 , IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3 , TLS v1.2/v1.33 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
