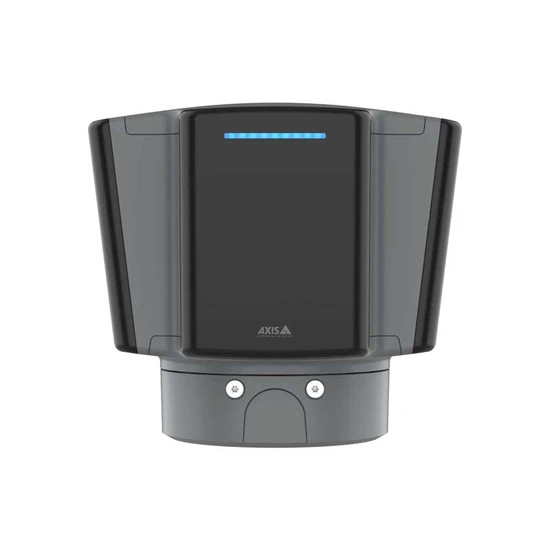

Overview of the AXIS D2124-VE network radar detector
- Detects and classifies humans and vehicles with AI-powered analytics for accurate identification and reduced false alarms
- 360° wide field of coverage with box-shaped detection zone capable of monitoring large outdoor areas effectively
- Operates 24/7 in all weather and lighting conditions, including darkness, rain and fog
- Enables optional double-knock feature with AXIS Q6225-LE camera, allowing automated tracking and enhanced visual verification
- Box-shaped surveillance zones for efficient, optimised coverage and easy system configuration
The AXIS D2124-VE network radar delivers reliable, AI-powered detection and classification of humans and vehicles across expansive areas. Its 360° coverage and long-range detection enables 24/7 operation in all weather and lighting conditions, with low power consumption supporting efficient, continuous use. Designed for flexibility, it can operate as a standalone device or be paired with the AXIS Q6225-LE PTZ camera for automated object tracking and enhanced visual verification enabled by Axis Radar Autotracking for PTZ application. To further minimise false alarms, the optional double-knock feature requires visual verification of the radar alarm before triggering an event, helping you to focus on events that matter. What's more, with PoE out, there's no additional cable drop needed during installation. Designed to be mounted on poles or rooftops, the unit is IP66/67 and IK10 rated and radar image stabilisation technology ensures more accurate detections when subjected to vibrations, making this intelligent radar well suited to large-scale outdoor deployments.
Video Analytics
Built on ARTPEC-9, this advanced radar uses AI-powered radar analytics to detect and classify people and vehicles at long range, enabling early detection well before objects are clearly visible to cameras. Box-shaped detection and recognition zones allow precise coverage, helping to focus analytics on critical areas while reducing unnecessary triggers. When paired with the AXIS Q6225-LE PTZ camera, the radar supports AXIS Radar Autotracking for PTZ enabling automated PTZ tracking and reliable visual verification. Configurable virtual zones for line crossing, object-in-area, and occupancy detection further enhance situational awareness while minimising false alarms.
This camera also supports other Axis and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
See below for available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Axis Camera Station Software
- Axis Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
- Perimeter protection for open land - Monitor large, open perimeters such as business parks, campuses, or fenced land, using radar to identify activity well before it reaches buildings or restricted zones.
- Solar and renewable energy sites - Detect movement early across large solar farms or wind facilities, where long-range radar enables reliable coverage of expansive, unmanned areas in all weather conditions.
- Ports and maritime environments - Maintain awareness across docks, quaysides, and container yards where radar performs reliably in poor visibility and wide-area coverage supports early incident response.
- Airfields and transport yards - Secure airfields, rail yards, and freight terminals with long-range detection across open spaces, enabling PTZ cameras to track and verify movement automatically.
Included Accessories
- Radar
- Installation guide
- Filter box
- TORX® T20 and T30 bits
- PoE connector cable
- RJ45 push-pull connector kit
- Lid for standalone installation
- Lid for installation with PTZ camera
- Owner authentication key
Key technical features of the AXIS D2124-VE network radar detector
Radar |
|
| Environment: | outdoor |
| Profiles: | Area monitoring |
| Sensor: | FMCW (Frequency Modulated Continuous Wave) |
| Object data: | Object type (classes: humans, vehicles, unknown), range, direction, velocity |
| Frequency: | 24.05-24.25 GHz |
| RF transmit power: | <100 mW (EIRP)
Licence-free. Unharmful radio-waves |
| Recommended mounting height: | 4–10 m (13–33 ft) |
| Recognition zone: | Area monitoring profile: up to 140 m (450 ft) when
detecting a person
Up to 200 m (650 ft) when detecting a vehicle |
| Radial speed: | Area monitoring profile: up to 80 km/h (50 mph) |
| Field of detection: | Horizontal: 360° |
| Speed accuracy: | +/- 2 km/h (1.25 mph) |
| Distance accuracy: | Area monitoring profile: 0.9 m (3 ft) |
| Angle accuracy: | <0.5° |
| Spatial differentiation: | 3 m³ |
| Data refresh rate: | 6.67 Hz |
| Coverage: | Area monitoring profile: 40,000 m2 (430,000 ft2) for
persons
79,000 m2 (850,000 ft2) for vehicles |
| Coexistence zone: | Frequency band: 24 GHz
Radius: 500 m (1640 ft) Recommended number of radars: up to 12 |
| Radar controls: | Multiple detection zones, line crossing detection with
one or two lines, exclude zones with filters for shortlived objects, object speed, object type, configurable
trigger duration
Radar transmission on/off, radar image stabilisation, grid opacity, zone opacity, color scheme, trail lifetime, detection sensitivity, swaying object filter, unknown object filter, reference map calibration with options to scale, pan, and zoom map |
Video |
|
| Video compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
AV1 Motion JPEG |
| Resolution: | 16:9: 1920x1080 to 320x200
4:3: 1440x1080 to 160x120 |
| Frame rate: | Up to 10 fps (50/60 Hz) in all resolutions |
Analytics |
|
| Event actions: | Illumination: use lights, use lights while the rule is
active
LEDs: flash status LED, flash status LED while the rule is active MQTT: send MQTT publish message Notification: HTTP, HTTPS, TCP and email Overlay text Radar: dynamic LED strip, radar autotracking, radar detection Security: erase configuration SNMP trap messages: send, send while the rule is active Images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email |
| Data streaming: | Radar metadata with relative position, GPS position, velocity, direction, and object type |
| Applications: | Supported
AXIS Radar Autotracking for PTZ (Slew to Cue |
General |
|
| System on chip (SoC): | ARTPEC-9 |
| Built-in installation aids: | Reference map calibration, sensor for tilt angle, GPS position |
| Casing: | IP66/IP67, NEMA 4X- and IK10-rated
Aluminum and plastic casing Colour: gray NCS S 5502-B |
| Power: | To power only the radar: IEEE 802.3at PoE+ Type 2 Class 4
To power a second device through PoE out: Axis High PoE 120 W
PoE output: IEEE 802.3bt, Type 4 Class 8, max 71 W Power consumption: Max 27 W, typical 14.8 W |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/
1000BASE-T PoE
Network: Shielded RJ45 1000BASE-T PoE output to power an external PoE device |
| Dynamic LED: | Dynamic LED strip with RGB (red, green, blue) LEDs and
predefined light patterns
Daylight visibility up to 60 m (197 ft) |
| Storage: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
| Dimensions: | For the overall product dimensions, see the dimension
drawing in this datasheet.
Effective Projected Area (EPA): 0.08 m2 (0.86 ft2) |
| Weight: | 7800 g (17.2 lb) |
| Box content: | Radar, installation guide, TORX® T20 screw driver, connector guard, cable gaskets, owner authentication key |
| Operating temperatures: | Temperature: -40 °C to 60 °C (40° F to 140 °F)
Humidity: 10–100% RH (non-condensing) |
| Warranty: | 5-year |
