This Axis network audio amplifier is designed to transform any passive speaker into a network audio speaker – making it ideal for use in locations where significant investment has been made into an audio system.
This Axis network audio amplifier is designed to transform any passive speaker into a network audio speaker – making it ideal for use in locations where significant investment has been made into an audio system. Together with Audio Management Software, this device provides users with the benefits of network audio.
With integrated audio synchronisation, this versatile unit enables multiple speakers to benefit from network audio via multicast. The Axis Audio Player application is pre-installed and includes a helpful range of features to simplify the delivery of audio announcements and background music, as well as control various audio settings for each speaker individually or simultaneously. Users can create and schedule playlists from music saved to the on-board MicroSD card (not included), or from a variety of the application’s supported music streaming services.
Based on an open platform, this device supports a host of software including Axis Camera Application Platform (ACAP) – providing access to a range of third-party applications. Built-in test tones are provided for calibration and verification during installation, allowing the user to optimise the speaker’s performance to its specific surroundings.
Featuring a built-in amplifier and Digital Signal Processor (DSP), it delivers a total of 15w power and requires no additional equipment – simplifying the transition towards network audio. In addition, Power-over-Ethernet (PoE) supplies power and network connection over one cable for quick and cost-effective deployment.
Please note: there is no power supply included with this unit. It is power over ethernet capable.
Included:
Optional:
|
Network Audio Amplifier
|
|
|
Audio
|
|
| Audio streaming: | one-way/two-way, mono |
| Audio compression: | MP3 in mono/stereo from 64 kbps to 320 kbps, constant and variable bit rate, sampling rate from 8 kHz up to 48 kHz |
| Supported speaker impedance: | 4-16 Ω |
|
System integration
|
|
| Application programming interface: | open API for software integration, including VAPIX, Axis Video Hosting System (AVHS) with One-click Connection, Axis Camera Application Platform (ACAP), support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. Tested with various SIP clients such as Cisco, Bria and Grandstream. Tested with various PBX suppliers such as Cisco and Asterisk |
| Intelligent audio: | speaker impedance detection and over current protection |
| Built-in installation aids: | test tone verification and identification |
| Music streaming: | music playback through Axis Audio Player, offline streaming from SD card and online streaming support with failover function |
| Voice announcement: | pre-recorded voice announcements through Axis Audio Player, voice announcements through built-in SIP support for connection to any IP telephone/VoIP system and VAPIX support |
| Audio synchronisation: | built-in audio synchronisation for up to 30 speakers with unicast and hundreds of speakers with multicast, no additional speaker management software or hardware required |
| Event triggers: | call, virtual inputs, external input, Axis Camera Application Platform (ACAP) |
| Event actions: | play audio clip, send SNMP trap, status LED, file upload via HTTP, network share and email, notification via email, HTTP, HTTPS and TCP, external output activation |
|
General
|
|
| Casing: | IP20-rated, metal casing, colour: black NCS S 9000-N |
| Memory: | 512 MB RAM, 512 MB Flash |
| Power: | Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 3 (max 12.95 W), IEEE 802.3at Type 2 Class 4 (max 25 W) |

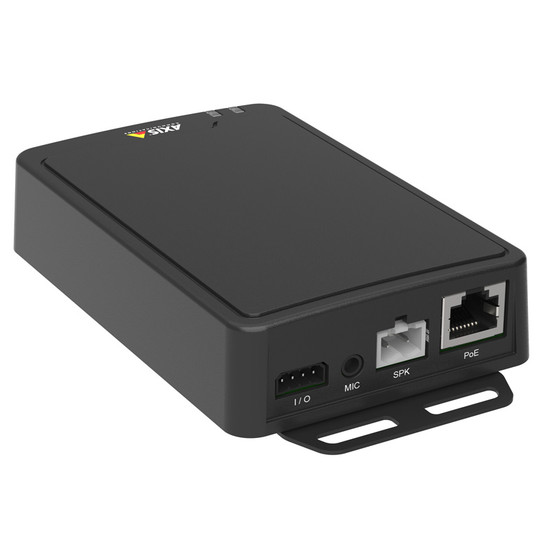

| Connectors: | RJ45 10BASE-T/100BASE-TX PoE, I/O: 4-pin 2.5 mm terminal block for two configurable inputs/outputs, audio: 3 pole 3.5 mm line/mic-in (2.2 V rms), 2–pin 5.08 mm speaker-out |
| Operating conditions: | -20°C to 50°C |
| Dimensions: | 140mm x 75mm x 29mm |
| Weight: | 0.25kg |
| Security: | password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralised certificate management |
| Supported protocols: | IPv4/v6c, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk) |
| Warranty: | 5 year warranty |
