Overview of the AXIS C1720 dual-sided network display speaker
- Dual-sided 3-in-1 IP audio device with two speakers, two text displays and strobe light
- Built-in microphone enables two-way audio for effective and clear public address
- On-board PIR sensor for user-defined alerts activated on motion detection
- Supports live and pre-recorded audio, with audio zoning, scheduling and content prioritisation
- Broadcast mass notifications during lockdown procedures and third-party VMS via VAPIX, MQTT and SIP

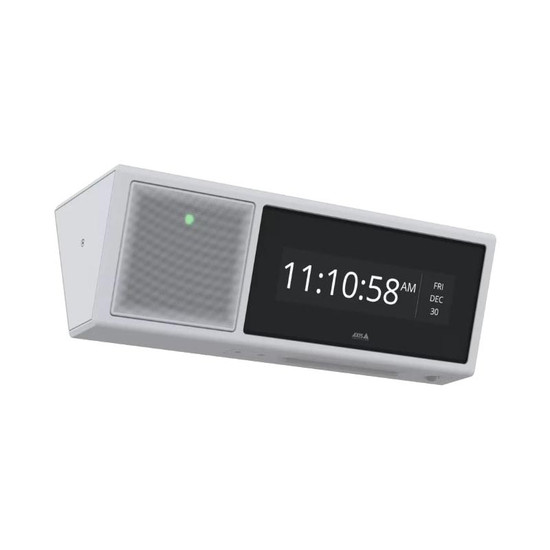

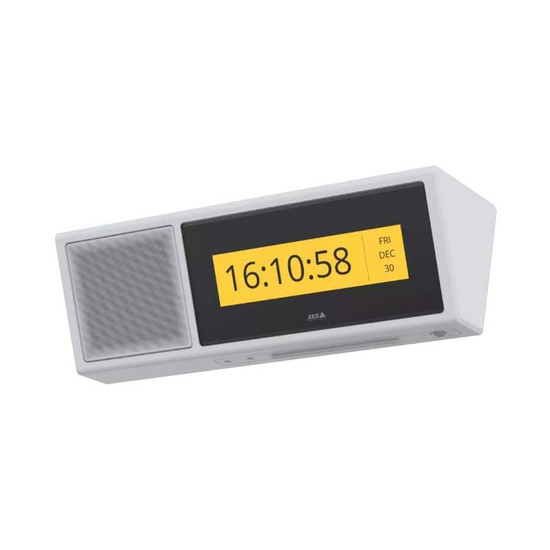

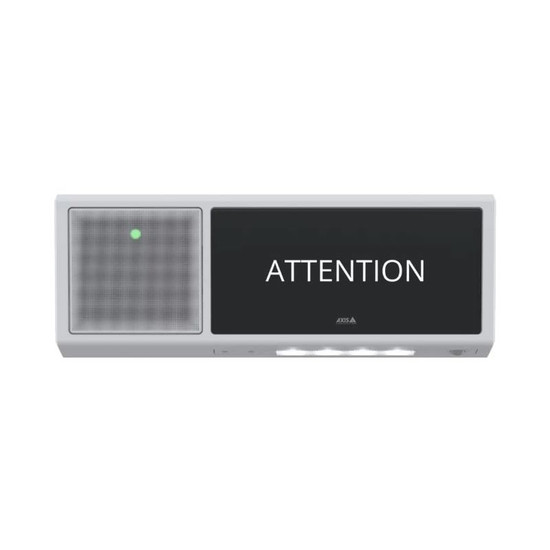

This versatile IP audio device combines sound, visuals, and motion-based detection to deliver clear announcements in indoor environments. With a speaker and graphical text display on each side, it ensures announcements are both seen and heard from multiple directions. Each speaker delivers loud, clear audio, while the twin displays can show scheduled or ad hoc text alerts. When idle, they display the current date and time. For added awareness, a flashing strobe light can be activated to draw attention to urgent messages. The device is capable of audio zoning, scheduling, and content prioritisation to allow urgent announcements to override pre-set audio. The built-in microphone supports audio capture and two-way communication, and the PIR sensor enables motion-triggered alerts ideal for use in secured or restricted-access areas. The device can be integrated into third-party mass notification systems to aid with lockdown procedures, helping to coordinate timely alerts and enhance on-site safety.
The device runs via PoE for convenient installation and reduced costs. The unit must be used with either the AXIS TC1604 wall mount (03185-001) or AXIS TC1604 ceiling mount (03186-001) for appropriate installation.
Audio Management
See below for available audio management options for this device:
- AXIS Camera Station Software
- AXIS Audio Manager Edge
- AXIS Audio Manager Pro
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
- Morphean Cloud CCTV
Example Use Cases
This versatile device can be used to deliver alerts and announcements in a variety of indoor applications, including:
- Airports
- Train stations
- Education
- Theatres and stadiums - lobbies and atriums
- Healthcare environments
- Warehouses
- Corporate/offices
- Logistics
- Restricted and secure areas
Accessories Included
- Network display speaker
- 4-pin connector
- Wall bracket
- Installation guide
- Owner authentication key
Key technical features of the AXIS C1720 indoor dual-sided network display speaker
Hardware |
|
| Environment: | indoor use only |
| Enclosure: | Two 3 inch dynamic cone speakers in sealed enclosure |
| Max sound pressure level: | 99/91 dBSPL (PoE6/PoE4) |
| Frequency response: | 180 Hz - 15.5 kHz |
| Coverage pattern: | Horizontal speaker coverage: 240°
Vertical speaker coverage: 240° |
| Audio input: | Built-in microphone (can be disabled)
Input for external unbalanced microphone Unbalanced line input |
| Built-in microphone specification: | 28 Hz - 20 kHz |
| Amplifier description: | Built-in 20 W Class D amplifier |
| Connectors: | 3.5 mm audio input
RCA line-out I/O: 4-pin 2.5 mm terminal block for 2x supervised configurable I/Os USB 2.0 Type-A port (disabled, reserved for future use) |
| Display and indicators: | Display size: 8.8 inch
Display type: LCD, full color Display resolution: 1920 x 480 Display view angle: Full view LED indicators: status-LED, two front-facing LEDs, dynamic LED strip with RGBW (red, green, blue, white) LEDs and predefined light patterns |
| PIR sensor: | Passive infrared (PIR) motion sensor
Max range: 10 m (33 ft) |
Audio Management |
|
| Functionality: | AXIS Audio Manager Edge:
Full functionality for the speaker. Limited functionality for strobe and display. AXIS Audio Manager Pro: Full functionality for strobe, display and speaker. AXIS Audio Manager Center: Full functionality for the speaker. Limited functionality for strobe and display. |
System Integration |
|
| Application Programming Interface: | AXIS Camera Application Platform (ACAP)
Open API for software integration, including VAPIX®; One-click cloud connection Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. |
| Video management systems: | Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis’ partners including Milestone |
| SIP: | Supported SIP features: Secondary SIP server, IPv6,
SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT
(ICE, STUN, TURN)
RFC 3261: INVITE, CANCEL, BYE, REGISTER, OPTIONS,
INFO
DTMF (RFC 4733/RFC 2833) |
| Mass notification: | Singlewire InformaCast®, Intrado Revolution, Lynx Systems, Alertus |
| Event conditions: | Audio: audio detection, audio clip playing, speaker test result
Device status: IP address blocked/removed, live stream active, network lost, new IP address, PIR sensor, ring power overcurrent protection, system ready Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input is active, manual trigger, virtual input is active MQTT: MQTT client connected Scheduled and recurring: schedule |
| Event actions: | Audio: run automatic speaker test
Audio clips: play, play while the rule is active, stop Display: speaker display notification I/O: toggle I/O once, toggle I/O while the rule is active LEDs: flash status LED, flash status LED while the rule is active Light and siren: run light profile, run light profile while the rule is active, stop activities MQTT: send MQTT publish message Notification: HTTP, HTTPS, TCP and email Recordings: record audio, record audio while the rule is active Security: erase configuration SNMP trap messages: send, send while the rule is active |
| Functional monitoring: | Auto speaker test (verification through built-in microphone) |
| Built-in installation aids: | Test tone verification and identification |
General |
|
| Casing: | Die-casted aluminum, plastic and steel
Colour: White (NCS S 1002-B) IP rating: 40 |
| Mounting: | AXIS TC1604 wall mount
AXIS TC1605 ceiling mount |
| Power: | Power over Ethernet (PoE) 802.3at Class 4 / 802.3bt Class 6 |
| Dimensions: | Height: 156 mm (6.14)
Width: 160 mm (6.30) Length: 462 mm (18.2) |
| Weight: | 4700 g (10.4 lbs) |
| Storage: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
| Operating conditions: | Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity: 10–85% RH (non-condensing) |
| Box Content: | Network display speaker, 4-pin connector, wall bracket, installation guide, owner authentication key |
| Warranty: | 5-year |
