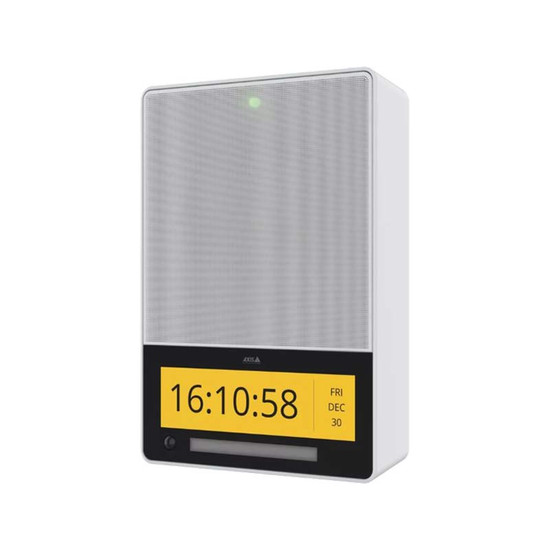

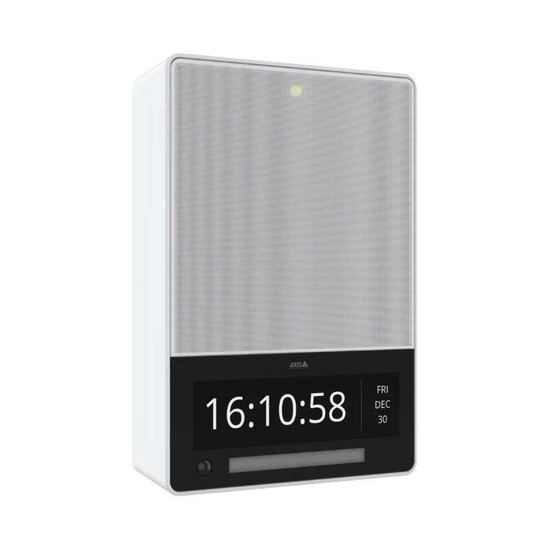

Overview of the AXIS C1710 network display speaker
- Versatile 3-in-1 IP audio device with speaker, configurable text display and strobe light
- Built-in microphone enables two-way audio for effective and clear public address
- On-board PIR sensor for user-defined alerts activated on motion detection
- Supports live and pre-recorded audio, with audio zoning, scheduling and content prioritisation
- Broadcast mass notifications during lockdown procedures and third-party VMS via VAPIX, MQTT and SIP
This flexible IP audio device combines audio and visual alerts to effectively communicate announcements in indoor environments which can be both seen and heard. It features a speaker with built-in amplifier for delivering audio loud and clearly. Audio zoning and scheduling alongside content prioritisation guarantee urgent messages override scheduled audio. The graphical display can be configured to show ad hoc and scheduled text alerts, and whilst not in use it displays the current date and time. To ensure alerts are noticed, the strobe light flashes to draw attention to the device when in use. The built-in mic allows audio capture and two-way communication. Enable real-time motion-based alerts via the PIR sensor, ideal for installation in restricted and secured areas.
The device runs via PoE for convenient installation and reduced costs, whilst the included wall bracket makes mounting simple.
Audio Management
See below for available audio management options for this device:
- AXIS Camera Station Software
- AXIS Audio Manager Edge
- AXIS Audio Manager Pro
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
- Morphean Cloud CCTV
Example Use Cases
This versatile device can be used to deliver alerts and announcements in a variety of indoor applications, including:
- Airports
- Train stations
- Education
- Healthcare environments
- Warehouses
- Corporate/offices
- Logistics
- Restricted and secure areas
Accessories Included
- Network display speaker
- 4-pin connector
- Wall bracket
- Installation guide
- Owner authentication key
Key technical features of the AXIS C1710 indoor network display speaker
Hardware |
|
Environment: | indoor use only |
Enclosure: | 8 inch coaxial dynamic cone speaker in sealed enclosure |
Max sound pressure level: | 110/103 dBSPL (PoE6/PoE4) |
Frequency response: | 85 Hz - 20 kHz |
Coverage pattern: | Horizontal speaker coverage: 120°
Vertical speaker coverage: 120° |
Audio input/output: | Built-in microphone (can be disabled)
Input for external unbalanced microphone Unbalanced line input |
Built-in microphone specification: | 28 Hz - 20 kHz |
Amplifier description: | Built-in 20 W Class D amplifier |

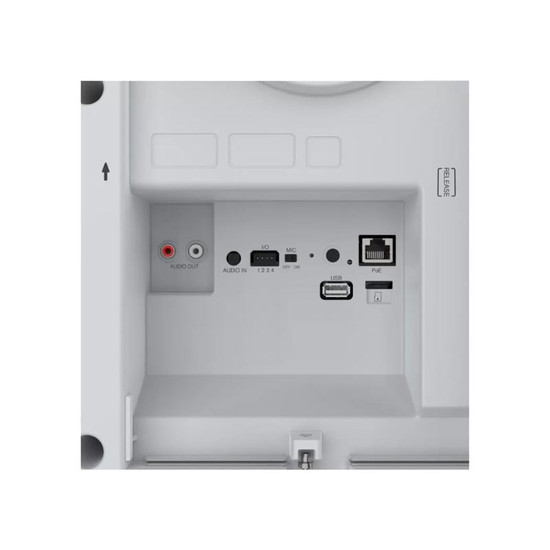

Connectors: | 3.5 mm audio input
RCA line-out I/O: 4-pin 2.5 mm terminal block for 2x supervised configurable I/Os USB 2.0 Type-A port (disabled, reserved for future use) |

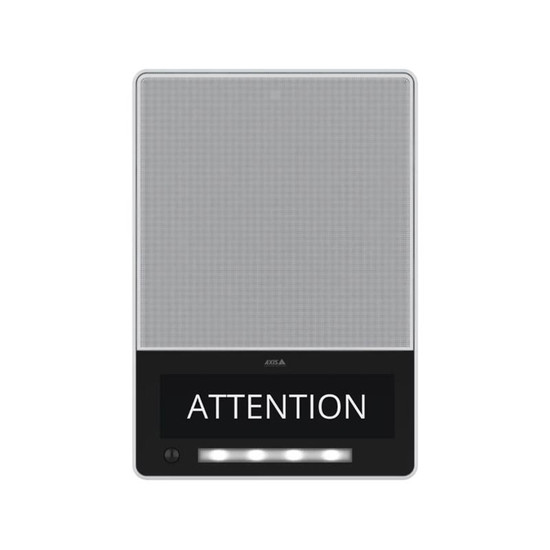

Display and indicators: | Display size: 8.8 inch
Display type: LCD, full color Display resolution: 1920 x 480 Display view angle: Full view LED indicators: status-LED, two front-facing LEDs, dynamic LED strip with RGBW (red, green, blue, white) LEDs and predefined light patterns |
PIR sensor: | Passive infrared (PIR) motion sensor
Max range: 10 m (33 ft) |
Audio Management |
|
Functionality: | AXIS Audio Manager Edge:
Full functionality for the speaker. Limited functionality for strobe and display. AXIS Audio Manager Pro: Full functionality for strobe, display and speaker. AXIS Audio Manager Center: Full functionality for the speaker. Limited functionality for strobe and display. |
System Integration |
|
Application Programming Interface: | AXIS Camera Application Platform (ACAP)
Open API for software integration, including VAPIX®; One-click cloud connection Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. |
Video management systems: | Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis’ partners including Milestone |
SIP: | Supported SIP features: Secondary SIP server, IPv6,
SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT
(ICE, STUN, TURN)
RFC 3261: INVITE, CANCEL, BYE, REGISTER, OPTIONS,
INFO
DTMF (RFC 4733/RFC 2833) |
Mass notification: | Singlewire InformaCast®, Intrado Revolution, Lynx Systems, Alertus |
Event conditions: | Audio: audio detection, audio clip playing, speaker test result
Device status: IP address blocked/removed, live stream active, network lost, new IP address, PIR sensor, ring power overcurrent protection, system ready Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input is active, manual trigger, virtual input is active MQTT: MQTT client connected Scheduled and recurring: schedule |
Event actions: | Audio: run automatic speaker test
Audio clips: play, play while the rule is active, stop Display: speaker display notification I/O: toggle I/O once, toggle I/O while the rule is active LEDs: flash status LED, flash status LED while the rule is active Light and siren: run light profile, run light profile while the rule is active, stop activities MQTT: send MQTT publish message Notification: HTTP, HTTPS, TCP and email Recordings: record audio, record audio while the rule is active Security: erase configuration SNMP trap messages: send, send while the rule is active |
Functional monitoring: | Auto speaker test (verification through built-in microphone) |
Built-in installation aids: | Test tone verification and identification |
Functional monitoring: | Auto Speaker test (verification through built-in microphone) |
General |
|
Casing: | Die-casted aluminum, plastic and steel
Colour: White (NCS S 1002-B) IP rating: 40 |
Mounting: | Mounting bracket with junction box holes (doublegang, single-gang, 4” square junction box and 4” octagon) and for wall or ceiling mount ¾” (M25) conduit side entry |
Power: | Power over Ethernet (PoE) 802.3at Class 4 / 802.3bt Class 6 |
Dimensions: | Height: 405 mm (15.9 in)
Width: 283 mm (11.1 in) Depth: 107 mm (4.21) |
Weight: | 6400 g (14.1 lbs) |
Storage: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
Operating conditions: | Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity: 10–85% RH (non-condensing) |
Box Content: | Network display speaker, 4-pin connector, wall bracket, installation guide, owner authentication key |
Warranty: | 5-year |
