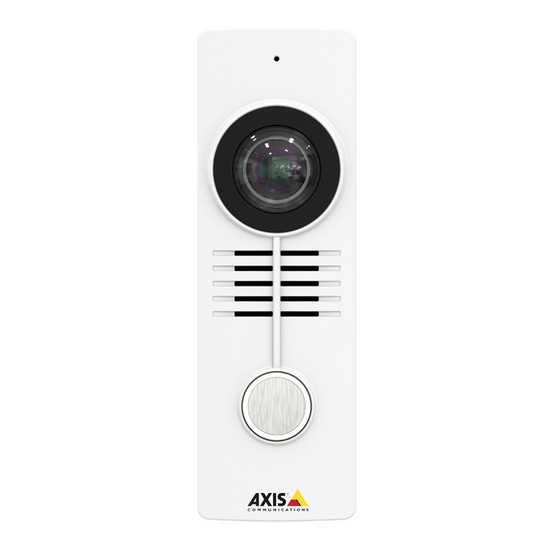

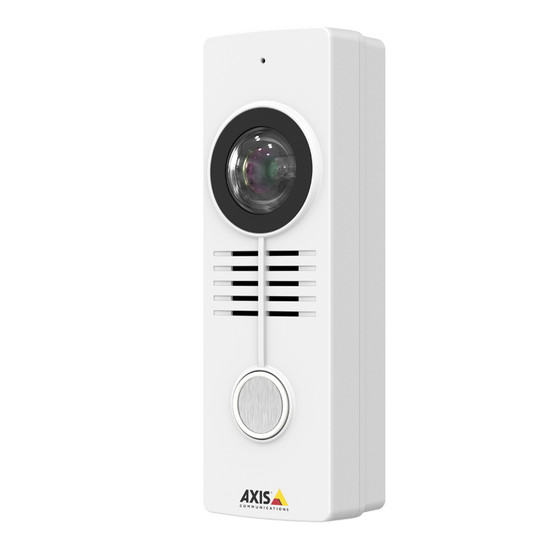

This network video door station offers intercom style communication, remote entry control and security monitoring. Ideal for entrance ways, the combination of high-quality imaging and full duplex audio creates an advanced intercom system.
This model is now discontinued, for an alternative please see the Axis I8116-E network video intercom
This compact unit by Axis is an open IP-based door station that enables intercom-style communication, remote door entry and security surveillance – all from a single device. It includes an integrated network camera which features HD 1080p capability and a handful of advanced imaging technologies to enable clear visual identification of persons. The unit also offers support for two-way audio, Power-over-Ethernet (PoE) and remote access via a mobile device.
The built-in IP camera captures high-quality HD 1080p video at full frame rate and provides a wide horizontal view of 180°. Wide Dynamic Range (WDR) - Forensic Capture is also supported, enabling details in scenes with bright and dark areas to be viewed clearly. In addition, Axis’ Digital Corridor Format helps to maximise the area of interest in narrow scenes by vertically orientating the video stream. Identification is enhanced with the built-in microphone and speaker, providing echo-free two-way audio support. This combination of high-quality imaging and full duplex audio results in an advanced intercom system - allowing users to easily see and communicate with visitors.
The door station features an open interface, allowing helpful integration with third-party video management software and other applications. This provides users with the flexibility to add both communication and entry control into their surveillance system – helping to improve overall security. The unit also supports Axis Camera Station and remote access via mobile applications.
Session Initiation Protocol (SIP) is supported for integration with various IP phone systems to help meet advanced audio and video communication requirements. Multiple I/O ports are also included for the remote control of door locks and other equipment to help improve access control.
Configurable, video motion and audio detection alarms help to alert users of activity via a choice of notification methods including email. These detection alarms can also be set to trigger local recording onto the on-board MicroSD card (not included).
Axis Zipstream technology analyses and optimises the video stream in real-time, recording important details in high quality, whilst filtering out other areas to help reduce bandwidth and storage use. Helpful support for PoE allows both power and network connectivity to be supplied to the door station over a single cable - simplifying installation.
Please note: there is no power supply included with this unit. It is power over ethernet capable.
The Axis A8105-E network video door station is a handy piece of kit that will complement any surveillance system – offering intercom-style communication, remote entry control and security monitoring. It’s an ideal choice for entranceways that require high levels of surveillance such as office buildings, loading bays and private car parks.
Included:
Door Station |
|
| Environment: | IP65- and NEMA 4X-rated |
| Type: | fixed |
| Sensor: | 1/2.8” progressive scan CMOS |
| Lens: | 1.56mm, F2.8, horizontal angle of view: 180°, fixed focus, IR corrected |
| PTZ: | digital PTZ |
| Memory: | 256 MB RAM, 128 MB Flash |
| Power: | power out: 1 x 12 V DC, Max. out: 350 mA at 12 V DC relay: see lock control, Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 |
| Audio: | two-way, full duplex, echo cancellation, noise reduction, AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, OPUS (in SIP calls only), configurable bit rate, built-in microphone (can be disabled), built-in speaker 85dB |
Video |
|
| Resolution: | (19200 x 1200) to (160 x 90) |
| Compression: | H.264 (MPEG-4 Part 10/AVC), baseline Profile, main Profile, Motion JPEG |
| Frame-rate: | capture modes: (1920 x 1200) 25fps (WDR), (1920 x 1200) 50 fps (no WDR) |
| Bandwidth control: | multiple individually configurable streams, H.264, Motion JPEG, controllable frame rate and bandwidth, VBR/CBR H.264, Axis Zipstream technology in H.264 |
| Video overlay: | text and image |
| Day/night: | not given |
| Minimum illumination: | LED lit: 0 lux, LED unlit (with WDR): 2.23 lux, LED unlit (without WDR): 1.96 lux |
| Imaging: | compression, colour, brightness, sharpness, contrast, white balance, exposure control, fine-tuning of behaviour at low light, WDR - Dynamic Capture, mirroring of images |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| Alarm detection: | video motion detection 3, active tampering alarm, audio detection, Axis Camera Application Platform enabling installation of additional applications, external input, edge storage events, shock detection |
| Alarm action: | axis door control, video and audio recording to edge storage, external output activation, play audio clip, overlay text, PTZ control, status LED, WDR mode, make call: SIP, API, file upload via FTP, SFTP, HTTP, HTTPS network share and email, notification via email, HTTP, HTTPS and TCP |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included) |
| Direct-to-NAS storage: | yes |
| Recording software included: | video management software from Axis’ Application Development Partners (not included) |
Connections |
|
| Network: | RJ45 10BASE-T/100BASE-TX Ethernet interface with PoE |
| Audio: | built-in microphone and speaker |
| Alarm I/O: | 6-pin 3.81 mm terminal block |
| Video: | not given |
|
Other
|
|
| Dimensions: | 147.5 (H) x 35 (D) x 48 (W)mm |
| Weight: | 0.28kg |
| Warranty: | 5 years |
| Mounting methods: | wall or recessed mount available (not included) |
| Operating temperatures: | -25 °C to 55 °C |
| Power consumption: | not given |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SIP, SIPS |
| QoS: | yes |
| Security: | user authentication, watermark, IP address filtering, anonymous access, reset |
| ONVIF compliant: | yes |
Axis Communications | 02408-001
