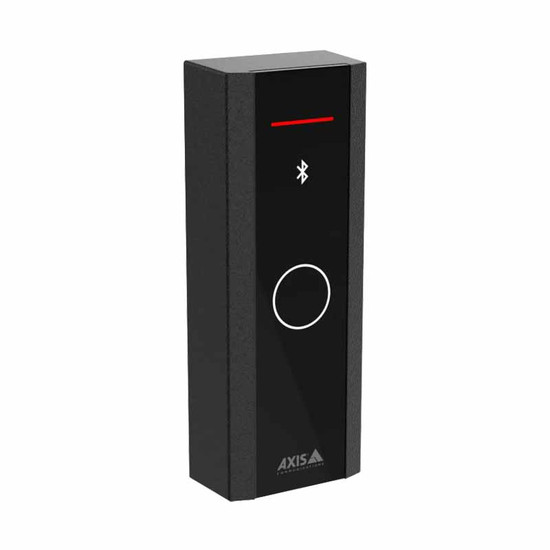

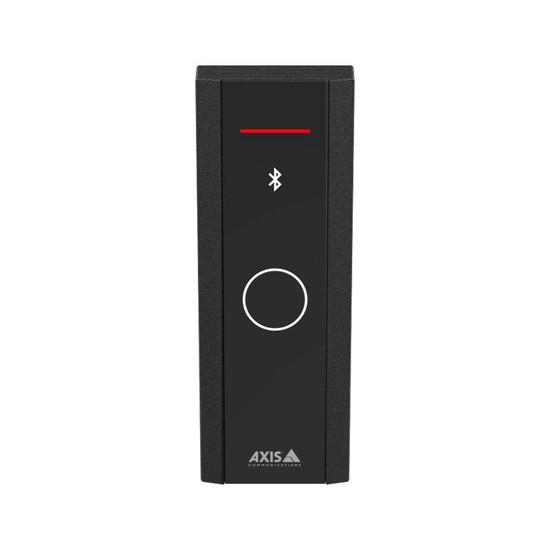

Overview of the AXIS A4612 network Bluetooth door reader
- Compatible with AXIS credentials and network door controllers
- Enables contactless entry with 13.56 MHz RFID and Bluetooth for mobile access
- Provides power to a maglock and RTE for secure single-door control
- Slim design ideal for narrow spaces in door frames
- PoE-powered with IP55 rating for reliable outdoor installation
The AXIS A4612 is a compact network door reader that supports both 13.56 MHz RFID and Bluetooth® for contactless mobile access via AXIS Mobile Credential. Designed for use with AXIS credentials and network door controllers, it enables flexible, secure entry management. The capacitive touch button allows smooth access. It can power a maglock and request-to-exit device for one controlled door when used alongside an AXIS network door controller, making it ideal for reduced costs in standalone setups. PoE-powered and IP55-rated, it’s built for reliable performance in both indoor and outdoor environments. With built-in cybersecurity features and remote management capabilities, the AXIS A4612 offers a robust, modern access control solution.
Access Control Management
Available access control management solutions for this device:
- Axis Camera Station Secure Entry (included with Axis Camera Station software)
- Milestone XProtect - Access add-on application
- Morphean Access Control - 1 year door licence
Included Accessories
- Reader
- Installation guide
- TORX® T10 L-key
Key technical features of the AXIS A4612 network Bluetooth door reader
Reader |
|
| Bluetooth: | Bluetooth version: 5.0 Low Energy
Bluetooth profile: Proximity Profile (PXP) Short range: configurable up to 3 m (9.8 ft)2 Long range: configurable up to 10 m (32.8 ft)2 Security: RSA-1024, AES-128 encryption Operation Mode: touch on reader, tap in app Mobile application support: AXIS Mobile Credential |
| RFID: | 13.56 MHz ISO14443A and ISO14443B (MIFARE Classic®, MIFARE Plus® (Level 1), MIFARE DESFire® EV1, EV2, and EV3). |
| Touch button: | Capacitive touch |
| Alarm status indication: | RGB LED for user feedback, buzzer |
| Tampering: | Built-in tamper switch for detecting removal from wall or back plate. |
I/O interface: |
|
| Output: | Active output: 8 to 12 V DC, max 600 mA
Relay: 1x relay NO/NC, max 1 A 30 V DC |
| Input: | 2x digital inputs |
| Network cables: | Cable length: 2.9m pigtail |
General |
|
| Casing: | IP55-rated
Plastic casing, hard-coated front glass Colour: black |
| Mounting: | Suitable for any flat surface mounting with applicable accessories |
| Power: | Power in: 12 V DC, max 12.0 W, or
Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 3 |
| Operating conditions: | -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 10–95% RH (condensing) |
| Dimensions: | For the overall product dimensions, see the dimension
drawing in the datasheet.
Effective Projected Area (EPA): 0.007 m2 (0.02 ft2)) |
| Weight: | 500 g (1.1 lb) |
| Warranty: | Axis 5-year AXIS warranty |
