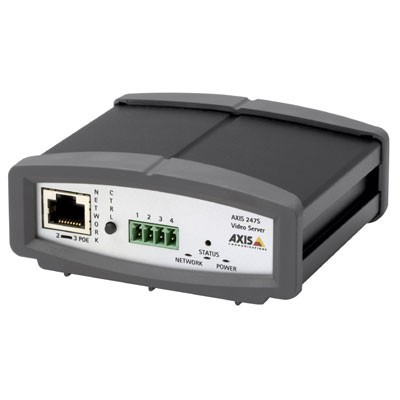

Axis 247S Compact Video server PoE - 1 port

Free delivery on mainland UK and most EU countries Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, an alternative model is the Axis P7304 video encoder

The Axis 247S is a high performance compact 1-port video server which will use your existing analogue video stream and digitize it for IP-based networks such as a local area network (LAN) or across the Internet. Because of its compact size, the Axis 247S has been designed for discretion or for installations where space is at a premium. It will deliver streaming video across the network at up to 25-30 frames per second at a maximum resolution of 704x576pixel (4CIF).

By means of a de-interlace filter, the Axis 247S eliminates the motion blurring problem you get with analogue video giving clear and crisp results. With one-way audio you can listen in on sounds where the video server is installed giving a better idea of what is going on in the camera’s location. This video server provides additional features for your analogue video camera such as a powerful alarm management system. Triggered by a wide range of events including motion/audio detection, loss of video or on a scheduled basis, alarms can be set up which will send images or simply text-based notifications when they have been triggered. Easy to install, the Axis 247S can be quickly wall or ceiling mounted and powered using a single standard Ethernet cable using Power-over-Ethernet (PoE).

Important: A Power over Ethernet (PoE) midspan is required to power this video encoder using PoE. Please select one from the options above if required.

Find out more about video servers from our blog article: Vision:On - What is a Video Server?

Axis 247S - Key benefits:

  • Converts an existing analogue CCTV camera into an IP network camera, giving you direct access to live images over a Local Area Network (LAN) or the Internet
  • Increases the functionality of your existing CCTV camera
  • 1-way audio communication allowing the user to listen-in
  • Small and compact the Axis 247S has been designed as an optimised solution for installations which require discretion or have limited space available
  • Supports IEEE802.3af Power over Ethernet (PoE) making installation quick, easy and cost effective

Axis 247S - Key features:

  • Built-in video motion detection with 9 MB pre-/post-alarm memory giving approx. 4 minutes of CIF resolution video at 4 frames per second
  • Advanced event handling with multiple alarm notifications using SMTP (e-mail), TCP and HTTP, and video/image uploading via e-mail, FTP and HTTP
  • 6 Resolution settings up to a maximum resolution of 704x576 pixels (4CIF) with up to 11 compression levels (MJPEG) or up to 23 compression levels (MPEG-4)
  • De-Interlace filter for improved image quality at maximum resolution
  • Image customization with text, time/date and image overlay
  • 8MB Flash memory provides ability to upload embedded applications
  • Colour and black and white modes available

Axis 247S - Typical applications:

  • Convert an existing analogue camera into a network IP camera to enable you to monitor your office, shop, manufacturing line or car park from a local network or remotely across the internet
  • Use this item as a webcam – Streamdays offers an off-the-shelf solution for you

Axis 247S - Key technical indicators:

  • Simultaneous streams in Motion JPEG (MJPEG) and MPEG-4
  • Resolution: up to 704x576 pixels (PAL) and 704x480 pixels (NTSC)
  • Frame rate: up to 25-30 frames per second
  • IEEE802.3af Power over Ethernet compatible
  • Security comprises multiple user access levels with unique password protection, HTTPS support and IP address filtering
  • Number of simultaneous users: up to 20
  • Dimensions (in mm): 98(w) x 99(d) x 41(h)

Axis 247S - Connections:

  • Network: 10Base-T/100Base-TX Ethernet (RJ-45)
  • Analogue composite video: PAL/NTSC auto sensing, 1xBNC input
  • I/O terminal: 1 alarm input + 1 output (terminal block)
  • Power terminal: Power terminal block providing power feed to the camera or alternative power supply for the video server
  • Audio: 3.5mm jack for mic-in or line-in
  • 6pin Mini-DIN alternative connection for: video in, audio in, power out

Axis 247S - Accessories included:

  • Installation guide
  • CD with User Manual, demo software, installation and management tools
  • Terminal connector kit
  • MPEG4 Licenses (1 encoder, 1 decoder)
  • Axis 3-Year Limited Hardware Warranty
