| VK2-1080VFD3V9F

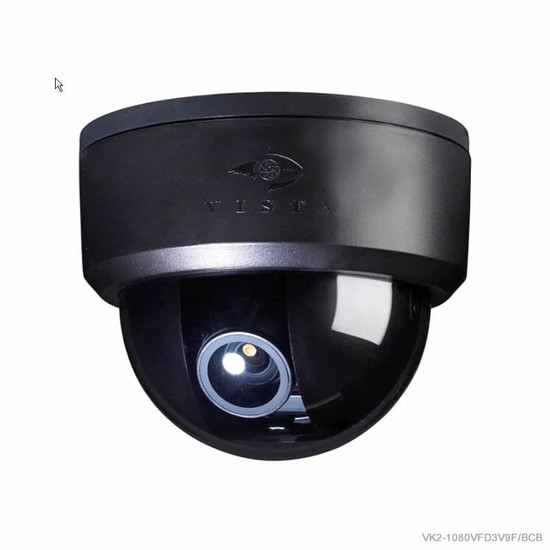

Vista VK2 1080VFD3V9F indoor IP camera with full HD 1080p, true day/night, remote lens set up, PoE and edge storage

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

Overview of the Vista VK2 1080VFD3V9F

This product is discontinued, an alternative model is the Axis P3265-V

Compact Vista VK2-1080VFD3V9F dome network camera for internal use with full 30 fps HD 1080p video capture and true day/night capability for 24/7 CCTV monitoring. Featuring a varifocal lens with 93° wide angle view, which is motorised to allow remote lens set up, saving on installation time on site. Other key features include video motion detection (VMD), Power-over-Ethernet, triple streaming, alarm in and outputs, and support for edge storage using a MicroSD card. This camera is available in either black or white to best match surroundings and comes with Vista's free VK2-CLIENT recording software which can support up to 32 video channels. iOS and Android apps are available to enable handy remote viewing of live and recorded video.

Part of the Vista F-series of feature-enhanced cameras, the Vista VK2-1080VFD3V9F IP dome provides full HD 1080p surveillance of indoor areas, captured by the 1/2.7” Sony progressive scan sensor, whilst the motorised DC-iris varifocal lens offers a 93° to 31.7° horizontal view that can be set or adjusted remotely and makes this camera suitable to both smaller as well as larger indoor areas. Producing full colour images during daytime and monochrome capture at night, through its automatic infrared-cut filter, this camera offers true day/night functionality down to 0.2 lux and provides effective 24/7 monitoring. The compact, dome form factor is ideal for unobtrusive surveillance in modern interiors such as hotels, restaurants and boutiques. It is available in either black or white (please select choice from above drop down menu) to blend in with the environment. The VK2-1080VFD3V9F has a 3-axes gimbal, allowing ceiling or wall mounting with accurate view set up.

The Vista VK2-1080VFD3V0F dome is easy and cost-effective to set up as support for Power-over-Ethernet (PoE) allows power to be fed through the network cable, negating the need for electrical wiring. An integrated MicroSD card slot (card sold separately) provides further simplicity and cost savings as video data can be recorded on the camera itself, instead of using a more costly centralised recording device such as server with software or NVR. However, if a centralised configuration is required, ONVIF compatibility allows this camera to be used with a wide range of NVRs or video management software products, whilst direct-to-NAS recording is also possible.

Vista VK2-CLIENT 32-channel recording software comes included with all Vista IP cameras and provides user-friendly video management. In addition, mobile support through iOS and Android apps provide handy remote access to live and recorded video, an ideal feature for business owners and managers on the move.

Please note: this camera does not come with a power supply, please select from the above drop down menu if required.

Manual lens version: VK2-1080VFD.

Available models (please select choice from above drop down menu):

VK2-1080VFD3V9F/WCW - white

VK2-1080VFD3V9F/BCB - black

Key features & benefits

  • Full HD 1080p image capture provides smooth surveillance footage ideal for day-to-day CCTV applications
  • DC-iris motorised varifocal lens has 93°-31.7° horizontal viewing angle which can be remotely adjusted for ease of set up and maintenance
  • IR-corrected lens and infrared-cut filter enable the camera to deliver true day/night capability for high quality monitoring, 24 hours a day
  • Video motion detection enables the camera to alert users of activity via FTP image upload, e-mail notification and external output activation, providing reliable CCTV security
  • Triple codec enables flexible bandwidth and storage management with different configuration options suitable for different applications and environments
  • PoE delivers a cost-effective power solution and reduces the time needed to install the camera
  • MicroSD card recording provides edge storage as an alternative to a centralised device
  • Onvif support for use with a wide range of video management products
  • Included Vista recording software provides video management for up to 32 cameras
  • Free to download iOS and Android apps provide convenient viewing via smartphones and tablets
  • Available in black or white to best suit environment (please select colour preference from the above drop down menu)

Compatible recording platforms:

Typical applications

Available in 2 colours and with a compact dome form factor, the Vista VK2-1080VFD3V9F network camera provides non-invasive surveillance ideal for indoor applications that require high quality CCTV surveillance 24 hours a day. Typical examples include hotels, restaurants, reception desks, stairways, shops and schools.



  • VK2-CLIENT 32-channel recording software
  • Installation CD
  • Installation Guide
  • Template sheet
  • Accessory kit
  • Optional OSD controller

Optional (please select from the above drop down menu):

  • MicroSD card
  • PoE midspan
Back To Top

Key technical features of the Vista VK2 1080VFD3V9F

Type:fixed dome
Sensor:Sony 1/2.7” progressive scan RGB CMOS, 2 megapixel
Lens:DC iris remote setup motorised varifocal 3.0mm - 9.0mm, F1.2, 3.0mm – 93°(H)/9.0mm – 31.7°(H)
Power:12VDC/PoE 290mA(3.5W) Power over Ethernet IEEE 802.3af Class2
Resolution:1080p, 1280x1024, 720p, D1, Half-D1, VGA, QVGA, CIF
Compression:H.264(BP/MP/HP), MPEG4(SP), MJPEG
Frame-rate:up to 30fps (at Full HD 30 frames shared across 3 streams)
Bandwidth control:triple simultaneously H.264(or MPEG-4) and MJPEG, controllable frame rate and bandwidth VBR/CBR H.264 and MPEG-4
Day/night:true day night with removable IR cut filter
Minimum illumination:colour: 0.9Lux, B/W: 0.2Lux(F1.2, 50IRE)
Imaging:auto exposure, auto white balance, 2D dynamic range, back light compensation
Viewing, detection & recording
Privacy masking:yes<, max 8/td>
Number of users:10
Alarm detection:video motion detection (max. 16 programmable inclusion/exclusion zones), external input, manual trigger
Alarm action:file upload via FTP and HTTP notification via e-mail, HTTP and TCP, external output activation, start recording (with or without frame rate speed up)
Pre/post alarm buffer:yes
On-camera recording:yes, continuous/schedule/event
Direct-to-NAS storage:yes
Recording software included:Vista V2K-CLIENT for up to 32 video channels
Mobile support:iOS and Android apps available
Power:12VDC/PoE 290mA(3.5W) Power over Ethernet IEEE 802.3af Class2
Network:RJ-45 10BASE-T/100BASE-TX, PoE
SD card slot:MicroSD card
I/O:input: terminal, 1 TTL input, output: terminal, 1 open collector
Dimensions in mm:118.4 (D)x 105 (H)
Weight:0.325 kg
Warranty:3 years
Mounting methods:wall or ceiling (3-axes adjustment)
Operating temperatures:-10°C~ +45°C standard
Power consumption:3.5 W
Protocols supported:IPv4/IPv6, Manual, TCP/IP,UDP,HTTP,RTP, RTSP, NTP,DHCP,SMTP,DDNS,HTTPS,RTCP,FTP,Bonjour”
Dynamic DNS:yes
Security:password protection, IP filtering, HTTPS, SSL, privacy zone
ONVIF compliant:yes
