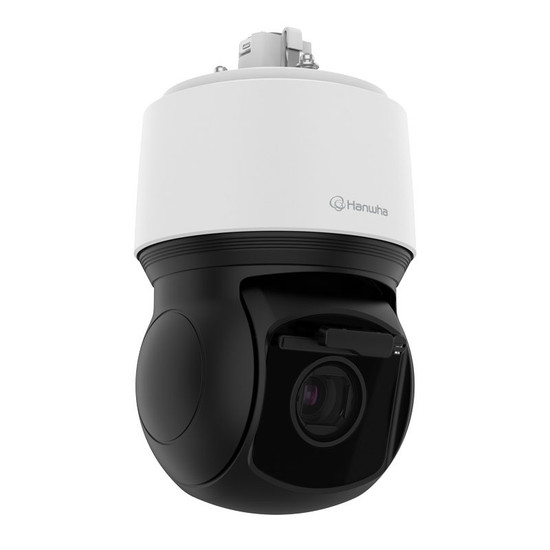

Hanwha Vision XNP-C8303RW outdoor-ready PTZ speed dome IP camera with 6MP resolution, 200m infrared illumination, 360° endless pan, 500°/sec pan speed, 30x optical zoom, built-in wiper, WDR, AI classification analytics and PoE++

Overview of the Hanwha Vision XNP-C8303RW outdoor PTZ speed dome IP camera

• 6MP image sensor for HD video up to 3328x1872 resolution
• High-speed endless 360° pan with auto-tracking and guard tour
• Investigate scenes from distance with up to 960x combined digital and optical zoom
• 120dB extremeWDR and WiseIR illumination up to 200m for 24-hour surveillance
• Powerful AI analytics improves accuracy and reduces false alarms
• Built-in wiper

Built to deliver detailed, long-distance surveillance 24-hours a day, this outdoor-ready PTZ camera excels at monitoring exposed, high movement areas regardless of the weather. The robust IP66 and IK10-rated casing offers effective protection from rain and snow, whilst being resistant to attempts of vandalism. Featuring a built-in wiper, lens heater and defog function for maintaining visibility in wet weather by keeping the lens clear for reliable around-the-clock performance. Capture crisp and clear images thanks to the 6MP sensor, even in areas with shadows and contrasting light via extremeWDR. Integrated WiseIR LEDs provide infrared illumination up to 200m.

Manually direct the camera towards areas of interest via your VMS, or configure up to 300 preset areas for the camera to patrol during guard tours and scheduling. Featuring a pan speed of 500°/sec, it can rapidly direct to areas of concern and optically zoom in up to x30 for ultra-precise scene analysis. On-board intelligent video analytics detect and classify moving objects, using AI algorithms, which the camera can consistently track, even if they briefly disappear from view. Designed to be easy to install, the PTZ Plus form factor means it is compact and lightweight with simple cable routing, powered by PoE++ (injector included).

Video Analytics

On-board video analytics detect and classify objects with enhanced accuracy thanks to the AI engine, resulting in increased accuracy and fewer false alarms. Improve general perimeter security and develop actionable insights into business performance by running scenarios such as virtual line crossing, loitering warning and appear/disappear from view. Classify humans, vehicles, cars, buses, bikes and licence plates, which can be visualised on-screen with colour coded bounding boxes, so users can easily keep track of moving objects. The camera can be instructed to auto-track detected objects, following their movement even if they slightly disappear from view.

Alarm inputs and sound detection (via optional microphone) can be enabled via the optional Hanwha Vision SPM-4210 I/O box, allowing the unit to trigger external devices such as speakers, siren alarms etc on detection of user-defined events.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (not included)
• Wisenet Viewer application
• Wisenet WAVE
• Hanwha Vision NVRs
• Milestone XProtect video management software

Example Use Cases

• General perimeter and zone protection - Early detection of humans or vehicles which can then be tracked to follow activity, configure alarms to trigger upon unexpected behaviour
• City centres - deter criminal activity, identify and monitor suspicious behavior, prevent unauthorised area access, terrorism and property protection
• Crowd control - improve health and safety with early detection of incidents within crowds, track perpetrators through busy environments, maintain the peace and law and order
• Car parks / traffic management - count vehicles in area and how many have crossed virtual lines for occupancy measuring, licence plate capture can be enforced further with LPR/ANPR
• Power plants / transport hubs - general security and anti-terrorism capabilities, profile at great distance and track subjects automatically

Accessories included

• Camera
• Installation guide
• RJ45 cap installer
• Bushing clip
• Cable bushing
• HPoE injector/midspan
• Power cord

Key technical features of the XNP-C8303RW
