| XNP-C7310R

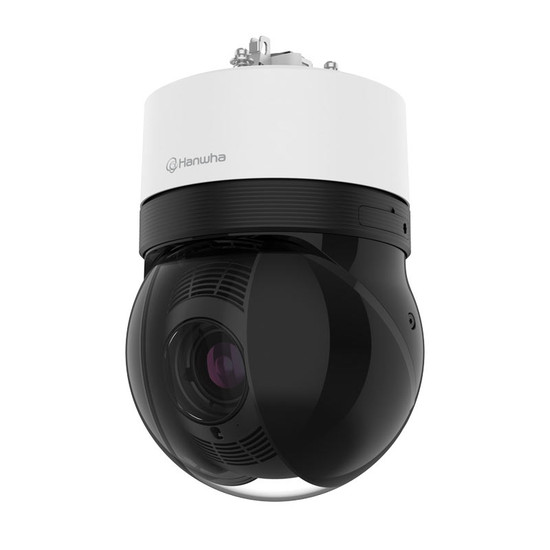

Hanwha Vision XNP-C7310R outdoor-ready PTZ dome IP camera with 4MP resolution, 300m WiseIR illumination, AI Zoom and Focus, 360° endless pan, 550°/sec pan speed, 31x optical zoom, WDR, AI classification analytics and HPoE

£2,435.00
£2,922.00 inc VAT
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Using AI-enhanced technology, this advanced PTZ camera features quick zoom and rapid focus adjustment for detailed scene investigation within seconds. Excellent low-light performance and integrated WiseIR LEDs delivers effective 24-hour surveillance.

  • 4MP sensor for HD video up to 2592x1520 resolution
  • 31x optical zoom lens for a 2.54° - 59.4° horizontal viewing angle
  • AI-based quick zoom and Wise Auto Focus for rapid scene investigation
  • 360° endless pan with 550°/sec pan speed
  • WiseIR illumination up to 300m range
  • Hanwha Vision 5-year warranty, firmware support until 5 years after EOL
Options available:
Hurry! Only left


Overview of the Hanwha Vision XNP-C7310R outdoor AI Focus PTZ IP camera

  • IR corrected P-iris lens for exceptional image quality even in low-light environments
  • Detailed scene investigation from afar with 31x optical zoom
  • AI engine retains preset focus settings for swift zooming and autofocus transitions
  • High-speed endless 360° pan with auto-tracking and guard tour functions
  • Detect, classify and auto-track objects with AI-enhanced video analytics

The XNP-C7310R PTZ IP camera from Hanwha Vision has been developed with cutting-edge optics and monitoring technology to engineer a highly advanced, 24-hour CCTV surveillance device. The 4MP image sensor and P-Iris lens captures smooth and detailed video up to 60fps making it ideal for monitoring high-movement areas and fast-moving traffic and machinery. It also offers excellent low-light performance with WDR and WiseIR illumination up to 300m in complete darkness. Alongside full pan, tilt and 31x optical zoom functionality, the camera uses AI-based technology enabling rapid zoom and smooth autofocus.

It retains focus settings applied across multiple preset groups and recalls them for faster autofocus when zooming in. Further use of AI technology enables detection of human faces, with their distance then being calculated allowing for seamless, optimised focus adjustments. Configure up to 300 preset areas which the camera can patrol through during guard tours and scheduling. On-board video analytics detect and classify moving objects using AI algorithms which the camera can consistently track, even if they briefly disappear from view.

Robust and outdoor-ready, the all-weather housing is IP66/67 and IK10-rated, and the unit can operate even in heavy rain or snow with its spin dry, lens heater and defog features maintaining visibility in harsh conditions. Designed to be easy to install with simple cable routing, the unit offers a range of mounting options and is powered by HPoE (injector included).

Video Analytics

Detect and classify objects such as people and vehicles, which can be visualised on-screen with colour coded bounding boxes. Once an object has been detected, the camera can autotrack and follow continually, even if it briefly disppears from view. Receive incident alerts in real-time with reliable accuracy and fewer false alarms thanks to its powerful edge-based video analytics. Objects can be classified further by identifying cars, buses, bikes, trucks and license plates. Scenarios such as virtual line crossing, loitering detection and appear/disappear can be run for greater scene awareness and improved perimeter security.

Alarm inputs and audio detection (via optional microphone) can be enabled via the optional Hanwha Vision SPM-4210 I/O box, allowing the unit to trigger external devices such as speakers and sirens on detection of user-defined events.

Recording and Video Management

Available recording and video management options for this camera:

Example Use Cases

  • General perimeter and zone protection - Early detection of humans or vehicles which can then be tracked to follow activity, configure alarms to trigger upon unexpected behaviour
  • City centres - deter criminal activity, identify and monitor suspicious behavior, prevent unauthorised area access, terrorism and property protection
  • Crowd control - improve health and safety with early detection of incidents within crowds, track perpetrators through busy environments, maintain the peace and law and order
  • Car parks / traffic management - count vehicles in area and how many have crossed virtual lines for occupancy measuring, licence plate capture can be enforced further with LPR/ANPR

Accessories included

  • Camera
  • Installation guide
  • RJ45 cap installer
  • Bushing clip
  • Cable bushing
  • HPoE injector
  • Power cord
Back To Top



Key technical features of the XNP-C7310R

Camera

Environment: outdoor
Type: AI Focus PTZ
Sensor: 1/1.8" 4MP CMOS
Lens: Focal Length (Zoom Ratio): 6.91 ~ 214.7mm(31x) zoom (digital 32x, total 992x zoom), Support Quick zoom
Optical Zoom: 31x
Max. Aperture Ratio: F1.36(Wide)~F4.6(Tele)
Angular Field of View:
H : 59.4°(Wide)~2.54°(Tele)
V : 35.8°(Wide)~1.49°(Tele)
D : 68.2°(Wide)~2.95°(Tele)
Min. Object Distance: 3m(9.84ft
Focus Control: Oneshot AF, Focus save, Focus scan, Wise auto focus
Lens Type: P-iris(IR corrected)
PTZ: Pan Range: 360° Endless
Pan Speed: Max. 550°/sec, Manual: 0.024°/sec~200°/sec
Tilt Range: 110°(90°~-20°)
Tilt Speed: Max. 550°/sec, Manual: 0.024°/sec~200°/sec
Sequence: Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy: ±0.05° (±20°C by temperature at preset setting)
Water removal: Support(Spin dry, Lens heater)
Audio: Audio detection enabled with additional microphone using the optional I/O box SPM-4210
Power: HPoE(IEEE802.3bt type4, Class8, Injector included)
HPoE: Max 62W, typical 23W
Alarm triggers: Analytics, Network disconnect, Alarm input (Via optional I/O box SPM-4210), Time schedule, MQTT subscription

Imaging

Resolution: 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Frame rate: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)(WDR off)
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR on)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)(@4MP Max. 5fps)
IR illumination: Wise IR 300m(984ft)
WDR up to 120dB depending on the scene
Video streaming: Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Day/night: Auto(ICR)
Minimum illumination: Colour: 0.04 Lux(F1.36, 1/30sec, 30 IRE)
BW: 0.004 Lux(F1.36, IR LED Off), 0Lux (IR LED On)
Backlight compensation: BLC, HLC, WDR, SSDR

Analytics

Application Programming Interface: ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Hanwha Vision open platform
Analytic events: Classified object type : Person/Face/Vehicle/License plate
Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics events
- Motion detection, Tampering, Fog detection, Shock detection, Virtual area(Appear/Disappear)
* Audio detection, Sound classification(Via optional I/O box SPM-4210)
Event action: When alarm trigger occurred
- File upload(image) : e-mail/FTP/SFTP
- FIle upload(video clip): FTP/SFTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
* Alarm output / Audio clip playback(Via optional I/O box SPM-4210)
Auto tracking: Support
Object auto tracking(Person/Vehicle)
Target lock tracking

Video Management

On-camera recording: Support for Micro SD/SDHC/SDXC 2slot 1TB (512GBx2)
Network video recorders: Hanwha Vision NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs
Video Management Software: Wisenet Viewer application, Wisenet WAVE, Milestone XProtect
Cloud: Eagle Eye Networks

General

Alarm I/O connections: Via optional I/O box SPM-4210
Dimensions: ø188x264.9mm(ø7.40x10.47")
Weight: 4400g (9.70lb)
Casing: IP66/67, IK10, NEMA4X, NEMA-TS 2(2.2.7, 2.2.8, 2.2.9)
Body : White / Aluminum
Head : Black / Polycarbonate
Hard-coated dome
White: RAL9003 / Black: RAL9005
Operating temperatures: Normal : -50°C~+55°(-58°F ~ +131°F)/
+74°C(165°F)(Max) based on NEMA TS-2(2.2.7)
* Start up should be done at above -30°C
0~100%RH(Condensing) Humidity control /w AIR vent
Warranty: 5-year
Firmware support to: 5 years after EOL
Protocols supported: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
Security: OS / Firmware Protect: Secure boot, Signed firmware, Firmware encryption
User authentication: Digest Authentication, Prevent brute-force attack
Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication: HTTPS, SRTP, WSS(Web socket secure)
Access Control: Access control based on IP address
Data Protect: Encryption Credentials, Encrypt compress for live recording file export
Audit: User Access/System/Event log management
Device ID: Device Certificate(Hanwha Vision Root CA)
Secure Storage: TPM(Trusted platform module), HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate: TPM with FIPS 140-2 level 2
