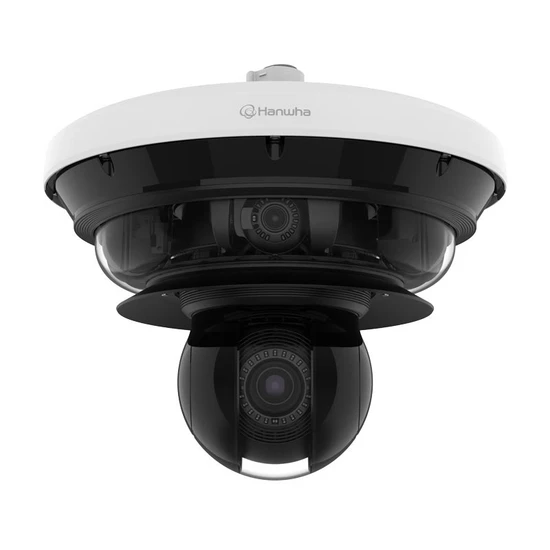

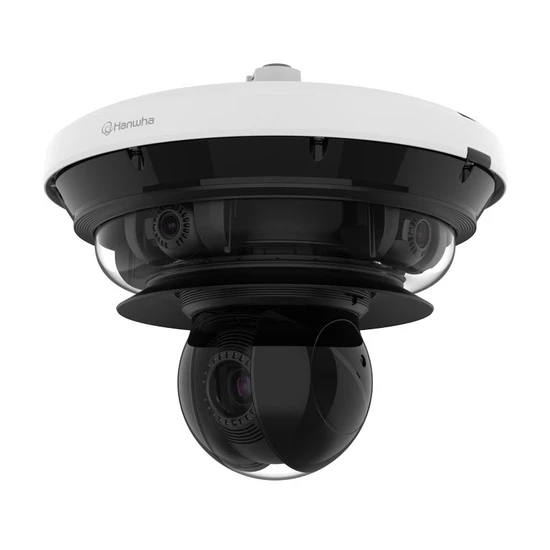

Delivering a truly 360° surveillance solution, this high-performance multi-directional unit features 4 independently adjustable varifocal lenses, and an ultra-fast PTZ camera which can rapidly investigate incidents detected across all 5 channels.
Combining a 4-channel multi-directional camera unit with an ultra-responsive PTZ camera, this high-performance camera enables detailed and comprehensive 360° monitoring in both indoor and outdoor environments. Remotely adjust each individual sensor with the PTRZ function to meet ideal coverage requirements. Each sensor in the 4-channel unit captures 4K UHD video, whilst the PTZ device captures video in 1080p HD resolution. Capable of around-the-clock performance, the unit offers 360° night vision with the PTZ unit's IR illumination reaching up to 200m.
Rapidly investigate incidents from afar with up to x40 optical zoom, 700°/sec pan speed and AI Focus Save. Instruct the PTZ to perform patrols and guard tours between up to 300 user-defined preset areas. Detect and classify objects with increased accuracy with its in-built AI analytics. The camera's on-board video analytics can detect objects and trigger the PTZ to automatically zoom in for closer inspection.
The device is equally adept at performing outside as well as inside, with its IP66 and IK10-rated casing for reliable wet weather protection and vandalism resistance. The spin-dry function ensures the PTZ lens is clear from water droplets for maintaining visibility. Furthermore, alarm inputs and audio detection (via optional microphone) can be enabled via the optional Hanwha Vision SPM-4210 I/O box, allowing the unit to trigger external devices such as speakers and sirens on detection of user-defined events.
Powerful edge-based video analytics enable incident alerts in real-time with reliable accuracy and fewer false alarms. Detect and classify objects such as humans and vehicles, which can be visualised on-screen with colour coded and categorised bounding boxes. Once an object has been detected, the camera can be set to track and follow continually, even if it briefly disppears from view. Objects can be classified further by identifying cars, buses, bikes, trucks and license plates. Scenarios such as virtual line crossing, loitering detection and appear/disappear can be run for greater scene awareness and improved perimeter security.
Available recording and video management options for this camera:
Camera |
|
| Environment: | outdoor |
| Type: | 4ch multi-directional and PTZ speed dome |
| Sensor: | 4ch camera: 1/2.8" 8MP CMOS
PTZ: 1/28" 2MP CMOS |
| Lens: | 4ch camera:
Focal Length (Zoom Ratio): 3.3~5.7mm(1.7x) motorized varifocal Max. Aperture Ratio: F1.5(Wide)~F1.9(Tele) Angular Field of View: H: 109°(Wide)~56°(Tele) / V: 55°(Wide)~31°(Tele) / D: 136°(Wide)~65°(Tele) Min. Object Distance: 1.3m(4.27ft) Focus Control: Simple focus Lens: Fixed iris PTZ: Focal Length (Zoom Ratio): 4.25~170mm(40x) zoom(digital 32x, total 1280x zoom) Max. Aperture Ratio: F1.6(Wide)~F4.95(Tele) Angular Field of View: H: 65.66°(Wide)~1.88°(Tele) / V: 39.40°(Wide)~1.09°(Tele) Min. Object Distance: 5m(16.4ft) Focus control: Oneshot AF, Focus save Lens type: DC auto iris |
| Pan/Tilt/Rotate/Zoom: | 4ch camera:
Pan / Tilt / Rotate range: Remote adjustment(Max. 200cycles), 0°~360° / 9°~65° / 0°~90° * Tilt angle with Shield IR: 40°~65° PTZ: Pan range: 360° Endless Pan Speed: Max: 700°/sec, Manual: 0.024°/sec~250°/sec Tilt Range: 0°~110° Tilt Speed: Max: 500°/sec, Manual: 0.024°/sec~250°/sec Sequence: Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule Preset Accuracy: Up to ±0.1°, Pan/Tilt correction |
| Water removal: | Support(Spin dry) |
| Audio: | Audio detection enabled with additional microphone using the optional I/O box SPM-4210 |
| Power: | HPoE(IEEE802.3bt type 4, Class 8)
HPoE: Max 64.00W, typical 45.00W |
| Alarm triggers: | Analytics, Network disconnect, Alarm input(Via optional I/O box SPM-4210), App event, Schedule, MQTT subscription |
Imaging |
|
| Resolution: | 4ch camera:
3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 PTZ: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Frame rate: | 4ch camera:
[AI On] H.265/H.264: Max. 15fps/15fps(60Hz/50Hz) MJPEG: Max. 15fps/15fps(@8MP Max. 5fps) [AI Off] H.265/H.264: Max. 20fps/20fps(60Hz/50Hz) MJPEG: Max. 20fps/20fps(@8MP Max. 5fps) PTZ: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| IR illumination: | 4ch camera: 20m(65.62ft)
PTZ: 200m(656.17ft) |
| WDR: | 4ch camera: 120dB
PTZ: extremeWDR 150dB |
| Video streaming: | 4ch camera: Unicast(10 users) / Multicast, Multiple streaming(Up to 3 profiles)
PTZ: Unicast(20 users) / Multicast, Multiple streaming(Up to 10 profiles) |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | 4ch camera: Colour: 0.1Lux(F1.5, 1/30sec, 30IRE), BW: 0.01Lux(F1.5, 1/30sec, 30IRE), 0Lux(IR LED on)
PTZ: Colour: 0.05Lux(F1.6, 1/30sec, 30IRE), BW: 0.005Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Backlight compensation: | 4ch camera: BLC, WDR, SSDR
PTZ: BLC, HLC, WDR, SSDR |
Analytics |
|
| Application Programming Interface: | ONVIF Profile S/G/T/M
SUNAPI(HTTP API) Wisenet open platform |
| Analytic events: | 4ch camera:
Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support BestShot Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear) * Some of the video analytics only works with people and vehicle detection PTZ: Analytics events - Motion detection, Fog detection, Tampering, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Virtual line(Crossing/Direction) * Support Audio detection, Sound classification via optional I/O box(SPM-4210) |
| Event action: | When alarm trigger occurred
- File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output(Via optional I/O box SPM-4210) - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Smart zoom - MQTT: publication |
| Auto tracking (PTZ only): | Object auto tracking(Person/Vehicle), Target lock tracking |
Video Management |
|
| On-camera recording: | Support for Micro SD/SDHC/SDXC 2slot 1TB (512GBx2) |
| Network video recorders: | Hanwha Vision NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Wisenet Viewer application, Wisenet WAVE, Milestone XProtect |
| Cloud: | Eagle Eye Networks |
General |
|
| Alarm I/O connections: | Via optional I/O box SPM-4210 |
| Dimensions: | ø379.8x301.9mm(ø14.95x11.89") |
| Weight: | 7900g(17.42 lb) |
| Casing: | IP66, IK10, NEMA 250 type 4X
Body : White / Aluminum Bubble: Hard-coated dome 4CH and PTZ White: RAL9003 |
| Operating temperatures: | -40°C~+50°C(-40°F~+122°F)
* Start up should be done at above -30°C 0~95% RH(non-condensing) |
| Warranty: | 5-year |
| Firmware support to: | 5 years after EOL |
| Protocols supported: | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Security: | OS / Firmware Protect: Secure boot, Signed firmware, Firmware encryption
User authentication: Digest Authentication Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Secure Communication: HTTPS, SRTP, WSS(Web socket secure) Access Control: IP address filtering Data Protect: Authentication information encryption, ZIP compression encryption Audit: User Access/System/Event log management Device ID: Device Certificate(Hanwha Private Root CA) Secure Storage: TPM(Trusted platform module), HTPM(Hanwha trusted platform module), Security Certificate: TPM with FIPS 140-2 level 2 |
