Axis Communications | 03077-002
AXIS W401 Body Worn Activation Kit with automatic recording activation and integrated Bluetooth® Beacons technology
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
The AXIS W401 Body Worn Activation Kit can instruct all body worn cameras in a specific area to automatically record via external triggers, such as when a lightbar or siren on a police car is activated, which can help with evidence-gathering.
- Automatic recording activation for all devices in a set area
- Triggered by I/O, such as a lightbar or siren on a police car
- Compatible with selected AXIS body worn cameras
- Uses Bluetooth® Beacons technology
- Ensures footage is always available, helping with compliance
- AXIS 5-year warranty. AXIS OS support until 31-12-2031
Overview of the AXIS W401 Body Worn Activation Kit
- Simultaneous recording can be activated by I/O such as when a siren on a police car, lightbar or panic button is pressed
- All body worn cameras in the same system will record concurrently, ensuring footage is covered from multiple angles
- Consistent footage helps police departments keep in compliance with regulations
- Uses Bluetooth® Beacons technology to trigger recording across devices
- Ensures footage is always available, helping with compliance
The W401 Body Worn Activation Kit ensures all compatible body worn recording devices within a specific area automatically record according to an I/O signal. Using Bluetooth® Beacons technology, when a lightbar, police siren or panic button are pressed, all devices simultaneously record ensuring there is always footage of escalating events, which helps organisations comply with regulations, and ensures cameras are recording in potentially stressful situations.
For a more detailed explanation of body worn solutions, please read our article on how it all works.
Included Accessories
- Activation kit
- Installation guide
- DC connector
- I/O connectors
- Cable ties
- Velcros
Key technical features of the AXIS W401 Body Worn Activation Kit
System on chip (SoC) |
|
| Model: | S6LM |
| Memory: | 1024 MB RAM, 8 GB Flash |
System integration |
|
| Application Programming Interface: | Open API for software integration, including VAPIX® and AXIS Camera Application Platform (ACAP |
| Event conditions: | Device status: above/below/within operating temperature, IP address blocked/removed, network lost, new IP address, system ready, within operating temperature
I/O: Bluetooth® beacon signal received, digital input is active, manual trigger, virtual input is active MQTT: MQTT client connected, stateless Scheduled and recurring: schedule |
| Event actions: | I/O: toggle I/O once, toggle I/O while the rule is active
LEDs: flash status LED, flash status LED while the rule is active MQTT: send MQTT publish message Notification: HTTP, HTTPS, TCP and email Security: erase configuration SNMP trap messages: send, send while the rule is active Wireless: broadcast signal |
Cybersecurity |
|
| Edge security: | Software: Signed OS, brute force delay protection
Hardware: Axis Edge Vault cybersecurity platform Secure keystore: secure element (CC EAL 6+, FIPS 140-3 Level 3), system-on-chip security (TEE) Axis device ID, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR |
General |
|
| Casing: | Colour: black NCS 9000-N |
| Power: | Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 2
Typical 1.7 W, max 6.49 W or 10–28 VDC, typical 1.8 W, max 6.49 W |

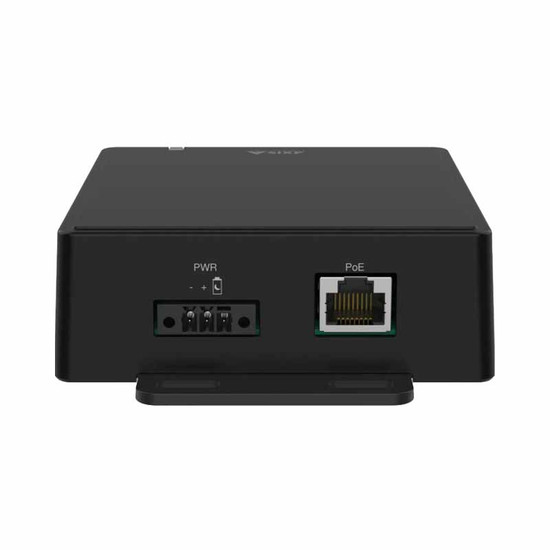

| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX PoE

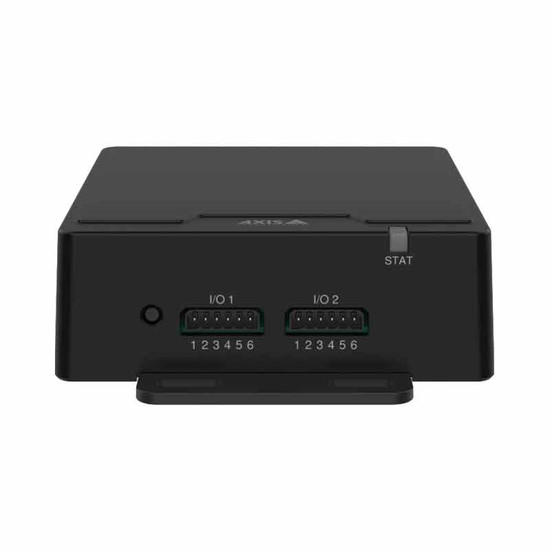

I/O: 2 x 6-pin 2.5 mm terminal block for 8 x supervised configurable I/Os (12 V DC output, max load 50 mA) Power: 3-pin terminal block for 10-28 VDC input |
| Wireless interface: | Bluetooth® 5.1 Low Energy and Classic
Wi-Fi® 5 a/b/g/n/ac @ 2.4 GHz, 5 GHz |
| Operating conditions: | -20 °C to 60 °C (-4 °F to 140 °F)
Humidity 10–85% RH (non-condensing) |
| Dimensions: | See overall dimensions in the product data sheet |
| Weight: | 166 g (0.4 lb) |
| Box content: | AXIS W401 Body Worn Activation Kit
Installation guide DC connector I/O connectors Cable ties Velcros |
| Warranty: | Axis 5-year warranty |
