| 01613-001

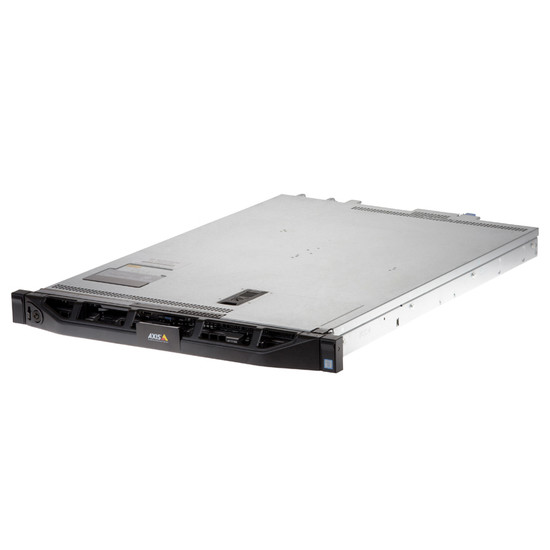

Axis Camera Station S1132 Recorder, 32 channel (expandable up to 48 channels) and 16TB storage

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Designed for medium-sized installations, this 32-channel recording solution is pre-installed with Axis Camera Station 5 software. Its intuitive interface provides all the necessary features required for reliable monitoring.

  • Preloaded with Axis Camera Station 5
  • Site map provides system overview
  • 16TB of storage
  • 32 camera channels (expandable up to 48)
Hurry! Only left

This product is discontinued, an alternative model is the Axis S1232

Overview of Axis Camera Station S1132 Recorder

Designed for medium-sized installations, this 32-channel recording solution is pre-loaded with Axis Camera Station 5 (ACS 5) and other necessary system software making it 'out-of-the-box' ready with preconfigured settings to help reduce installation time. The unit provides 16TB storage capacity and support for up to 32 device licences (which can be upgraded separately to 48 devices). It's also compatible with an extensive range of Axis IP camera and encoders - for flexible integration options.

This versatile recorder features a powerful CPU for fast processing of data and an operating system stored on a Solid State Drive (SSD) - ensuring quicker start-up and safeguarding in the event of failure. Offering support for 32 camera channels simultaneously, this network recorder also offers a storage capacity of 4 x 4TB (12TB of useable space after RAID). The rack-mountable appliance is capable of recording high-quality CCTV footage at up to 384Mbit/s per second and users can combine an Axis desktop terminal to form a high-performance surveillance solution.

Pre-installed with Axis Camera Station 5 (ACS 5) software, this unit offers an intuitive user interface that provides all the necessary features required for reliable monitoring. Site map functionality provides users with a full visual overview of the system and responsive pan/tilt/zoom (PTZ) controls allow simplified navigation throughout the camera channels. Additionally, the straightforward configuration and management of camera-based video detection alarms helps to ensure high levels of dynamic scene awareness.

Recordings can be configured to run continuously, in response to an event / alarm signal or for scheduled periods to best suit the user's requirements. The software's 'smart' video search functions assist in the quick investigation and retrieval of data, whilst also enabling safe and reliable export of recordings for evidential purposes. In addition, this data can be exported manually or scheduled to give the user full flexibility of how the video footage is managed.

This rack server is compatible with both Axis Camera Station S9001 Mk II and S9002 Desktop Terminals, enabling users to centrally manage their IP devices via an 'all-in-one' surveillance workstation. Pre-loaded with an ACS client, these terminals are also pre-configured to minimise installations.

Key features and benefits:

  • Rack mount, 32-channel network video recorder provides a reliable monitoring and recording solution
  • 4 x 4TB storage offers plenty of capacity for medium-sized business applications
  • Compatible with all Axis IP cameras and encoders - enabling use within a variety of installations
  • Pre-installed Axis Camera Station 5 software provides advanced video management
  • 32 Axis Camera Station licences included, can be upgraded to 48 licences (sold separately)
  • Simple set up with pre-configured system settings helps to minimise installation time
  • Visual timeline and Smart Search functionality enable quick and easy retrieval of recordings and video files
  • Audio support enables communication between the user and persons close to the camera (camera model dependant)
  • Site map support enables the operator to have an overview of the full camera system
  • All hardware included has a 5-year warranty

Typical applications

The Axis Camera Station S1132 is an ideal choice for medium-sized business requiring a reliable and high-performance CCTV recording solution. Typical applications include manufacturing warehouses, university campuses and hotel lobbies.



  • Installation Guide
  • Rack rails
  • Power cords for rack mounting
Back To Top

Key technical features for Axis Camera Station S1132 Recorder

Form factor rack server
Number of cameras: base configurations 32, max 48 with upgrade (sold separately)
O/S and video management software: Axis Camera Station 5

8 GB


16 TB (4x4 TB) Enterprise Class HDD, 7200 rpm 12 TB usable space after RAID Total HDD slots: 4 Factory RAID level: 5 RAID levels: 0, 1, 5, 6, 10

Maximum power consumption:


Power input: 100 - 240 V AC, 50/60 Hz, 7.4 - 3.7 A
System I/O rear I/O expansion: 4x USB 2.0 2x Ethernet (RJ45) 2x VGA 1x Serial port
Environment: -40°C to 65°C
Included accessories: installation guide, rack rails, power cords for rack mounting
Multiple video export formats: yes
Smart Search: yes
Alarm Manager: not given
3rd-party application support (ex. video analytics, data storage): yes
Operating system:  Microsoft® Windows® 10 Enterprise Operating system recovery: yes Operating system drive: 240 GB SSD
Map function: yes
Compatibility: supports Axis IP devices
Compression: H.264, M-JPEG
PTZ support: yes
Hardware warranty: 5 years
Dimensions: 610mm x 482mm x 43mm (24 x 19 x 1.69 in), 1U chassis
