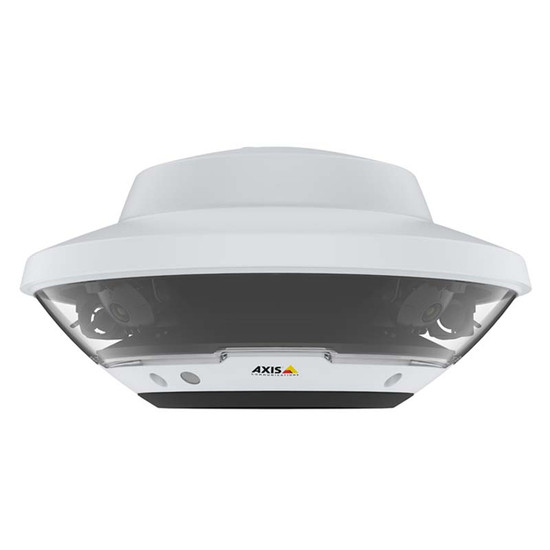

Overview of the Axis Q6100-E
- Four exchangeable/tiltable lenses each provide 5MP resolution video at up to 20 fps
- 360° overviews for full situational awareness
- Designed for operation with any Axis Q61 PTZ network camera (not included)
- Can be used on its own with an Axis TQ6812-E solo kit
- Autopilot included (requires a connection with Axis Q61-E PTZ)
The advanced Q6100-E features four 5MP sensors that work together to provide 360° overviews of outdoor scenes. It can also use a connected Axis Q6135-LE or Axis P5676-LE network camera (not included) to gain up-close views into regions of interest - offering a full situational awareness solution in a single unit. The unit includes PoE support for simple installation, as well as handy technologies such as autopilot and one-click digital PTZ to help provide clearer detail and easier event analysis within areas of interest.
This camera can only be used as a standalone unit when an Axis TQ6812-E solo kit is fitted.
Camera
Each of the unit’s four lenses can be manually tilted to achieve the user’s desired viewing direction – enabling the capture of clear overview images. If the sensor is not required for overview purposes, it is also possible to swap each lens with a 6 or 12mm lens to provide a narrower field of view and allow users to focus on specific areas of interest. Support for one-click PTZ control enables users to quickly click on a region of interest, and then the connected Q61-E camera will move and zoom in to this location - providing greater detail for easier event analysis.
Imaging
Wide dynamic range (WDR) technology renders details evenly in strongly backlit scenes, ensuring objects and individuals can be identified clearly. Axis Corridor Format is also included which vertically orientates the view in narrow scenes – ideal for use in narrow alleyways or long streets.
Video analytics
Video motion detection and tampering alarms can be configured to enhance dynamic scene awareness. With Autopilot technology included, this high-quality unit is able to enhance the PTZ functionality of any Axis Q61-E camera (sold separately) – automatically tracking movement when activity is detected by one of the four 5MP sensors. In addition, directional audio detection is included which redirects the connected PTZ camera to the audio source whenever an audio incident is detected.
Video management
Recordings can be written to the onboard SD card (not included) to provide a helpful backup of data if the network fails. It is also possible to store data to network attached storage devices (NAS) for implementations that require larger storage capacity. For effective video management, the camera can be integrated with high-performance video management applications such as Axis Camera Station and Milestone XProtect. This model, connected with an Axis Q61-E camera, is also compatible with Morphean Cloud CCTV.
Installation

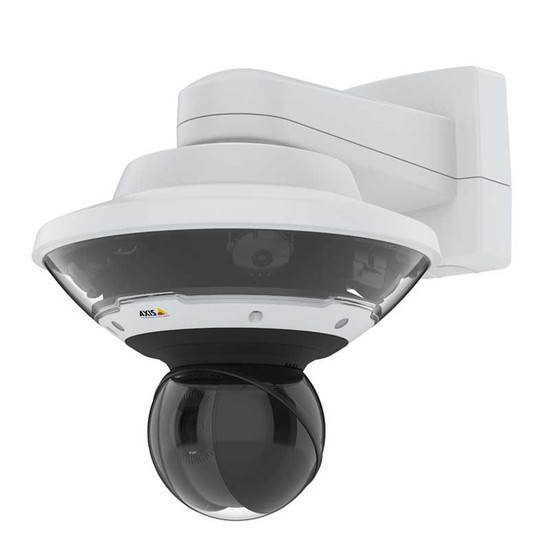

This model is not a standalone product and is designed for integration with Axis Q61-E series IP cameras (using the same brackets and network cables) which can be mounted inside the Q6100-E. PoE support simplifies the installation process by providing power and network connectivity over a single cable, while the unit’s IP66 and IK10-rated casing ensures reliable use in outdoor locations that are prone to tampering attempts.
Please note: there is no power supply included with this unit. It is power over ethernet capable.
Key features & benefits
- Four 5MP sensors deliver high-quality 360° overviews at up to 20 fps
- Each sensor can be manually tilted to achieve the desired viewing angle
- Lenses can be exchanged so that users can obtain a narrower field of view – enabling focus on areas of interest
- IP66 and IK10-rated casing for durable use in outdoor areas that are prone to tampering attempts
- Easily enhances any Axis Q61-E installation by providing 360° overviews for full situational awareness
- IR cut filter delivers monochrome video in near darkness
- WDR technology ensures the capture of details in high-contrast scenes
- Configurable video motion detection and tamper alarms alert users of possible incidents in real-time
- Autopilot technology and one-click zoom enable automatic PTZ tracking when integrated with an Axis Q61-E series camera
- Integrated edge storage (SD card not included) provides a backup solution if the network fails
- PoE support for simple and cost-effective installation
Typical applications
Designed for integration with the Axis TQ6812-E solo kit or an Axis Q61-E camera, this multi-sensor unit delivers high-quality 360° overviews and is ideal for large outdoor spaces that require full situational awareness. Typical applications include university campuses, city surveillance and large car parks.
Accessories
Included:
- Installation guide
- User manual
- Windows decoder 1-user licence
- Q61-E adapter
- Bayonet screws
Optional:
- PoE midspan
- MicroSD card
- Optional lenses
- Axis TQ6812-E solo kit
Mounting options

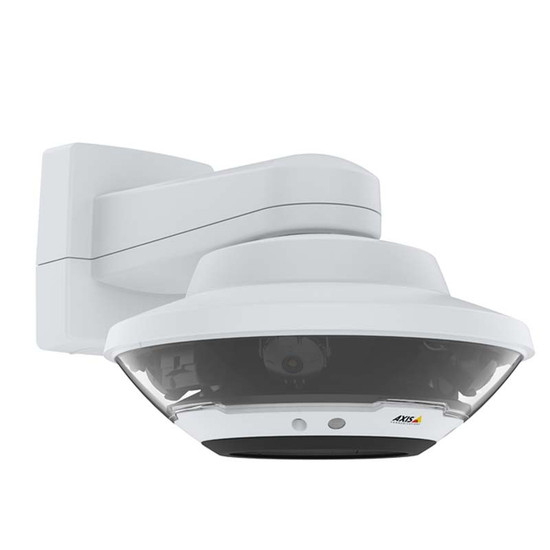

- Wall mounting - Axis T91G61
- Ceiling mounting - Axis T91B63
- Pole mounting - Axis T91G61 and Axis T91B57
- Parapet mounting - Axis T94A01D and Axis T91D62
Key technical features of the Axis Q6100-E
Camera |
|
| Environment: | outdoor (IP66 and IK10-rated) |
| Type: | for integration with Axis Q61-E cameras |
| Sensor: | 4 x 5MP progressive scan RGB CMOS, 1/2.5” |
| Lens: | fixed iris, auto focus, 2.8 mm, individual sensor horizontal field of view: 90° total horizontal field of view: 360° |
| PTZ: | Digital PTZ only (full PTZ through connected Q61-E PTZ camera) |
| Audio: | none |
| Power: | Power-over-Ethernet, typical: 9W, max: 23W |
| Memory: | 2048MB RAM, 512MB Flash |
Imaging |
|
| Resolution: | 4 x (2592 x 1944) to (320 x 240) |
| Compression: | H.264 (MPEG-4 Part 10/AVC), Main and High Profiles, H.265 (MPEG-H Part 2/HEVC), Main Profile |
| Frame rate: | 20 fps |
| Video streaming: | multiple, individually configurable streams in H.264 and H.265, Axis Zipstream technology in H.264 and H.265, controllable frame rate and bandwidth, VBR/ABR/MBR H.264/H.265 |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | colour: 0.4 lux, b/w: 0.03 lux |
| IR illumination: | none |
| Video overlay: | text and image |
| Image settings: | resolution, compression, saturation, brightness, sharpness, contrast, white balance, exposure level, exposure mode, shutter & gain fine tuning of behaviour at normal and low light, polygon privacy masks (maximum 8 per channel), WDR, dynamic text, image overlay |
Analytics |
|
| Application Programming Interface: | open API for software integration, including VAPIX and AXIS Camera Application Platform, AXIS Video Hosting System (AVHS) with One-Click Connection. ONVIF profiles S/G/T |
| Event triggers: | included analytics: Directional audio detection, Autopilot, AXIS Video Motion Detection, AXIS Guard Suite including AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard, active tampering alarm, edge storage events, virtual inputs through API, device status: above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, storage failure, system ready, within operating temperature, edge storage: recording ongoing, storage disruption, I/O: manual trigger, virtual input, PTZ: PTZ ready, scheduled and recurring: scheduled event, video: day-night mode, live stream open, tampering. Supported analytics: support for Axis Camera Application platform enabling installation of third-party applications |
| Event action: | record video: SD card and network share, upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email, pre- and post-alarm video or image buffering for recording or upload, notification: email, HTTP, HTTPS, TCP and SNMP trap, PTZ: PTZ preset, overlay text, day/night mode, Status LED, WDR mode |
| Privacy masking: | yes |
Video Management |
|
| On-camera recording: | support for SD/SDHC/SDXC card and encryption, recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, ONVIF support for 3rd party NVRs, Milestone Husky NVRs |
| Video Management Software: | Axis Companion, Axis Camera Station, Milestone XProtect |
| Cloud: | Morphean Cloud CCTV, CamStreamer Cloud |
General |
|
| Network connections: | RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE, RJ45 10BASE-T/100BASE-TX/1000BASE-T Q61-E port |
| Alarm I/O connections: | none |
| Dimensions: | Ø361mm x 192mm |
| Weight: | 4.0kg |
| Casing: | IP66-, NEMA 4X- and IK10-rated Polycarbonate hardcoated dome, aluminium casing |
| Operating temperatures: | -40°C to 50°C |
| Mounting methods: | ceiling, wall |
| Installation aids: | installation focus, lens selection, positioning calibration, ptz remote connection |
| Warranty: | 5-year |
| Power consumption: | max. 23W |
| Protocols supported: | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog |
| Security: | password protection, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection |
| Approvals: | EMC: EAC, EN 55032 Class A, EN 55035, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KN35. Safety: IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22. Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9). Network: NIST SP500-267 |
