Axis Communications | 01710-001

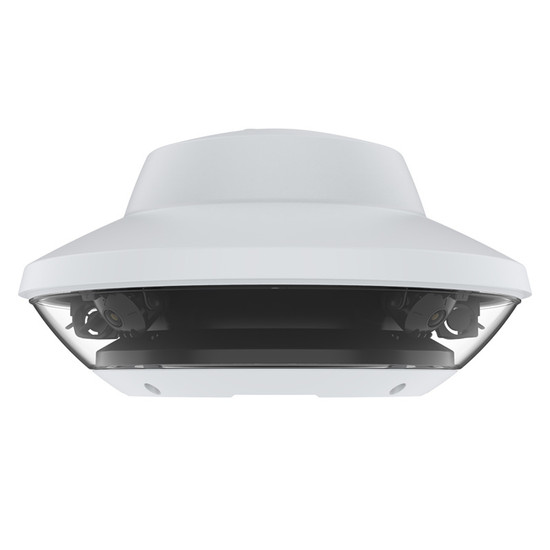

This multi-sensor unit is designed to be used with an Axis Q60-E series IP camera to deliver high-quality 360° overviews - ideal for businesses looking to monitor large outdoor spaces that require full situational awareness.
Comprising four 5MP sensors, this innovative IP66 and IK10-rated unit is designed for use with any Axis Q60-E series network camera (sold separately) to offer full situational awareness in outdoor scenes. The unit includes support for PoE; whilst handy features such as autopilot and one-click digital PTZ help to provide clearer detail and easier event analysis within regions of interest.
Each of the four lenses provides a 90° view and is manually tiltable to achieve the user’s desired viewing direction capturing detailed overview images. Alternatively, if a sensor is not required for overview purposes the original lens can be swapped with a 6 mm or 12 mm lens to provide a narrower field of view and allow the user to focus in on specific areas of interest.
Wide dynamic range (WDR) technology helps to improve images captured in challenging lighting conditions by compensating for bright light and dark shadows - ensuring individuals and objects are clearly visible.
Video motion detection and tampering alarms are configurable and help to alert users of activity and potential vandalism via a choice of notification methods, including email. Thanks to Autopilot technology, the unit is also able to enhance the PTZ functionality of any Axis Q60-E camera (sold separately), automatically tracking movement when detected in the 360° overview. In addition, the handy one-click zoom feature enables the user to simply click on a region of interest, and then the connected Q60-E will zoom in to provide greater detail and easier event analysis.
Edge storage is included, and recordings can be written to the onboard SD card (not included) - providing a helpful backup of data if the network fails. Storage to network attached storage devices (NAS) is also supported, meaning implementations requiring larger storage capacity are catered for. High-quality remote video management is possible through integration with applications such as Axis Camera Station and Milestone XProtect.
This camera is not a standalone product and is designed for integration with Axis Q60-E Series IP cameras (using the same brackets and network cables) to help increase surveillance area coverage. The Q60-E camera can be mounted inside the Q6010-E and support for PoE delivers power and network connectivity to both cameras in one cable.
Created for integration with an Axis Q60-E camera, the Axis Q6010-E delivers high-quality 360° overview surveillance and is ideal for large outdoor spaces that require full situational awareness. Typical examples include car parks, high street shopping centres and zoos.
Included:
Optional:
Camera |
||
Environment: | outdoor | |
Type: | for integration with Axis Q60-E cameras | |
Sensor: | 4x 5MP 1/2.5" progressive scan RGB CMOS | |
Lens: | fixed iris, auto focus, 2.8 mm, individual lens horizontal field of view: 95°, total horizontal field of view: 360° | |
Audio: | none | |
Power: | Power-over-Ethernet, typical: 9W, max: 22W | |
Memory: | 2048MB RAM, 512MB Flash | |
Video |
||
Resolution: | 4x (2592 x 1944) to (320 x 240) | |
Compression: | H.264 (MPEG-4 Part 10/AVC), Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main Profile | |
Frame-rate: | 20 fps | |
Bandwidth control: | Multiple, individually configurable streams in H.264 and H.265, Axis Zipstream technology in H.264 and H.265, controllable frame rate and bandwidth, MBR H.264/H.265 | |
Day/night: | automatically removable infrared-cut filter | |
Minimum illumination: | colour: 0.4 lux, b/w: 0.03 lux | |
Digital zoom/PTZ | yes | |
Video overlay: | text and image | |
Imaging: | Resolution, compression, saturation, brightness, sharpness, contrast, white balance, exposure level, exposure mode, shutter & gain fine tuning of behaviour at normal and low light, polygon privacy masks, WDR, dynamic text, image overlay | |
Viewing, detection & recording |
||
Privacy masking: | yes | |
Number of users: | not given | |
External alarm inputs and outputs | not given | |
Alarm detection: | included: Autopilot, AXIS Video Motion Detection, AXIS Guard Suite including AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard, active tampering alarm, edge storage events. Supported: Axis Camera Application Platform enabling installation of third-party applications |
|
Alarm action: | notification: email, HTTP, HTTPS and TCP and SNMP trap, video recording to edge storage and network share, send video clip, overlay text, day/night mode, Status LED, WDR mode | |
Pre-/post-alarm buffer: | yes | |
On-camera recording: | Support for SD/SDHC/SDXC card and encryption, recording to network-attached storage (NAS) | |
Recording software supported: | Axis Companion Software, Axis Camera Station | |
Connections |
||
Power: | Power over Ethernet | |
Network: | RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE, RJ45 10BASE-T/100BASE-TX/1000BASE-T Q60-E port, max. 22W | |
Alarm I/O | not given |
Other |
Dimensions: | Ø395mm x 201mm | |
Weight: | 4.5kg excluding an Axis Q60-E PTZ network camera | |
Casing: | IP66-, NEMA 4X- and IK10-rated, polycarbonate dome, aluminium casing | |
Warranty: | 5-year | |
Mounting methods: | ceiling, wall, pole | |
Operating temperatures: | -40°C to 50°C | |
Power consumption: | without PTZ: max. 22W | |
Dynamic DNS: | yes | |
Protocols supported: | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT |
|
QoS: | yes | |
Security: | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware | |
ONVIF compliant: | yes, profiles G, S and T |
