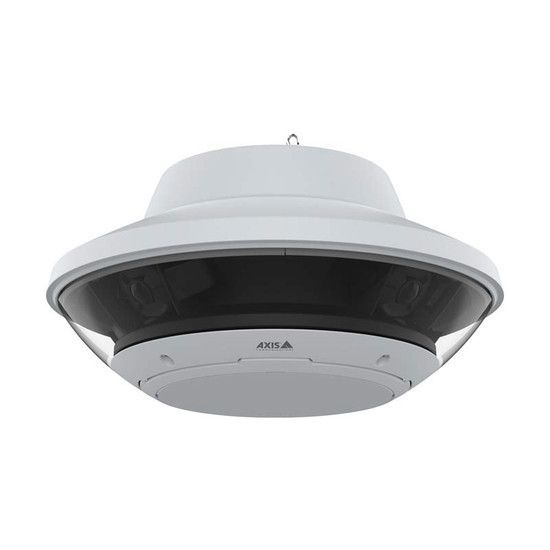

Overview of the AXIS Q6020-E outdoor multi-sensor unit for Q60-E cameras
- Designed for operation with an AXIS Q60 PTZ camera for enhanced situational awareness
- 4 x 5MP adjustable lens sensors for full 360° overviews
- Crisp and clear images in challenging lighting with Forensic WDR and Lightfinder 2.0
- Deep learning processing unit enables powerful video analytics on the edge
- Autofocus and auto-alignment functionality eliminates the need for manual fine tuning

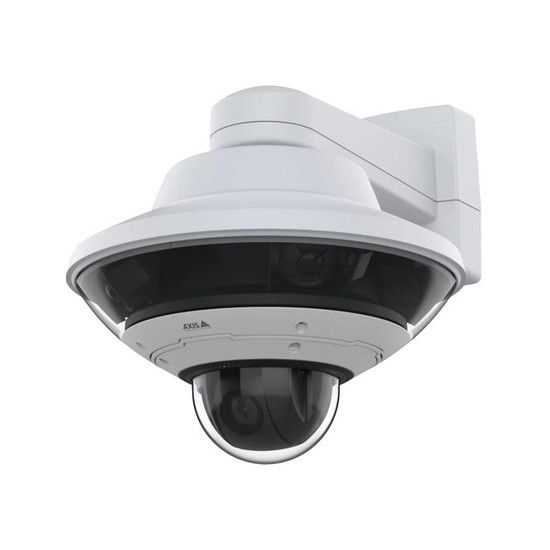

This outdoor-ready unit features four 5MP sensors, each offering a 90° view and are manually adjustable, enabling flexible coverage up to 360° overviews. Designed for use with the AXIS Q60-E PTZ series cameras (sold separately) it allows full situational awareness and dynamic response to real-time events thanks to supported AI-based video analytics. Alternatively, if a sensor is not required for overview purposes the original lenses can be swapped for 7.6mm, 14.1mm, 21.4mm or 30.8mm options to provide a narrower field of view and allow the user to focus in on specific areas of interest. With WDR for improved clarity in varied lighting and IP66/IK10 ratings for durability, it’s ideal for wide-area surveillance.

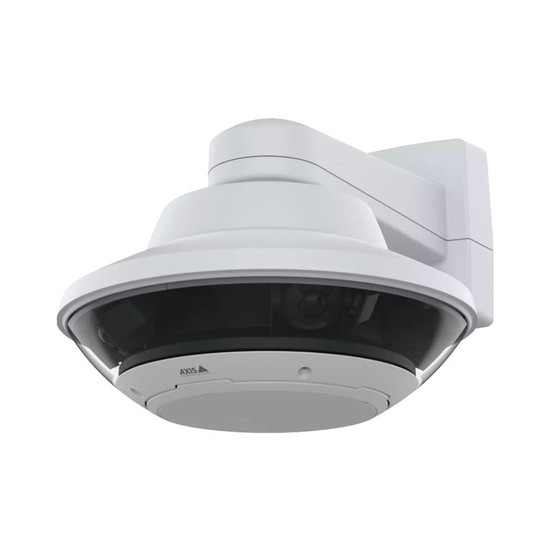

The unit supports PoE and includes autofocus and auto-alignment for quicker setup, minimising manual fine-tuning. The unit can be mounted directly to walls and ceilings with additional accessories, supporting both unit and PTZ camera together.
Please note: This unit is not a standalone camera unless used alongside the AXIS TQ6820-E Solo Kit, or integrated with a compatible AXIS Q60 PTZ camera, which are both available separately.
Video Analytics
Cutting-edge AXIS Object Analytics (AOA) enables reliable detection, classification, and counting of people and vehicles—including cars, lorries, buses, and bikes. It processes video on the edge for faster alerts to speed up incident response. Thanks to the deep learning processing unit, it effectively filters out non-relevant motion such as animals or environmental movement for significantly reduced false alarms. Detected objects are clearly marked with colour-coded bounding boxes, visible in both the camera view and the video management system. Configure up to 10 concurrent virtual rules such as line crossing, zone entry, and area occupancy to enhance situational awareness and gather operational insights.
This camera also supports other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
See below for available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
- Morphean Cloud CCTV
Example Use Cases
Flexible and versatile, this advanced multi-sensor camera is ideal for high-performance monitoring in fast-paced dynamic areas, including:
- Perimeters and fences
- City streets, parks and town centres
- Car parks and toll booths
- Public transport hubs
- Industrial sites and warehouses
- Schools or campus grounds
Compatible Camera Models
- AXIS Q6074-E outdoor PTZ IP camera
- AXIS Q6075-E outdoor PTZ IP camera
- AXIS Q6078-E outdoor PTZ IP camera
Accessories included
- Camera
- Adapter bracket
- Installation guide
- Owner authentication key
Key technical features of the AXIS Q6020-E in/outdoor multi-sensor unit for Q60-E cameras
Camera |
|
| Environment: | indoor/outdoor |
| Type: | Fixed multi-sensor unit |
| Sensor: | 4 x 1/1.7” progressive scan RGB CMOS
Pixel size 2.9 µm |
| Lens: | 3.7 mm, F2.0
Horizontal field of view: 360°, 108.4° for each sensor Vertical field of view: 84° Minimum focus distance: 1.0 m (3.3 ft) Autofocus, M14 mount, fixed iris |
| Day/night: | automatically removable infrared-cut filter |
| Camera adjustment: | Pan ±180°, tilt -40 to +75°, rotation ±95° |
| Minimum illumination: | Colour: 0.06 lux at 50 IRE, F2.0
B/W: 0.03 lux at 50 IRE, F2.0 |
Imaging |
|
| Resolution: | 4 x 2592x1944 to 320x240
Default: 2592x1944 |
| Frame rate: | Up to 30 fps (50/60 Hz) in all resolutions |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Up to 20 unique and configurable video streams1
Axis Zipstream technology in H.264, H.265 and AV1 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265/AV1 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, compression, rotation: 0°, 90°, 180°, 270° including corridor format, text and image overlay, dynamic text and image overlay, overlay widget, 32 individual polygon privacy masks including mosaic privacy masks Scene profiles: outdoor, indoor, forensic |
| Installation aids: | Pixel counter, remote zoom and focus, level grid |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, active tampering alarm Supported Support for AXIS Camera Application Platform enabling installation of third-party applications |
Multisensor analytics |
|
| Applications: | 4 channels analytics support |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, object in area - Autopilot, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoringBETA, motion in area, motion in area - Autopilot, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: vehicle color, upper/lower clothing color, confidence, position |
Video Management |
|
| On-camera recording: | Support for microSD/microSDHC/microSDXC card Recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-8 (x2) |
| Compute capabilities: | Deep learning processing unit (DLPU) |
| Audio: | Output through speaker pairing or portcast technology |
| Power: | Panoramic camera with Solo kit:
Power over Ethernet (PoE) IEEE 802.3bt 60 W Power consumption: typical 14.3 W, max 51 W Panoramic camera with PTZ camera: Warmer than -30 °C (-22 °F): Power over Ethernet (PoE) IEEE 802.3bt 90 W Power consumption: typical 30.3 W, max 80 W Colder than -30 °C (-22 °F): AXIS High PoE 120 W Power consumption: typical 30.3 W, max 103.4 W Features: power profiles, power meter |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
USB: for Wi-Fi dongle compatible with Mediatek Inc MT7612U chip |
| Dimensions: | For the overall product dimensions, see the dimension drawing
in the product datasheet.
Effective Projected Area (EPA): 0.058 m2 (0.62 ft2) |
| Weight: | 4.7 kg (10.4 lb) |
| Casing: | IP66-, NEMA 4X- and IK10-rated
Polycarbonate dome Aluminum and polymer casing Colour: white NCS S 1002-B For repainting instructions, go to the product’s support page. |
| Operating temperatures: | Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F)
Panoramic camera with Solo kit: Temperature: -50 °C to 55 °C (-58 °F to 131 °F) Start-up temperature: -40 °C (-40 °F) Panoramic camera with PTZ camera: Temperature with Power over Ethernet (PoE) IEEE 802.3bt 90 W: -40 °C to 55 °C (-40 °F to 131 °F) Start-up temperature: -30 °C (-22 °F) Temperature with Axis High PoE 120 W: -50 °C to 55 °C (-58 °F to 131 °F) Start-up temperature: -40 °C (-40 °F) Humidity: 10–100% RH (condensing) |
| Warranty: | 5-year |
| Firmware support to: | 31-12-2033 |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure keystore: Secure element (CC EAL 6+, FIPS 140- 3 Level 3), system-on-chip security (TEE) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3 , IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3 , TLS v1.2/v1.33 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
