| 01039-001

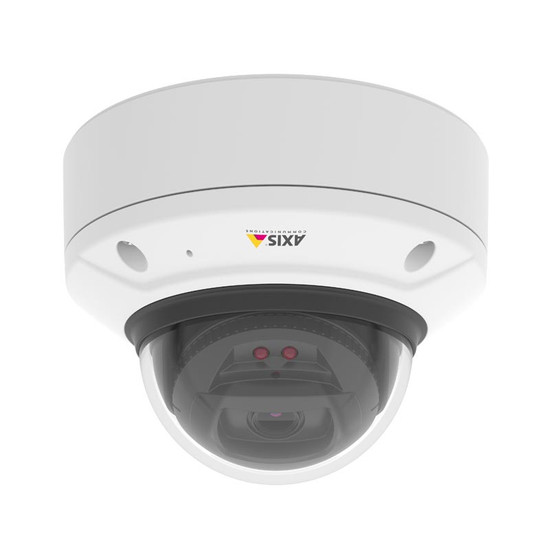

Axis Q3515-LV indoor vandal-resistant dome IP camera, HD 1080p resolution, up to 60m IR, Forensic WDR, Lightfinder and PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

A robust choice for users required reliable, 24-hour monitoring of busy indoor locations - this fixed dome is vandal-resistant and features advanced Axis imaging technologies for improved images in challenging lighting conditions.

  • Axis Forensic WDR & Lightfinder
  • Remote zoom & focus to help installation
  • Up to 60m OptimisedIR illumination
  • Choice of varifocal lens: up to 105° view
  • HD 1080p resolution
Hurry! Only left

This product is discontinued, an alternative model is the Axis Q3536-LVE

Overview of the Axis Q3515-LV

Part of the advanced Q35 series from Axis, this robust dome IP camera delivers smooth HD 1080p resolution at up to 100 frames per second (fps). It’s IK10-rated housing, combined with support for true day/night recording and integrated infrared (IR) illumination, provides a durable round-the-clock monitoring solution for exposed indoor areas. In addition, using a range of Axis’ advanced imaging technologies, this unit can capture clear video footage even in challenging light conditions.

The camera can be supplied with either a 9mm or 22mm varifocal lens, which offer horizontal views up to 105° (9mm) or 36° (22mm) – allowing the desired viewing angle to be easily set during installation. Capable of multi-view streaming, the model allows up to 8 areas within the field of view to be cropped and streamed individually for live viewing or recording.

Integrated IR LEDs provide up to 40m (9mm) or 60m (22mm) of night vision, while Axis' OptimisedIR technology ensures an evenly illuminated image by automatically adapting the angle of illumination to the zoom level set. Images captured in high contrast scenes are improved with Forensic WDR. By ensuring details in both bright and dark areas are not lost, objects and individuals can be more easily identified. The unit also has the ability to deliver full colour video in dimly lit environments using Axis’ Lightfinder technology.

Support for audio is provided by connecting a microphone and speaker (not included) via the audio I/O ports, enabling users to hear and communicate to those close to the camera. Audio, motion detection and tampering alarms can be used in combination with connected external devices to trigger alarms, start recording to the on-board microSD card (not included) and also alert users of activity via email notification.

Handy features are included to help simplify installation such as PoE, as well as remote zoom and focus which eliminates the need for hands-on fine tuning. Axis Zipstream technology is also supported to help lower bandwidth and storage requirements. It does this by analysing and optimising the video stream in real-time, recording interesting detail in high quality, whilst filtering other areas out.

Please note: there is no power supply included with this unit. It is power over ethernet capable.

Key features & benefits

  • Delivers HD 1080p resolution at up to 50 frames per second (WDR on), or up to 100 fps (WDR off)
  • True day/night functionality with integrated IR-cut filter provides round-the-clock surveillance
  • Vandal-resistant, IK10-rated housing offers robust protection in locations where camera tampering may occur
  • Varifocal lens offers horizontal views up to 105°(9mm) or 36°(22mm)
  • Multiple sections of the original image can be cropped and viewed simultaneously using multi-view streaming
  • Maximum of 40m (9mm) or 60m (22mm) OptimisedIR night vision for clear CCTV monitoring in dark conditions
  • Forensic WDR improves visibility and ensures the capture of details in high contrast scenes
  • Improved performance in extreme low light conditions with Axis Lightfinder technology
  • Axis Corridor Format vertically orientates the video stream – allowing the field of view to be optimised for monitoring narrow areas
  • A microphone and speaker can be connected through audio I/O ports to provide two-way audio
  • Configurable audio, video motion detection and tampering alarms help to enhance security monitoring
  • I/O port terminal block supports the connection of external devices for enhanced alarm signalling
  • Remote zoom and focus, pixel counter, auto rotation and levelling assistant features help to simplify installation
  • PoE support reduces cabling and offers a cost-effective installation solution
  • Axis Zipstream technology lowers bandwidth by analysing and optimising the video stream in real-time
  • MicroSD card (not included) storage provides a data back up in the event of network failure

Compatible recording platforms

  • Axis Camera Station
  • Milestone XProtect
  • Morphean Cloud CCTV

Typical applications

The advanced Axis Q3515-LV dome IP camera is a robust choice for users requiring reliable, 24-hour CCTV surveillance of busy indoor locations. Typical applications include manufacturing warehouses, police stations and banks.



  • Installation guide
  • Windows decoder 1-user licence
  • Drill hole template
  • Cable gaskets
  • I/O and DC connectors
  • Connector guard
  • Resistorx T20 L-key
  • Mounting bracket


  • PoE midspan
  • MicroSD card
Back To Top

Key technical features of the Axis Q3515-LV


Environment: indoor (IP52, IK10-rated)
Type: fixed
Sensor: 1/2.8” progressive scan RGB CMOS
Lens: varifocal, remote focus and zoom, P-Iris control, IR corrected, 9mm: 3-9mm, F1.2, horizontal angle of view: 105°-36°, 22mm: 9-22mm, F1.6, horizontal angle of view: 36°-15°
PTZ: digital PTZ, 2x digital zoom, 9mm: 3x optical zoom, 22mm: 2.4x optical zoom
Memory: 1 GB RAM, 512 MB Flash
Power: Power-over-Ethernet (PoE) IEEE 802.3af/802.3at, Type 1 Class 3, typical 5.6 W, max 12.5 W 8–28 V DC, typical 6.3 W, max 13.6 W
Audio: two-way, external microphone input or line input, line output, AAC LC 8/16/32/48 kHz, G.711, G.726 ADPCM 8kHz, Opus 8/16/48 kHz, configurable bitrate, support for Axis dome microphone A to be mounted inside the casing.


Resolution: (1920 x 1080) to (160 x 90)
Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
Frame-rate: HD 1080p with WDR: up to 50 fps, HD 1080p without WDR: up to 11 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, Axis' Zipstream technology in H.264, controllable frame rate and bandwidth VBR/MBR H.264
Video overlay: text and image
Day/night: automatically removable infrared-cut filter
Minimum illumination: 9mm: HD 1080p at 25 fps with WDR and Lightfinder: colour: 0.11 lux, b/w:0.02 lux, HD 1080p with WDR: colour: 0.22 lux, b/w: 0.04 lux, HD 1080p at 100 fps: colour: 0.44 lux, b/w: 0.08 lux. 22m: HD 1080p at 25 fps with WDR and Lightfinder: colour: 0.17 lux, b/w:0.03 lux, HD 1080p with WDR: colour: 0.34 lux, b/w: 0.06 lux, HD 1080p at 100 fps: colour: 0.68 lux, b/w: 0.12 lux. 0 lux with IR illumination. Optimised IR, 9mm: up to 40m IR range, 22m: up to 60m IR range.
Imaging: scene profiles, compression, colour, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, exposure control (including automatic gain control), defogging, exposure zones, fine tuning of behaviour at different light levels, Forensic WDR: Up to 120 dB depending on scene, electronic image stabilisation, barrel distortion correction, dynamic text and image overlay, mirroring of images, straighten image, rotation: 0°, 90°, 180°, 270°, auto, including Corridor Format

Viewing, detection & recording

Privacy masking: yes
Number of users: not given
Alarm detection: included: Axis Video Motion Detection, Axis Motion Guard, Axis Fence Guard, active tampering alarm, audio detection, supported: Axis Digital Autotracking, Axis Perimeter Defender, Axis Loitering Guard Support for Axis Camera Application Platform enabling installation of third-party applications
Alarm action: record video: SD card and network share, upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email, notification: email, HTTP, HTTPS, TCP and SNMP trap, overlay text, external output activation, play audio clip, zoom preset
Pre-/post-alarm buffer: yes
On-camera recording: support for microSD/microSDHC/microSDXC card recording
Direct-to-NAS storage: yes
Recording software supported: Axis Camera Station


Network: RJ45 10BASE-T/100BASE-TX PoE
Audio: two-way, 3.5 mm mic/line in, 3.5 mm line out
Alarm I/O: terminal block for two configurable supervised inputs/digital outputs (12 V DC output, max. load 50 mA), terminal block for DC input
Video: not given


Dimensions: Ø161.8 x 124 m
Weight: 1.4kg
Warranty: 5 years
Mounting methods: mounting bracket included
Operating temperatures: –10°C to 50°C
Power consumption: typical 5.6 W, max 12.5 W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPS, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
QoS: yes
Security: password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, Centralized Certificate Management
ONVIF compliant: yes
