| 02054-001

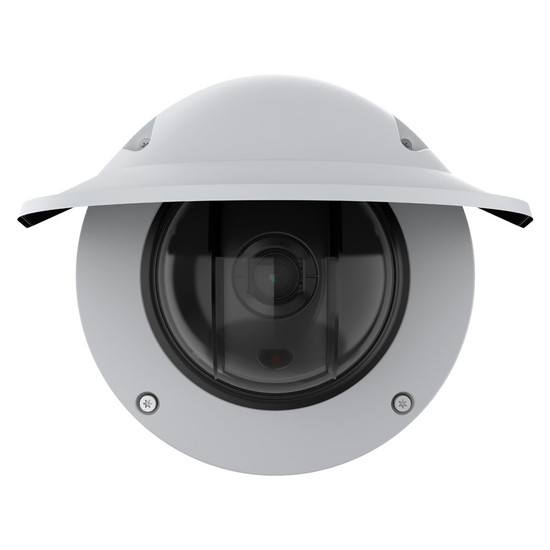

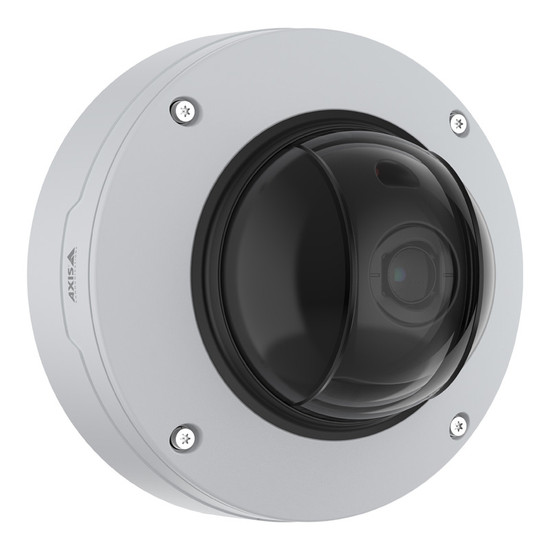

Axis Q3536-LVE outdoor IR-shielded dome with 4MP resolution, varifocal lens, Lightfinder 2.0, DLPU & 40m OptimisedIR

£1,285.20 inc VAT
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

This robust and advanced IR-shielded dome benefits from the innovative ARTPEC-8 chipset, enabling highly granular analytics - ideal for exposed outdoor areas requiring greater scene awareness.

  • 4MP resolution
  • Choice of varifocal lens: up to 103° field of view
  • IR-shielded dome to prevent reflections
  • Forensic WDR & Lightfinder 2.0
  • Deep Learning Axis Object Analytics (AOA)
  • Axis 5-year warranty
Options available:
Hurry! Only left

Overview of the Axis Q3536-LVE

  • 4MP resolution at up to 60fps
  • Varifocal lens with views up to 103°
  • 2x optical zoom for in-depth scene analysis
  • IR-shielded dome with weathershield for demanding conditions
  • Axis 5-year warranty
  • Dimensions: 124 x 184 mm

This outdoor-ready dome IP camera from Axis is part of the state-of-the-art Q series and offers smooth 4MP resolution video at up to 60 frames per second (fps), even in harsh weather and insufficient light conditions. Integrated with Axis’ latest chipset (ARTPEC-8), the Q3536-LVE features highly intuitive deep learning analytics on the edge – allowing the camera to build upon learned processes to produce more accurate results. In addition, this unit also features advanced imaging technologies, up to 40m OptimisedIR and Power-over-Ethernet Plus (PoE+).


With a choice of 9mm or 29mm varifocal lenses offering views of 53° - 103° (9mm lens) or 15° - 40° (29mm lens) users can set their desired viewing angle during installation, ensuring the entire scene is within view. 2x optical zoom provides further viewing options by enabling users to zoom in on an area of interest. Furthermore, the camera is encased in an IR-shielded dome, preventing the IR LEDs' reflections from obscuring surveillance footage, and also includes a weather shield to protect the lens from rain, snow, and sunlight.


To ensure the camera captures sharp, detailed footage in any condition, it is integrated with a range of advanced imaging technologies. The 24-hour recording is possible thanks to the unit’s IR-cut filter, which is enhanced further by the OptimisedIR LEDs that illuminate at a distance of up to 40m. Moreover, Lightfinder 2.0 technology delivers full-colour night vision whilst Forensic WDR balances under and overexposed areas of the scene to ensure all details are captured clearly.

Video analytics

Equipped with Axis’ latest chipset, the Q3536-LVE offers intelligent deep-learning analytics onboard the camera. Due to its advanced processing power, it can make use of more nuanced and accurate object analytics than seen in previous models. The deep learning processing unit (DPLU) offers improved object detection and classification, including a range of sub-categories, and more reliable line-crossing detection. Furthermore, the Axis Camera Application Platform gives users access to both certified and third-party applications to customise their surveillance solution.

Video management

Support for edge storage is included and allows data to be stored directly to the onboard MicroSD card (not included) - serving as a data backup if the network connection is interrupted. Users can manage their footage via advanced video management software such as Axis Camera Station or Milestone XProtect, providing facilities to view and edit the footage and set alerts within one platform.


Suitable for exposed outdoor areas, this unit’s casing is IP66 and IK10-rated for protection from harsh weather conditions and vandalism attempts. To simplify installation, PoE+ provides both power and network connectivity over one cable, reducing the need for additional wiring. A redundant power supply is also included to ensure that the camera continues to function in the event of PoE failure. Moreover, Axis' levelling assistant is available to use during setup to easily ensure the camera view is level.

Please note: there is no power supply included with this unit. It is power over ethernet capable.

Key features & benefits

  • Delivers high-quality 4MP resolution footage at up to 60 frames per second
  • Choice of varifocal lens offering views of 53° - 103° or 15° - 40° to be set during installation
  • Innovative ARTPEC-8 chipset enables an array of deep learning analytics
  • 2x optical zoom allows users to focus in on areas of interest
  • IR-shielded dome prevents LED reflections from obscuring the camera’s view
  • Integrated weathershield protects the lens from harsh weather conditions
  • OptimisedIR LEDs illuminate up to 40m around the camera, enhancing night vision
  • Edge Storage provides a handy backup in case of network disturbance
  • IK10 and IP66-rated casing protects the unit from vandalism and inclement weather
  • PoE+ provides network and power over one cable – simplifying installation
  • A redundant power supply can be triggered if the PoE fails
  • Levelling assistant makes setup easier by allowing the camera level to be adjusted at installation.

Typical applications

Designed for use in exposed outdoor areas that require advanced analytical insight, the Q3536-LVE offers a robust and feature-packed monitoring solution for busier areas such as airports, transit terminals and warehouses.



  • Installation guide
  • Windows decoder 1-user license
  • Drill hole template
  • Terminal block connectors for DC and I/O
  • RESISTORX® L-key
  • Connector guard
  • Cable gasket
  • Conduit adapter
  • Mounting bracket
  • Weathershield


  • PoE midspan
  • SD card

Mounting options


Back To Top

Key technical features of the Axis Q3536-LVE


Environment: outdoor
Type: fixed
Sensor: 1/1.8” progressive scan RGB CMOS
Lens: varifocal, 4.3–8.6 mm, F1.5 - 2.4 Horizontal field of view: 103°–53° Vertical field of view: 56°–30° remote focus and zoom, P-Iris control, IR corrected
PTZ: digital PTZ only
Audio: external microphone input or line input (balanced or unbalanced), line output, digital audio input, automatic gain control
Power: Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 9 W, max 23 W
Memory: 2048 MB RAM, 8194 MB Flash


Resolution: up to 2688 x 1512
Compression: H.264 (MPEG-4 Part 10/AVC) H.265 (MPEG-H Part 2/HEVC) Motion JPEG
Frame rate: with WDR: 25/30 fps with power line frequency 50/60 Hz Without WDR: 50/60 fps with power line frequency 50/60 Hz
Video streaming: multiple, individually configurable streams in H.265, H.264 and Motion JPEG
Day/night: automatically removable infrared-cut filter
Minimum illumination: with Lightfinder: colour: 0.06 lux at 50 IRE, F1.5 B/W: 0 lux at 50 IRE, F1.5
IR illumination: OptimisedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 40 m (130 ft) or more depending on the scene
Video overlay: text and image
Image settings: saturation, contrast, brightness, sharpness, Forensic WDR, white balance, day/night threshold, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, electronic image stabilisation, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, text and image overlay, dynamic text and image overlay, privacy masks, polygon privacy mask


Application Programming Interface: open API for software integration, including VAPIX and AXIS Camera Application Platform, ONVIF
Event triggers: included: AXIS Object Analytics AXIS Video Motion Detection, active tampering alarm, audio detection Supported Support for AXIS Camera Application Platform enabling installation of third-party applications
Event action: MQTT publish Notification: email, HTTP, HTTPS, TCP and SNMP trap Overlay text, zoom preset, day/night mode Pre- and post-alarm video or image buffering for recording or upload Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email External output activation via AXIS T61 Audio and I/O Interfaces with portcast technology
Privacy masking: yes

Video Management

On-camera recording: support for MicroSD/MicroSDHC/MicroSDXC and encryption, support for recording to dedicated network-attached storage (NAS)
Network video recorders: Axis NVRs, ONVIF support for 3rd party
Video Management Software: Axis Companion, Axis Camera Station, Milestone XProtect
Cloud: Morphean Cloud CCTV, CamStreamer Cloud


Network connections: Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
Alarm I/O connections: shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE DC input, 3.5 mm mic/line in, 3.5 mm line out Terminal block for two configurable supervised inputs / digital outputs (12 V DC output, max load 50 mA)
Dimensions: 124 mm x 184 mm
Weight: 2.1kg

aluminium and plastic, colour: white

Operating temperatures: -50°C to 60°C
Mounting methods: wall, ceiling
Installation aids: levelling assistant, straighten image, image grid, pixel counter
Warranty: 5 year
Power consumption: max. 23W
Protocols supported: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Security: password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralised certificate management, brute force delay protection, signed firmware, secure boot, protection of cryptographic keys with FIPS 140-2 certified TPM 2.0 module, Axis Edge Vault with Axis device ID
Approvals: EMC CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Safety CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252 Environment IEC 60068-2-X, IEC/EN 60529 IP66/IP67, ISO 20653 IP6K9K, IEC/EN 62262 IK10+ (50J), NEMA 250 Type 4X Network NIST SP500-267
