| 0773-001

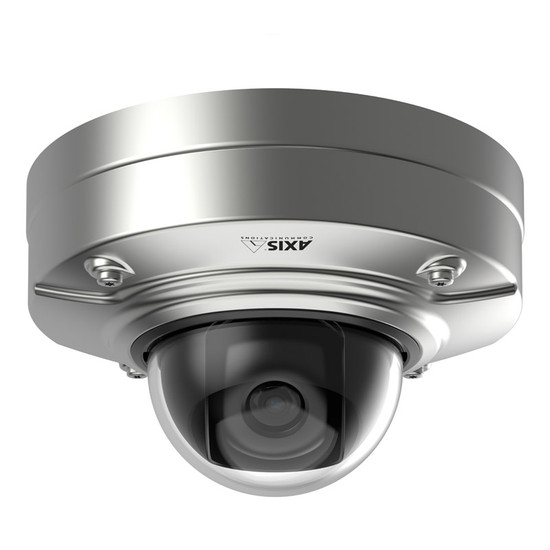

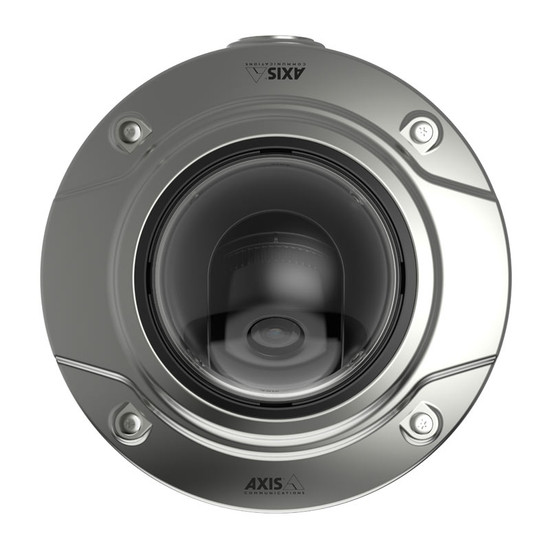

Axis Q3505-SVE Mk II outdoor stainless steel dome IP camera with HD 1080p, WDR - Forensic Capture and Lightfinder

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, an alternative model is the Axis Q3538-SLVE

Overview of the Axis Q3505-SVE Mk II

This robust dome IP camera delivers smooth HD 1080p resolution at up to 60 frames per second (fps) – 24 hours a day. Part of the advanced Axis Q35 series, it features a stainless steel housing (rated IK10+) for protection in harsh environments such as marine or industrial settings. The unit is also equipped with a range of advanced imaging technologies to ensure clear image capture even in challenging lighting conditions, and can be easily installed via Power-over-Ethernet (PoE).

The unit’s 9mm varifocal lens provides wide horizontal views (up to 105°) and allows the desired viewing angle to be easily set during installation. A 3x optical zoom allows real-time investigation into regions of interest, and quick close-ups can also be obtained easily using digital pan/tilt/zoom controls. Alternatively, the camera can be supplied with a 22mm telephoto lens (please select from the dropdown menu above) which provides varifocal viewing angles up to 36° and 2.4x optical zooming.

Wide Dynamic Range (WDR) - Forensic Capture renders details evenly in strongly backlit scenes, allowing objects and individuals to be identified more clearly, and Axis’ Lightfinder provides full colour imaging in ambient light extremes. Axis Corridor Format is also included which allows viewing in narrow scenes to be optimised by rotating the sensor 90° - preventing the recording of redundant areas.

A microphone and speaker (not included) can be connected through the audio I/O ports to enable audio recording and two-way communication with those close to the camera. Audio, tamper and video motion detection alarms can be configured to alert users of activity via notifications such as email. These alarms can also be set to trigger edge recording to the on-board MicroSD card - ensuring all movement is captured.

Installation is simplified by a handful of features including support for PoE, as well as remote zoom and focus which eliminate the need for hands-on fine tuning. In addition, Axis Zipstream technology analyses and optimises the video stream in real time, recording important details in high quality, whilst filtering out other areas to help reduce bandwidth and storage use.

Please note: this camera does not come with a power supply, if a midspan if required, please select from the drop down menu above.

Key features & benefits

  • Delivers HD 1080p resolution at full frame rate (WDR on), HD 1080p at up to 50 fps (WDR off) or HD 720p at up to 100 fps (WDR off)
  • SS-316L grade stainless steel camera housing offers protection from salt water and chemicals
  • Robust IK10+ and IP69-rated casing makes the camera suitable for use in exposed indoor or outdoor areas
  • True day/night functionality with automatic IR cut-filter provides round-the-clock surveillance
  • Choice of 9mm (wide-angle) or 22m (telephoto) varifocal lenses allow optimum scene coverage to be set during installation
  • Areas of interest can be investigated in real-time using optical zooming (up to 3x depending on lens choice)
  • WDR - Forensic Capture improves visibility and ensures the capture of details in high contrast scenes
  • Axis Lightfinder technology produces full colour imaging in ultra-low light levels
  • Narrow scenes are monitored effectively using Axis Corridor Format that vertically orientates the video stream
  • Enhanced security monitoring with a range of configurable video motion, tampering and audio detection alarms
  • Two-way audio is supported with the connection of a microphone and speaker (not included)
  • Remote zoom and focus, pixel counter, auto rotation and levelling assistant features help to simplify installation
  • PoE support reduces cabling and offers a cost-effective installation solution
  • Axis Zipstream technology lowers bandwidth by analysing and optimising the video stream in real time
  • Edge recording to MicroSD card (not included) provides a data back up in the event of network failure

Compatible recording platforms

  • Axis Camera Station
  • Milestone XProtect

Typical applications

The Axis Q3505-SVE Mk II stainless steel dome provides advanced, 24-hour surveillance in exposed areas that feature high levels of activity. Typical applications include large industrial plants, pharmaceutical production lines and shipping docks.



  • Installation Guide
  • Windows decoder 1-user license
  • Drill hole template
  • Cable gaskets
  • I/O connector
  • Connector guard
  • Stainless steel Resitorx TR20 screw bit
  • Axis T94U02S mounting bracket
  • Wall gasket

Optional (please select from the above drop down menu if required):

  • Lens size
  • PoE midspan
  • MicroSD card
Back To Top

Key technical features of the Axis Q3505-SVE Mk II

Environment: outdoor (IK10+, IP66, IP67, IP69, NEMA 4X- rated)
Type: fixed dome
Sensor: progressive scan RGB CMOS 1/2.8"
Lens: varifocal, remote focus and zoom, P-iris control, IR corrected, 9 mm lens: 3-9mm, F1.3, horizontal angle of view: 105°-36°, 22m lens: 9-22mm, F1.6, horizontal angle of view: 36°-15°
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, typical: 4.8W, max: 11.7W
Memory: 512 MB RAM, 256 MB Flash
Audio: two-way, AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8kHz, Opus 8/16/48 kHz, configurable bitrate, external microphone input or line input, line output
Resolution: (1920 x 1080) to (160 x 90)
Compression: H.264 (MPEG-4 Part 10/AVC) baseline, main and high profiles, Motion JPEG
Frame-rate: HD 1080p with WDR: 25fps, HD 1080p without WDR: up to 60 fps, HD 720p without WDR: up to 100 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, Axis Zipstream technology in H.264, controllable frame rate and bandwidth VBR/MBR H.264
Day/night: automatically removable infrared cut-filter
Minimum illumination: 9mm lens: HD 1080p @ 25fps with WDR and Lightfinder: colour: 0.11 lux, b/w: 0.02 lux, HD 1080p @ 50 fps: colour: 0.22 lux, b/w: 0.04 lux, 2mm lens: HD 1080p @ 25fps with WDR and Lightfinder: colour: 0.17 lux, b/w: 0.03 lux, HD 1080p @ 50 fps: colour: 0.34 lux, b/w: 0.06 lux
Zoom: digital PTZ, optical zoom, preset positions, 9mm lens: 3x optical zoom, 2x digital zoom, 22mm lens: 2.4x optical zoom, 2x digital zoom
Video overlay: text and image
Imaging: compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behaviour at different light levels, WDR - Forensic Capture: up to 120 dB depending on scene, Electronic Image Stabilisation, barrel distortion correction, rotation: 0°, 90°, 180°, 270°, auto, including Corridor Format, mirroring of images
Viewing, detection and recording
Privacy masking: yes
Number of users: not given
Alarm detection: Axis Video Motion Detection 3, Active tampering alarm, audio detection, support for Axis Camera Application Platform enabling installation of Axis Perimeter Defender, Axis Digital Autotracking and third-party applications
Alarm action: file upload via FTP, SFTP, HTTP, HTTPS network share and email, notification via email, HTTP, HTTPS, and TCP, external output activation, video and audio recording to edge storage, play audio clip, zoom preset, overlay text, send SNMP trap, send video clip
Pre-/post-alarm buffer: yes
On-camera recording: microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
Recording software supported: Axis Camera Station
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, typical 4.8 W, max 11.7 W
Network: RJ45 10BASE-T/100BASE-TX PoE
Audio: external balanced/unbalanced microphone input or line input, line output, 3.5 mm mic/line in, 3.5 mm line out
SD card slot: MicroSD card
Other: terminal block for two configurable inputs/outputs (12 V DC output, max. load 50 mA)
Dimensions: ø195mm x 119mm
Weight: 2kg
Casing: IP66, IP67, IP69 and NEMA 4X-rated, IK10+ (50 joules) impact-resistant, SS 316L stainless steel casing with nylon dome and dehumidifying membranes, encapsulated electronics, captive stainless steel screws, finish: coated, electropolished stainless steel
Warranty: 3 years
Mounting methods: ceiling, wall
Operating temperatures: -50°C to 60°C
Power consumption: max. 11.7W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPS, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS: yes
Security: password protection, IP address filtering, IEEE 802.1X network access control, HTTPS encryption, digest authentication, user access log
ONVIF compliant: yes, profile S
