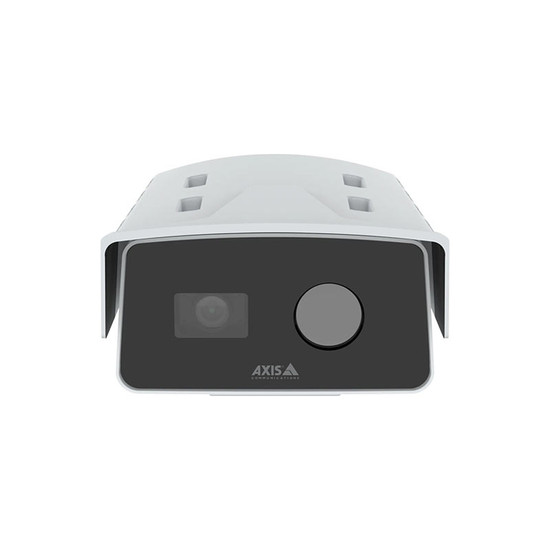

Designed for demanding and critical applications, this fixed bispectral camera combines dual 4K resolution visual lens and a 640x480 VGA thermal lens all through one unit and a single IP address. The unit’s visual lens features Lightfinder 2.0 and Forensic WDR to enhance monitoring in challenging light conditions. The highly sensitive thermal sensor enables high-accuracy detection and early warnings of moving objects regardless of weather or lighting conditions, complementing the high-level detail captured by the visual lens. Thermal visual image fusion fuses both pictures into one for enhanced scene understanding and faster response times. Robust and hard-wearing, the device is IP66/67 and IK10 rated for effective weather and vandalism protection. The unit can be mounted to walls, poles and corners with additional accessories for flexible mounting solutions.
AXIS Object Analytics (AOA) reliably detects, classifies, and counts people and vehicles, processing video on the edge for faster alerts. With a deep learning processing unit (DLPU), it reduces false alarms by filtering irrelevant motion. Objects are marked with colour-coded boxes, visible in the camera and management system. Configure up to 10 virtual rules like line crossing and zone entry to boost awareness. Built-in AXIS Image Health Analytics alerts if the image is obstructed or tampered with.
Support for AXIS Perimeter Defender on the thermal stream enables highly accurate long-range detections regardless of weather conditions. This powerful analytic ensures reliable and early classifications of humans and vehicles intruding on your property.
This camera also supports other Axis and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Available recording and video management options for this camera:
Camera |
|
| Environment: | indoor/outdoor |
| Type: | Bispectral dual-sensor |
| Sensor: | Visual: 1/1.2” progressive scan RGB CMOS, pixel size 2.9 µm
Thermal: Uncooled microbolometer 640x480 pixels, pixel size 17 μm. Spectral range: 8-14 μm |
| Lens: | Visual:
IR corrected, remote focus, P-iris control Thermal 17˚ HFoV, 24˚ HFoV, 31˚ HFoV uses: Fixed, 13.8 mm, F2.9 Horizontal field of view: 46° Vertical field of view: 26° Thermal 63˚ HFoV uses: Fixed, 5.85 mm, F1.5 Horizontal field of view: 114° Vertical field of view: 62° Minimum focus distance: 1 m (3.3 ft) Thermal: 17˚ HFoV: Athermalized 35 mm, F1.2 Horizontal field of view: 17˚ Vertical field of view: 13˚ Minimum focus distance: 32 m (105 ft) 24˚ HFoV: Athermalized 25 mm, F1.0 Horizontal field of view: 24˚ Vertical field of view: 18.5˚ Minimum focus distance: 18.5 m (61 ft) 31˚ HFoV: Athermalized 19 mm, F1.0 Horizontal field of view: 31˚ Vertical field of view: 24˚ Minimum focus distance: 8.5 m (28 ft) 63˚ HFoV: Athermalized 10 mm, F1.2 Horizontal field of view: 63˚ Vertical field of view: 46˚ Minimum focus distance: 2.8 m (9.2 ft) |
| Thermal sensitivity: | NETD <20 mK @25 °C, F1.0 |
| Day/night: | Automatic IR-cut filter
Hybrid IR filter |
| Minimum illumination: | Visual:
Colour: 0.05 lux at 50 IRE, F1.5 B/W: 0.01 lux at 50 IRE, F1.5 |
| IR illumination: | N/A |
Imaging |
|
| Resolution: | Visual:
16:9: 3840x2160 to 480x270 16:10: 2560x1600 to 640x400 4:3: 2592x1944 to 320x240 Thermal: Sensor is 640x480. Image can be scaled up to 768x578 |
| Frame rate: | Visual:
Up to 25/30 fps (50/60 Hz) in all resolutions Thermal: Up to 8.3 fps or 25/30 fps (50/60 Hz) depending on model |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Image processing: | Axis Zipstream, Forensic WDR, Lightfinder 2.0 |
| Video streaming: | Up to 12 unique and configurable video streams
Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping , exposure mode, exposure zones, defog, compression, rotation: 0°, 90°, 180°, 270° including corridor format, mirroring, dynamic text and image overlay, polygon privacy mask Scene profiles: forensic, vivid, traffic overview |
| Installation aids: | Pixel counter, remote focus, level grid |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, audio detection Supported AXIS Perimeter Defender Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoringBETA, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, colour-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Image Health Analytics: | Detection settings:
Tampering: blocked image, redirected image Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: vehicle colour, upper/lower clothing colour, bag, confidence, position |
Video |
|
| Video compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High
Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| On-camera recording: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-8 |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1
Class 4, max 25.5 W, typical (heater off, IR off) 9.4 W
10–28 VDC, max 25.5 W, typical (heater off, IR off) 9.6 W
Features: dynamic power mode, low power mode, power meter |
| I/O functionality: | 2 configurable (digital input, supervised input, digital
output) I/Os, 12 VDC output, max load 25 mA
I/O connectivity through portcast technology accessories |
| Connectors: | Audio: 3.5 mm mic/line in
I/O: 4-pin 2.5 mm terminal block Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE Power: DC input, terminal block Serial communication: RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the product datasheet. |
| Weight: | 2950 g (6.5 lb) |
| Casing: | IP66/67-, NEMA 4X- and IK10-rated5
Aluminum and plastic casing Colour: white NCS S 1002-B |
| Operating temperatures: | Temperature with full power: -40 °C to 60 °C (-40°F to
140 °F)
Temperature with low power: 0 °C to 60 °C (32°F to 140 °F) Humidity: 10–100% RH (condensing) Wind speed (sustained): 60 m/s (134 mph) |
| Warranty: | 5-year |
Security |
|
| Network protocols: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure keystore: Secure element (CC EAL 6+, FIPS 140- 3 Level 3), system-on-chip security (TEE) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3 , IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3 , TLS v1.2/v1.33 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
