AXIS Q1728-LE varifocal outdoor box camera with 4K resolution, wide or tele lens, Forensic WDR, Lightfinder 2.0, OptimizedIR, EIS, built-in wiper, AV1 video and AXIS Object Analytics

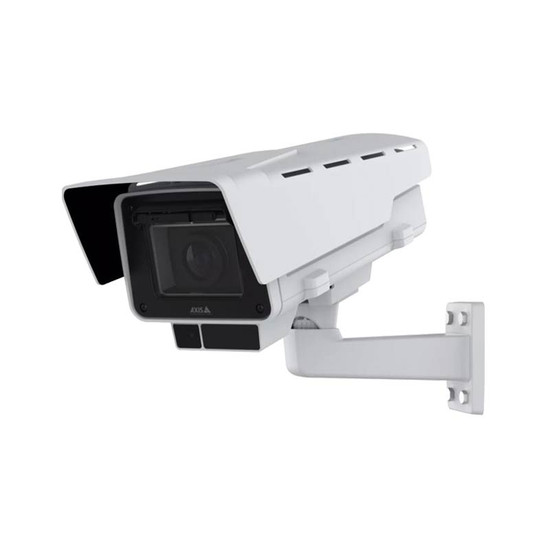

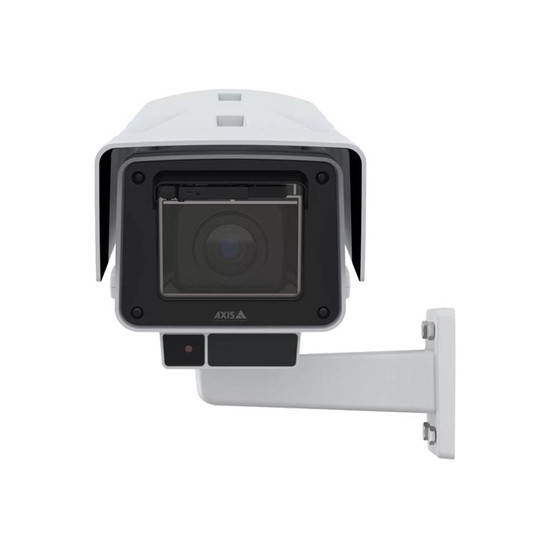

Overview of the AXIS Q1728-LE outdoor varifocal box camera

• Capture crystal clear video in 4K UHD resolution video at up to 60 frames per second
• ARTPEC-9 chipset delivers cutting-edge image processing and AI-powered video analytics
• Two lens variants for covering wide open areas or long distance monitoring
• Lightfinder 2.0 and Forensic WDR for excellent performance in adverse lighting
• Integrated OptimizedIR LEDs for illumination up to 50m in complete darkness

Delivering 4K UHD at up to 60 fps, this high-performance box camera captures detail in busy, high-traffic areas. Choose from two P-iris varifocal lenses: a wide 13mm for 108° coverage or a 48mm tele for long-range detail. Lightfinder 2.0 and Forensic WDR ensure clear, full-colour video in challenging lighting, while OptimizedIR enables visibility up to 50m in darkness. EIS ensures an electronically stabilised image at extended distances. Powered by ARTPEC-9, it supports advanced image processing and edge-based AI analytics.

The rugged IP66 and IK10-rated casing protects against tough weather and vandalism, with a built-in wiper to keep the view clear in heavy rain. The AXIS TQ1003-E Wall Mount (02567-001) is included for easy, out-of-the-box installation. Remote zoom and focus let you adjust the lens via your VMS, while the integrated HDMI port supports local live viewing.

Video Analytics

AXIS Object Analytics (AOA) comes preinstalled on the camera for highly accurate detection, classification and counting of humans and vehicles within the scene, including types of vehicle such as cars, buses, trucks and bikes. As the video is analysed on-camera, alerts are generated more quickly for more effective incident response. Detected objects can be visualised on screen within colour-coded bounding boxes.

False alarms are drastically reduced thanks to the unit's Deep Learning CPU which uses AI-based algorithms to ignore irrelevant events such as small animals and falling leaves. Several virtual scenarios can be run simultaneously such as line crossing, object in area and occupancy in area for improved security and to develop actionable business insights.

This camera also supports other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (not included)
• AXIS Camera Station Software
• AXIS Camera Station NVRs
• Milestone XProtect video management software
• Milestone Arcules VSaaS

Example Use Cases

• Building perimeters and fences – Detect movement, identify unauthorised access attempts, trigger alerts for intrusion, monitor fence lines in real time, assist in incident review
• Industrial sites and warehouses – Track vehicle and personnel movement, monitor restricted zones, confirm delivery arrivals, ensure compliance with safety protocols, support investigations
• Transport hubs and depots – Monitor external walkways and entry points, count footfall, support emergency response planning, reduce loitering, track vehicle flow
• Public infrastructure and utilities – Detect trespassing, identify suspicious behaviour near critical assets, enable fast response to security breaches, support site-wide situational awareness
• Car parks and loading areas – Identify vehicle type, monitor entry/exit points, count vehicles crossing virtual lines, detect tailgating, track access to loading bays

Model variants

• Axis Q1728-LE box camera - 13mm wide lens (03210-001)
• Axis Q1728-LE box camera - 48mm tele lens (03211-001)

Included Accessories

• Camera
• Installation guide
• Owner authentication key
• Connector guard
• Cable gaskets
• AXIS TQ1003-E Wall Mount

Key technical features of the Axis Q1728-LE outdoor varifocal box camera
