Zoom the image with the mouse

| 0550-001

Axis Q1614 fixed indoor IP camera with HD 720 at 60 fps, true day/night, Lightfinder, PoE and SD card storage

Free delivery on mainland UK and most EU countries Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, an alternative model is the Axis Q1615 Mk III

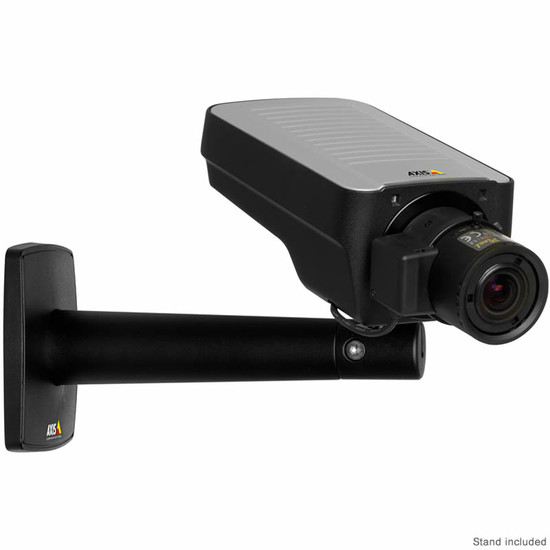

Overview of the 0550-001 Axis Q1614

High performance Axis Q1614 network camera with focus assistant, wide dynamic range, shock detection, video motion detection and two-way audio

The Axis Q1614 indoor network camera is a high-performance fixed CCTV camera, capturing video in HD 720p at up to 60 frames per second for high quality, high frame rate footage. With true day/night capability, this Axis IP camera can capture full colour images during daylight, automatically switching to monochrome image capture at night time for high quality 24/7 surveillance. Axis Lightfinder technology provides the Q1614 with enhanced low light performance, enabling the capture of colour images under low illumination. Easy mobile access to live view and playback via mobile apps is handy and convenient for business owners and managers on the move.

The Q1614 camera can record sound to complement video via two-way audio support which also enables verbal conversation through the camera when a microphone and speaker are added (not included). Installation is made easier by the Axis Q1614's level assistance feature, with a buzzer and flashing lights guiding the installation. An adjustable high sensitive shock detection function enables the camera to detect impact and alert the user, ideal for locations subject to vandalism.

Wide dynamic range enables the Q1614 to cope well with challenging lighting conditions by adapting contrast in scenes where both bright highlight and shadows exist simultaneously. CCTV monitoring using the Axis Q1614 IP camera is reliable and accurate due to intelligent video motion detection with audio and tamper detection. These features enable the camera to alert the user via email and trigger recording to SD card.

H.264 and Motion JPEG compression give the user flexibility with storage and bandwidth usage. Edge recording onto a MicroSD card (not included) maintains smooth, uninterrupted video footage in case of network interruption. Power over Ethernet (PoE) support makes installing the Q1614 quick and easy with reduced cabling costs and power and network connectivity are being fed through a single cable.

Please note: this camera does not come with a power supply, please select a PoE midspan from the above drop down menu if required.

Key features & benefits

  • HD 720p high quality video footage at 60 fps provides high frame rate for demanding CCTV requirements
  • The Q1614 offers 24/7 surveillance with an infrared cut filter enabling the camera to capture monochrome images at night
  • Two-way audio supports verbal interaction through the camera when a speaker and microphone are added (not included) and enables sound to be recorded to enhance video
  • Wide dynamic range (WDR) enables the camera to handle complex lighting scenes to produce high quality images in bright or dark zones
  • Axis Lightfinder technology gives the camera good low light capability, for high quality colour images in low illumination
  • Levelling and focus assistance with buzzer and flashing light makes installation quicker and easier
  • Shock detection sends an alarm to the user to alert if the camera has been hit, this enables quick action to be taken in the event of vandalism
  • Intelligent video motion detection enables the camera to detect sound, tampering attempts or activity and alerts the user via email for precise, reliable surveillance
  • Power over Ethernet reduces the cost of cabling in installation
  • H.264 compression enables efficient management of bandwidth and storage use with Motion JPEG as an alternative method for more robust footage
  • Data can be stored locally onto an SD card (not included) when an alarm is triggered, ensuring smooth, useful video data

Compatible recording platforms:

Typical applications

The Axis Q1614 network camera is ideal for demanding CCTV applications that require 24/7 high quality surveillance in busy areas such as casinos, banks, prisons and police stations, where a high frame rate is required for detailed event analysis.



  • Stand
  • Connector kit
  • ResiTorx20 tool to assist installation
  • Installation guide
  • Installation and management software CD
  • Windows decoder 1-user license


  • MicroSD card (please select from above drop down menu if required)
  • PoE midspan (please select from above drop down menu if required)
Back To Top

Key technical features of the 0550-001 Axis Q1614

Environment:indoor IP camera
Sensor:progressive scan RGB CMOS 1/3
Lens:IR corrected, CS-mount, megapixel resolution, varifocal 2.8~8 mm: 100°~34° view, F1.2
Power:8~28 V DC or Power over Ethernet IEEE 802.3af/802.3at type 1 class 3, max. 10.8 W
Memory:256 MB RAM, 128 MB Flash
Resolution:25/30 fps: 1280x960b to 160x90; 50/60 fps: 1280x720 to 160x90; Extended D1: 768x576 to 160x90
Compression:H.264 Main and Baseline Profiles (MPEG-4 Part 10/AVC), Motion JPEG
Bandwidth control:multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth VBR/CBR H.264
Frame rate:H.264 and Motion JPEG: extended D1 and 720p 25/30 fps: up to 30 fps with power line frequency 60 Hz, up to 25 fps with power line frequency 50 Hz 720p 50/60 fps: up to 60 fps with power line frequency 60 Hz, up to 50 fps with power line frequency 50 Hz
Day/night:automatically removed infrared cut-filter
Minimum illumination:extended D1 and 720p 25/30 fps: colour: 0.05 lux, F1.2, B/W: 0.008 lux, F1.2; with dynamic capture: colour: 0.4 lux, F1.2, B/W: 0.06 lux, F1.2 720p 50/60 fps: colour: 0.1 lux, F1.2, B/W: 0.02 lux, F1.2
Video overlay:text and image
Imaging:compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR-dynamic contrast, fine tuning of behaviour at low light, mirroring of images, rotation: 0°, 90°, 180°, 270° including Corridor Format
Viewing, detection & recording
Privacy masking:yes
Number of users:not given
Alarm detection:video motion detection, active tampering alarm, audio detection, support for AXIS Camera Application Platform enabling installation of additional applications, edge storage events, external input, shock detection
Alarm action:file upload: FTP, HTTP, network share and email, notification: email, HTTP and TCP, video and audio recording to edge storage, pre- and post-alarm video buffering, external output activation; play audio clip
Pre-/post-alarm buffer:yes
On-camera recording:microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
Recording software supported:Axis Camera Station
Power:8~28 V DC or Power over Ethernet IEEE 802.3af/802.3at type 1 Class 3, max. 10.8 W
Audio:external microphone, input or line input, line output, external balanced/unbalanced microphone or line input, line output

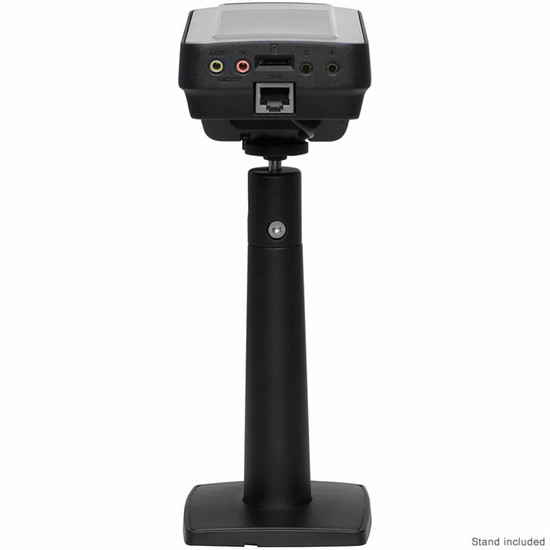

Other:3.5 mm mic/line in, 3.5 mm line out, RS485/422, DC input, terminal block for two configurable inputs/outputs (12 V DC output, max. load 50 mA)
Dimensions:L:136mm x W:82mm x D:58mm
Weight:3.52kg (net)
Warranty:3 years
Mounting methods:wall, stand, pendant device
Operating temperatures:0 °C to 50 °C (32 °F to 122 °F)
Power consumption:8~28 V DC or Power over Ethernet IEEE 802.3af/802.3at type 1 Class 3, max. 10.8 W
Dynamic DNS:yes
Protocols supported:IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Security:password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb, network access control, digest authentication, user access log
ONVIF compliant:yes, profile S
